Ericsson RX8000 - Setup: Enable Audio DTMF Detection

Using the Equipment
EN/LZT 790 0005 R7A
3-323
3.17.5.4 Setup
3.17.5.4.1 Setup: Enable Audio DTMF detection
Cue Tone detection must be enabled for the correct audio service, see section
3.14.4.4.12 Audio Decoder > Cue Tone Detection.

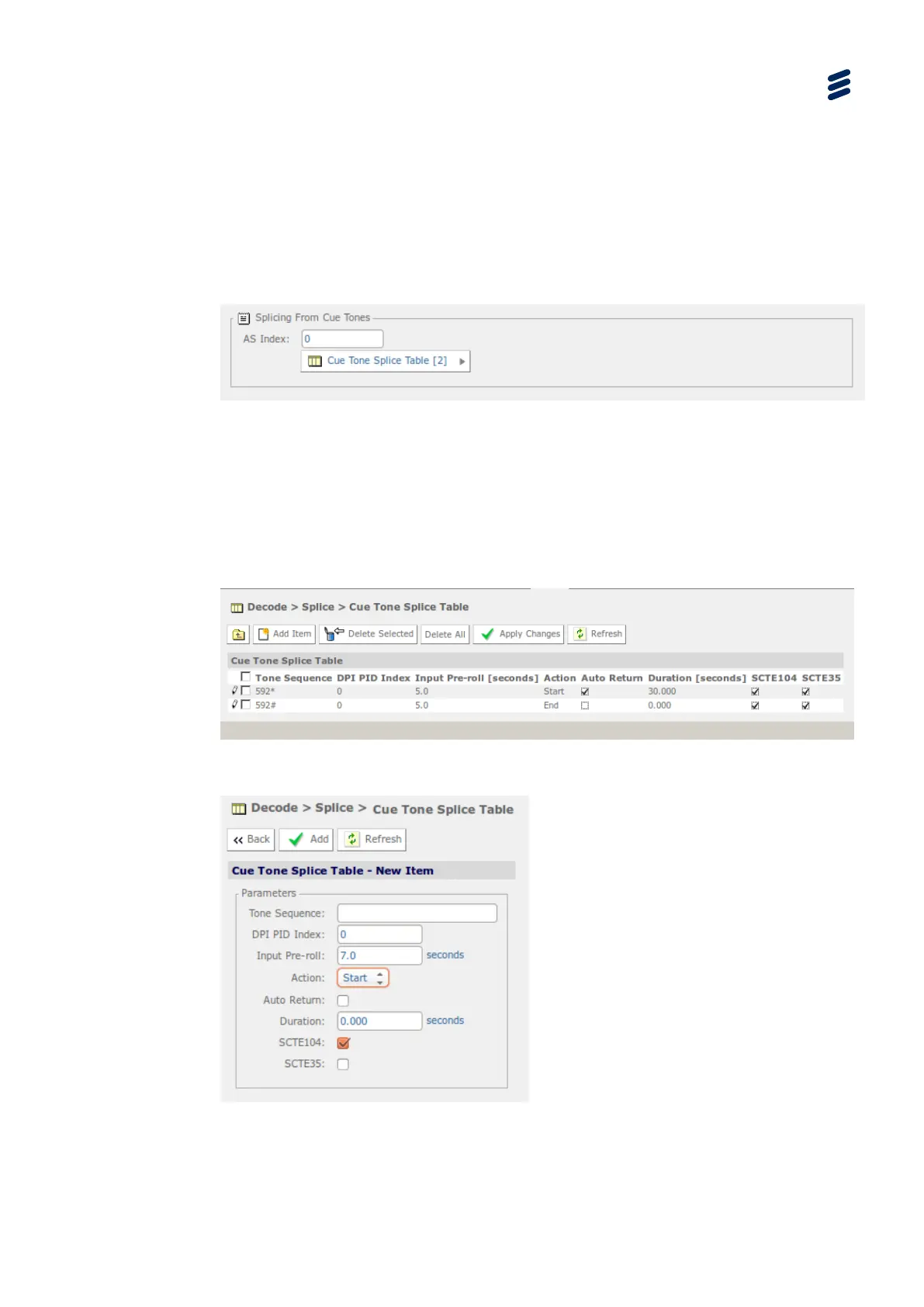

3.17.5.4.2 Setup: Decode > Splice > Splicing From Cue Tones
• AS Index – The AS Index value to be inserted in all SCTE 104 / SCTE 35
messages inserted as a result of a Cue Tone sequence detection and match.
3.17.5.4.3 Setup: Decode > Splice > Splicing From Cue Tones > Cue Tone Splice Table
This table contains the configuration for interpreting tone sequences. The receiver is
able to store 16 possible configurations. Each tone sequence must be unique but
can be used to configure SCTE 104 and SCTE 35.
3.17.5.4.3.1 Setup: Adding a Configuration – ‘Add Item’
• Tone Sequence – A sequence of 4 characters representing the DTMF signal.
Valid characters are a-d, 0-9 # or *
