Using the Equipment
3-10
EN/LZT 790 0005 R7A

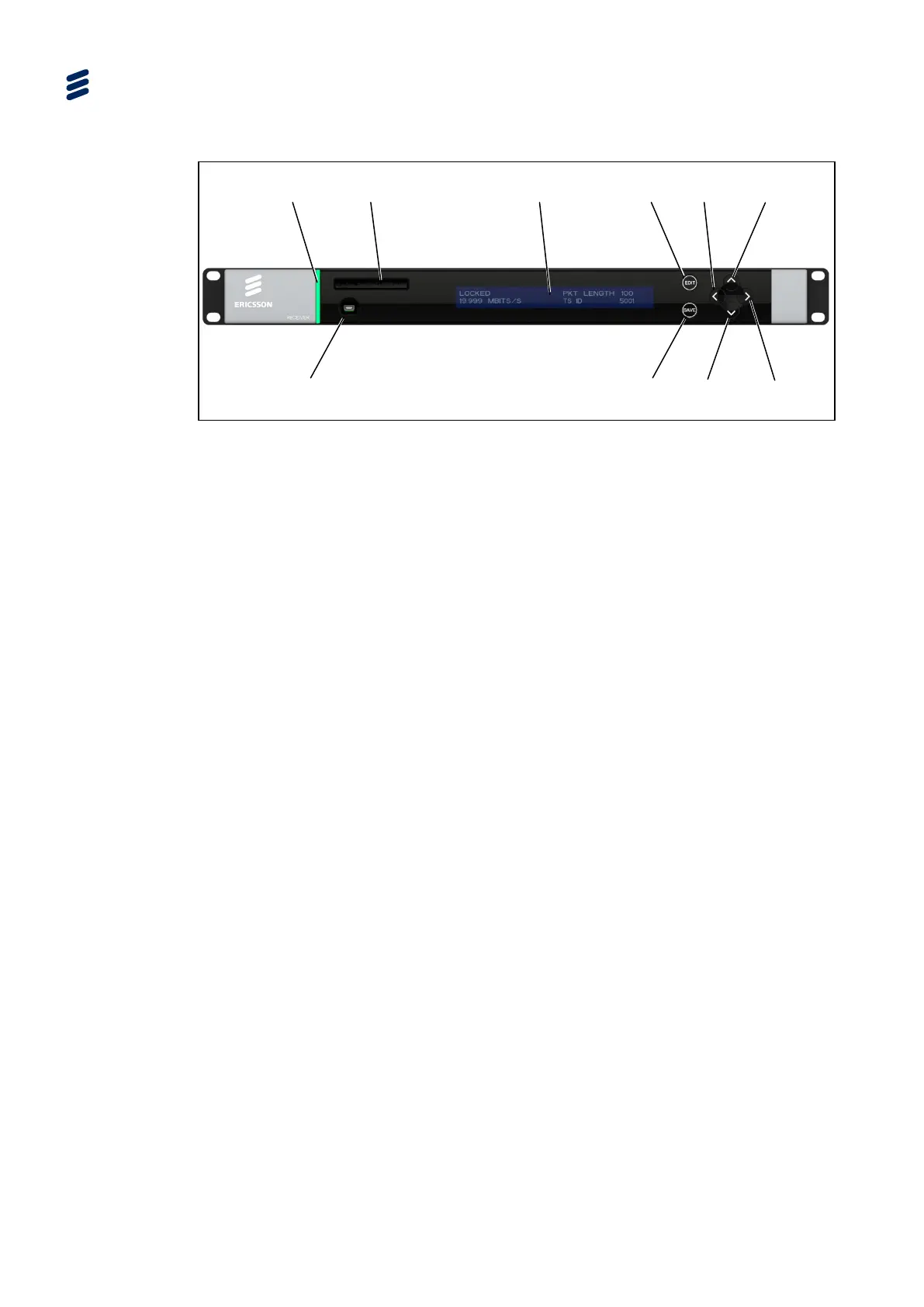

Figure 3.1 Front Panel Controls (RX8200)
3.3.1 USB Connector
This connector is for factory/service use only (not available on the RX8305).
3.3.2 Status LED
This multi-colored LED provides a visual indication of the summary status of the
unit. The LED can be any one of three colors:
• Red (CRITICAL Error) – Indicates that the unit has lost lock with the Transport
Stream.
• Amber (MAJOR or MINOR Error) – Indicates that the unit is locked to a
Transport Stream but an error has been detected signifying incorrect conditions
or system functioning.
• Green (NO Errors) – Indicates that the unit is locked to a Transport Stream and
correct conditions and system functioning are detected.
3.3.3 LCD
A 2-line x 40-character, back-lit, dot-matrix, Liquid Crystal Display (LCD) provides
menus and settings that vary depending on which IRD model is being used and
which options have been enabled through the purchase of a suitable license.
All menus are numbered to aid navigation.
3.3.4 Arrow Pushbuttons (Up, Down, Left, Right)
Four arrow pushbuttons (or keys) are used to navigate through the front panel
menus. A pushbutton will be illuminated to indicate that a further choice or action is
available by pressing that pushbutton.
RIGHT DOWN SAVE
USB Connector
(Servicing Only)
Status LED CA Slot LCD
UP
LEFT
EDIT
