Using the Equipment

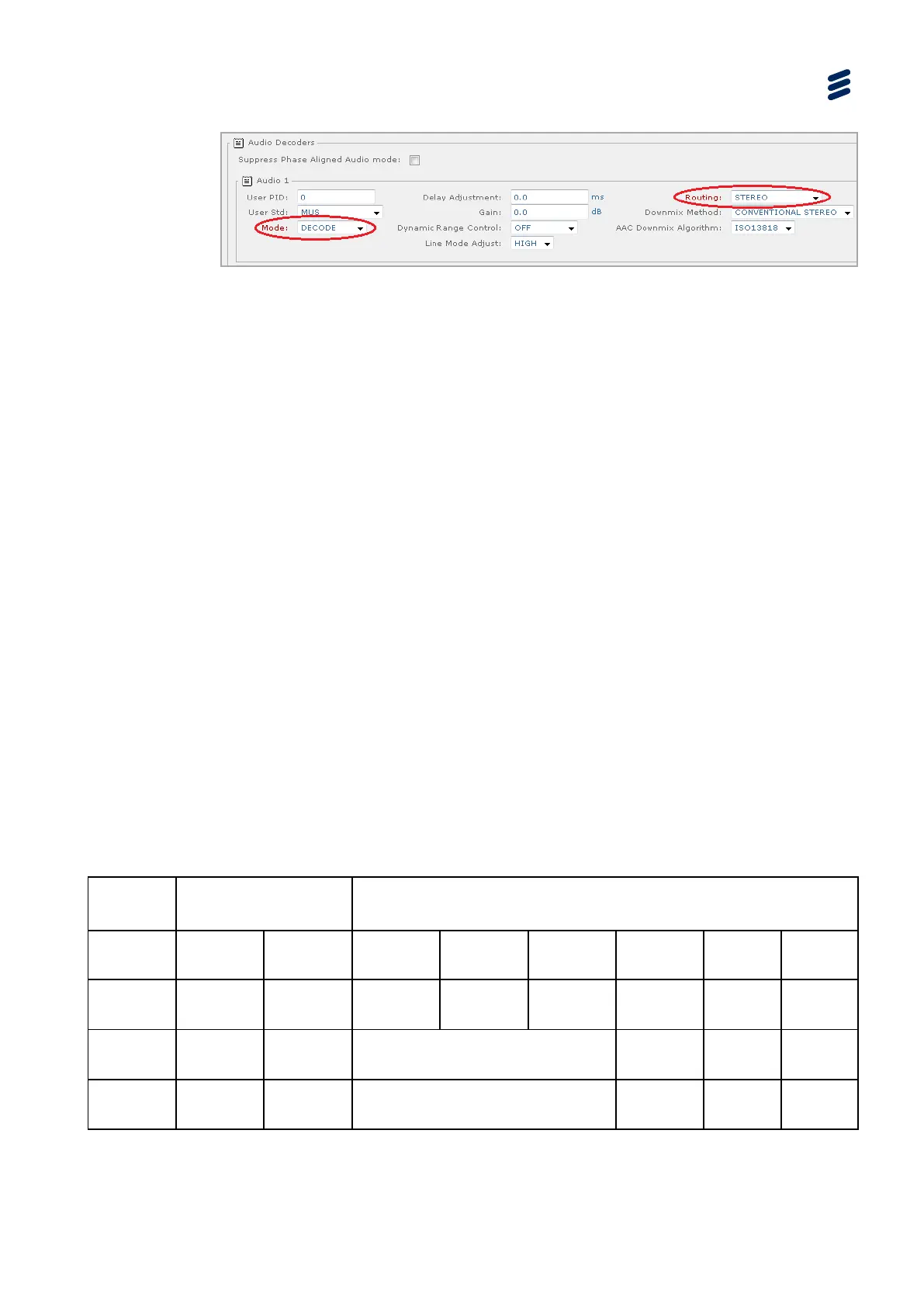

Figure 3.119 Audio Decoders > Audio 1 Windows
Under the Decode > Audio Output Routing section, the user is presented with the
following options for both the analogue outputs and the SDI embedded outputs:
• Audio 1, STEREO.
• Audio 2, STEREO.
• Audio 3, STEREO.
• Audio 4, STEREO.
• Audio 5, STEREO.
• Audio 6, STEREO.
Note that in PAA mode, Groups 1 and 2 under the Decode > Audio Output
Routing > SDI Embedding section will be changed to read-only fields that cannot
be modified by the user (Groups 3 and 4 will also be changed in the case of Dual
PAA). These will be forced to default routing values.
3.15.5.5.1 Phase Aligned Audio
For a single PAA instance, up to 8 channels are supported by the RX8000. Six
audio decoders are exposed to the user with Audio Decoders 1-4 reserved for PAA.
It should be noted that with the RX8200, where 6 Channel PAA is being decoded,
Audio Decoder 4 will become available to the user for configuration. This was
originally unavailable on the RX1290.
Table 3.36 Available Output Channels on RX82xx for PAA
RX82xx
Disable 4AUD
license
Enable 4AUD license
Audio
Decoder
1 2 1 2 3 4 5 6
Physical
decoder
Advanced Advanced Advanced Advanced Advanced Advanced Basic Basic
Output
Channels
N/A N/A 6 channels across 3 decoders 2 2 2
Channel
Name
N/A N/A PAA L R
(Stereo)
L R
(Stereo)
L R
(Stereo)
