Ericsson RX8000 - Control Interface Alarms; Input Alarms

Using the Equipment
3-42
EN/LZT 790 0005 R7A

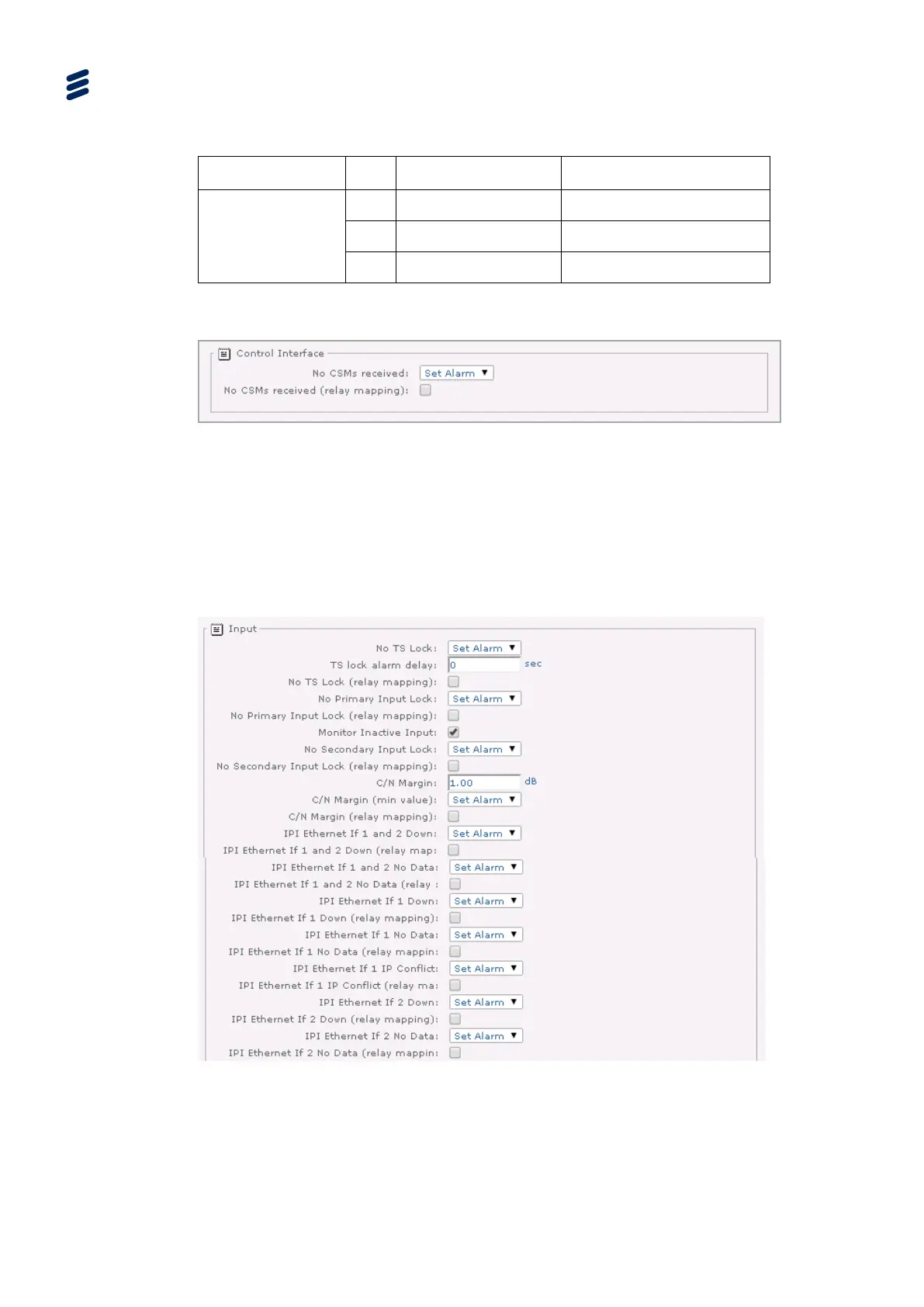

Table 3.5 Relay Assignment When Configured to Revised Mode
Summary Alarm Pin Assignment Alarm Behavior
Relay 1 4 Common -
8 Normally closed
Closed on Alarm
9 Normally open Open on Alarm
3.9.3.3 Control Interface Alarms
Figure 3.25 Alarm settings for Control Interface section
• No CSMs Received – Select the alarm condition from the drop-down menu to
be activated when no CSM packets are received (Set Alarm /No Alarm).
• No CSMs Received (relay mapping) – Place a check mark in the box to
activate relay mapping when no CSM packets are received.
3.9.3.4 Input Alarms
