Using the Equipment

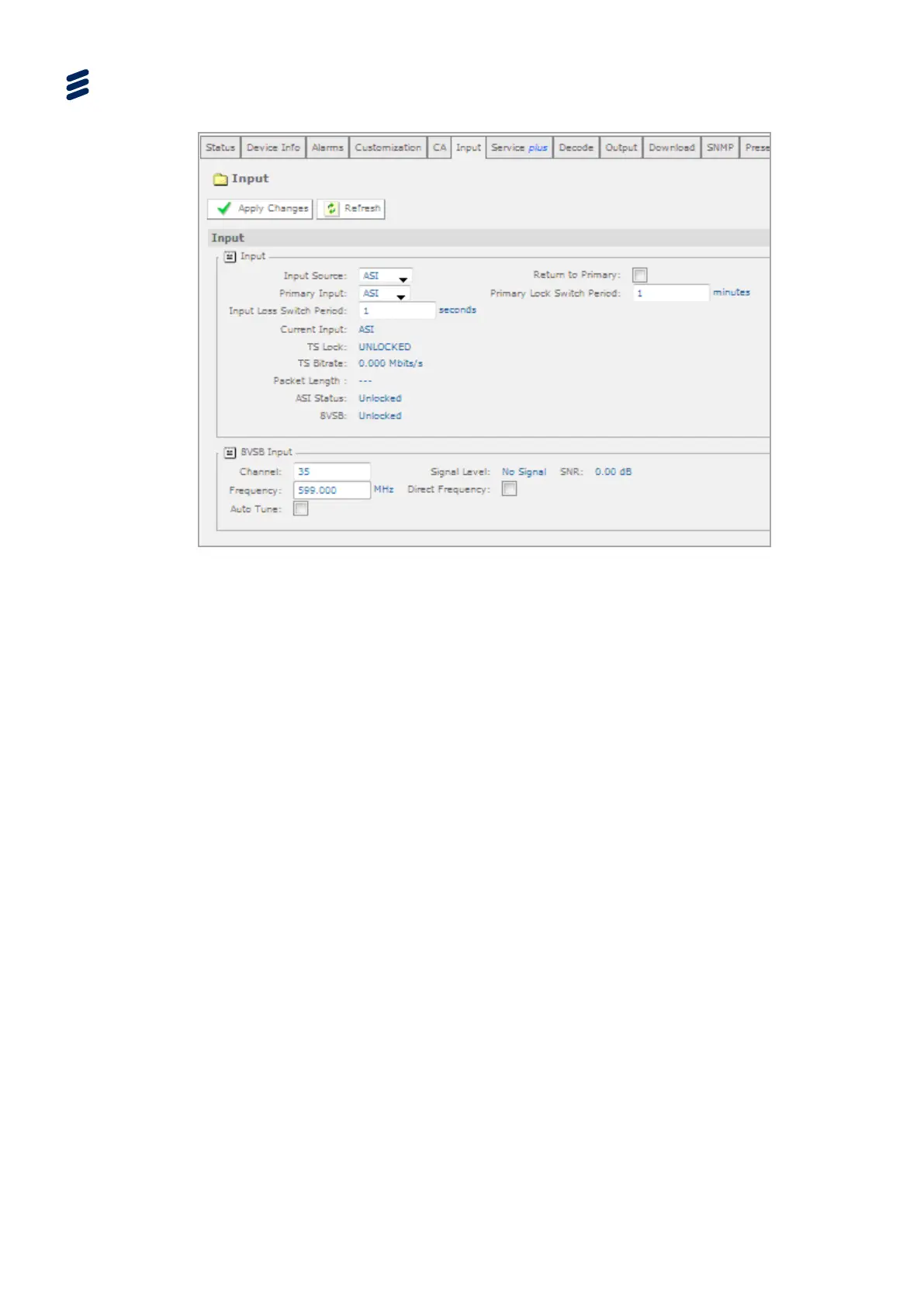

Figure 3.63 Input (ATSC 8 VSB Digital Terrestrial Input) Web Page
8VSB Input
Tuning to the 8VSB signal is achieved via the Input tab on the IRD’s web browser.
Parameters
• Channel – The user can tune to the required signal by entering the ATSC
channel number.
• Frequency – By selecting the Direct Frequency tick box the user can input the
frequency of the signal with reference to the 8VSB pilot frequency.
• Auto Tune – The auto tune functionality allows the unit to tune to a service
based on a scan of the current bandplan and the channel number.
• Signal Level – This parameter will indicate if the receiver is locked to the 8VSB
signal or not. To further indicate the health status of the incoming the signal the
receiver will provide an estimation of the Signal to Noise ratio of the 8VSB
signal.
3.10.8.7 Front Panel Setup
3.10.8.7.1 8VSB
This menu enables the user to tune to the ATSC 8VSB digital terrestrial signal. The
user can select the desired channel number to tune to. To access this menu from
the above menu, press the (Down) key.
