Using the Equipment
• MAC Address – Displays the MAC address of the 1
st
/2
nd
interface of the IP
Output Card.
• Gateway – Enables input of the gateway address.
• Src UDP Port – Enables input of the source User Datagram Protocol Port for
the Transport Stream packets sent from the 1
st
/2
nd
interface of the IP Output
Card.
• IP Dest – Enables input of the IP destination address, where the Transport
Stream packets will be sent to.
• Dest UDP Port – Enables input of the destination User Datagram Protocol port.
• QoS mode – Defines how to set the DSCP field of the IP header in the IP
packets, which defines the Quality of Service.
- TOS – Type of service.
- DSCP – Differentiated services Code Point.
• QoS value – Sets the priority of the IP packets based on the QoS mode.
- If QoS mode is TOS – Priority can be selected between 0 and 7.
- If QoS mode is DSCP – The whole DSCP field can be set. The type of Per-
Hop Behavior and in addition the Class Pairs can be selected. There are four
types of Per-Hop Behaviors:
xxi. Default PHB (default).
xxii. Class selector PHB (CSx) – Similar to TOS mode. Where x is Class
Pair.
xxiii. Expedited Forwarding (EFxx) – Where xx is Class Pair.
xxiv. Assured Forwarding (AFxx) – Where xx is Class Pair.
• Time to Live – The TTL value of the IP packets can be defined.
• Link Status – Display whether the link is up and the speed of the link.
• Custom Src IP – Enables input of the custom source Internet Protocol address.
3.18.4.6.4 Common

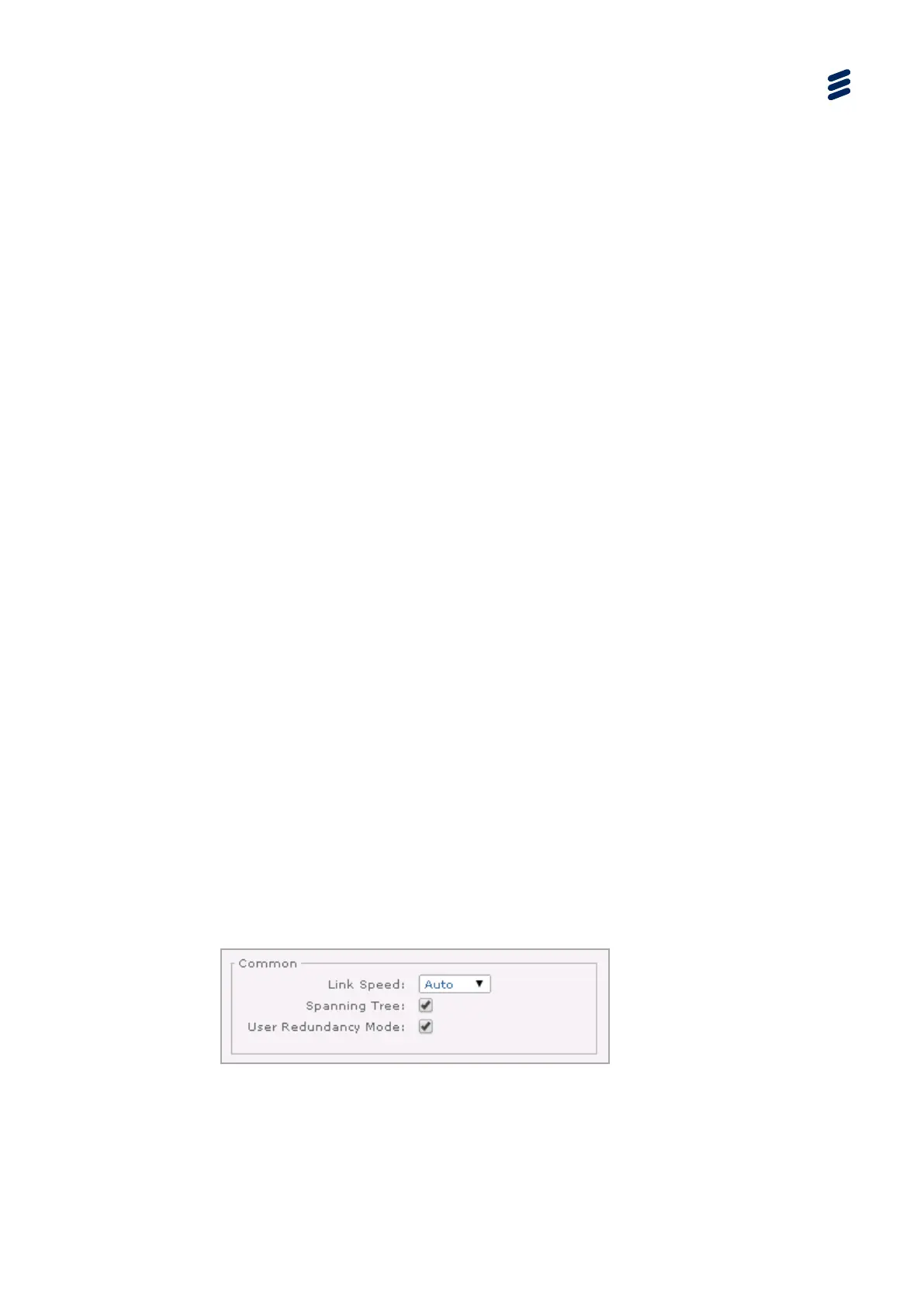

Figure 3.161 Output Tab > Common Cection
• Link Speed – Enables the selection of the IP Output Card link configuration.
