Using the Equipment
EN/LZT 790 0005 R7A
3-291
- ENABLE – VIDEO AR – Enables insertion of WSS in to the video output
signal where the WSS data is sourced from the Aspect Ratio coded in the
video sequence header.
• WSS-AFD Enable – Enabling this option allows the WSS waveform to carry the
AFD value when WSS Insertion is enabled.
3.17.1.6.11 ITS
Vertical Interval Test Signal (VITS) are a group of analog test signals inserted in the
composite video output. They allow performance measurements or receiver
corrections to be made.

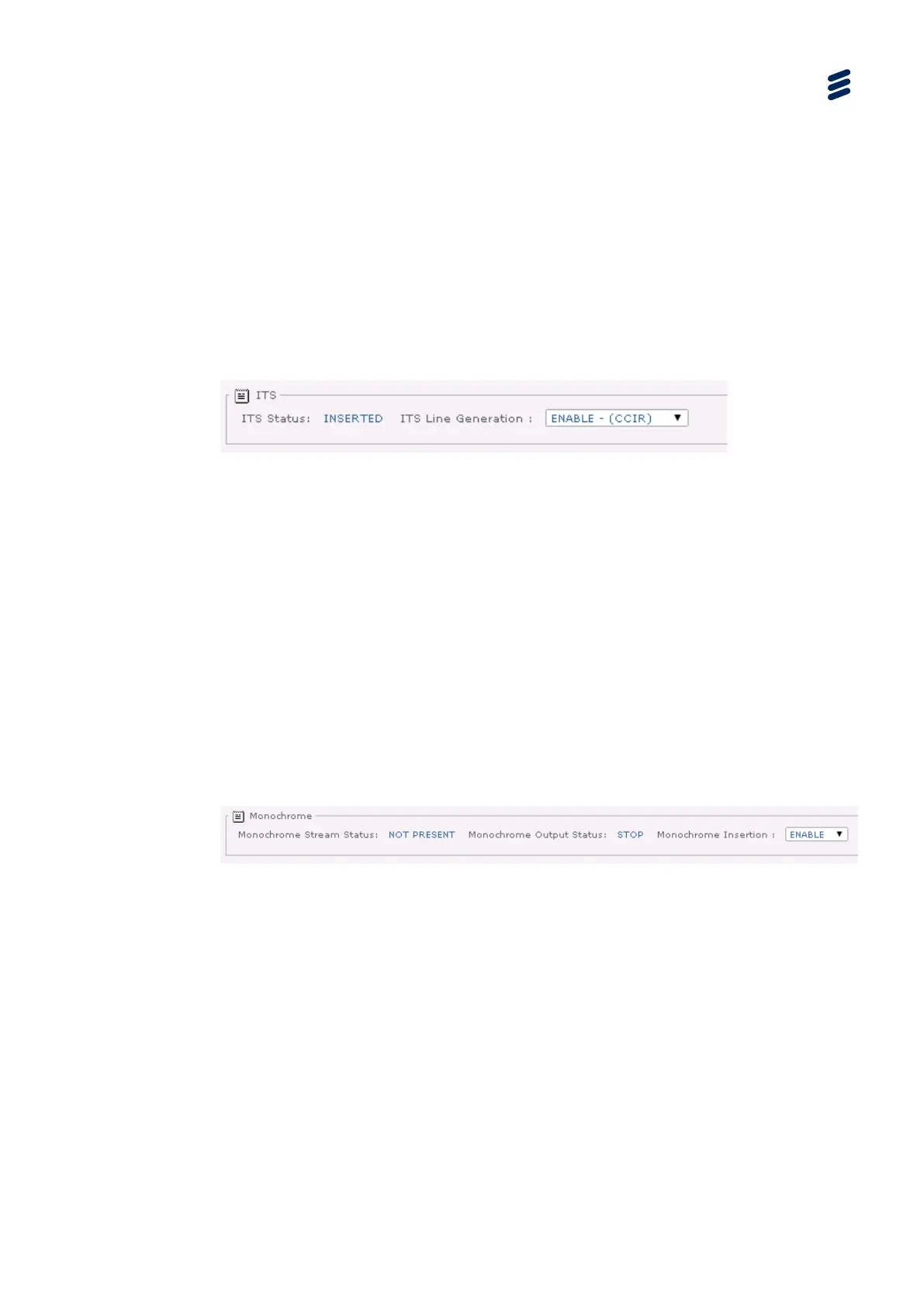

Figure 3.139 Decode > VBI-VANC > ITS
• ITS Status – Displays the ITS status inserted in to the VBI on the output.
• ITS Line Generation – Enables or disables the insertion of VITS in to the video
output signal. The following options are available:
- DISABLE
- ENABLE-(CCIR)
- ENABLE-(FCC/UK).
3.17.1.6.12 Monochrome Samples
This provides the user with EN301 775 transparent mode data (4:2:2) samples,
known as monochrome sample data. This data is carried as PES data marked by
the descriptor tag 0x45.
Figure 3.140 Decode > VBI-VANC > Monochrome
• Monochrome Stream Status – Displays the presence of Monochrome data in
the incoming VBI PES stream.
• Monochrome Output Status – Displays the presence of Monochrome data in
the VBI space of the output video.
• Monochrome Insertion – Enables or disables insertion of Monochrome data in
to the VBI of the output signal.
