- Auto Detect: The unit will attempt to judge the SI type based upon the
Transport Stream. Auto mode may fail to correctly navigate the SI when the
SI has PIDS assigned to some of the private table PIDs for either ATSC or
DVB.
• Detected SI Mode – Displays the SI mode detected from currently extracted SI
tables. This will be DVB, ATSC or Unknown.
3.13 Video Selection and Control
All video aspects of the RX8000 can be controlled from the Decode web tab. The
basic selection and status information can be found under the Video section of the
main Decode tab.
More advanced features can be found under the Advanced sub page.
3.13.1 Video Configuration

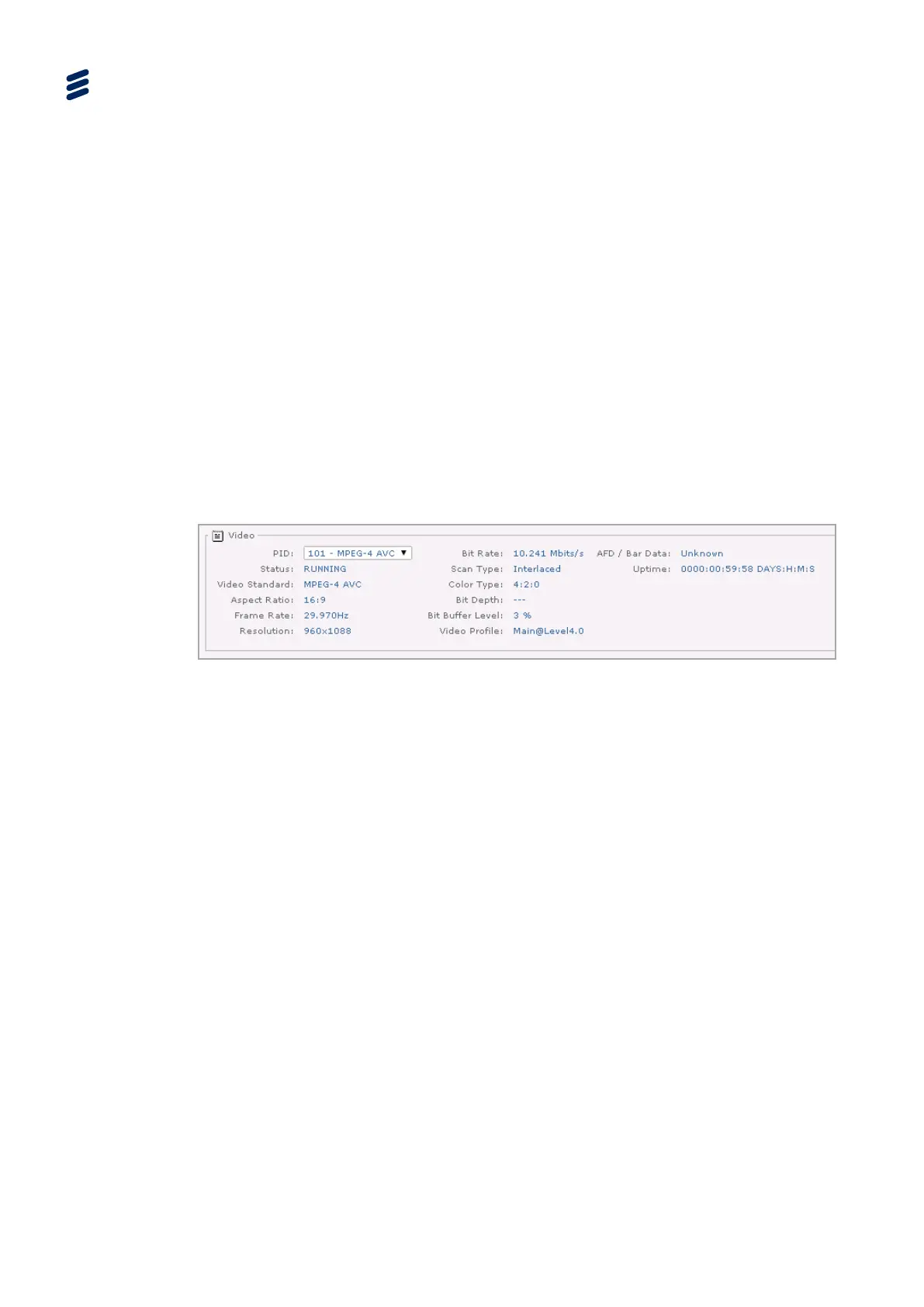

Figure 3.97 Video Configuration Under the Decode Web Page
3.13.1.1 Video Component Selection and Status
• PID – Enables the selection of the video component from the component list
provided by the drop-down menu. By default this is the video associated for the
selected Decode Service. The component list will comprise of the following:
- NO SELECTION – An entry in the list that turns off component selection for
the video.
- nnn xxxx – A list of PID numbers (nnn) found with the video descriptor tag
and its associated video coding standard (xxxx), i.e. MPEG-2, MPEG-4 ,
JPEG2000 or HEVC.
- nnn xxxx USER – Allows selection of the video User PID (nnn) and video
coding standard (xxxx) that have been specified by the User PID and User
Std fields of the Advanced sub page respectively.
Note: Switching between streams where the same video PID is used but has a
different video coding standard is not recommended.
