Using the Equipment
Embedded Audio is encapsulated in to the SDI output signal and can provide up to
16 audio channels (8 pairs). The Embedded Audio is carried as AES3 digital audio.
All RX8000 variants support this feature and no extra hardware options are required.

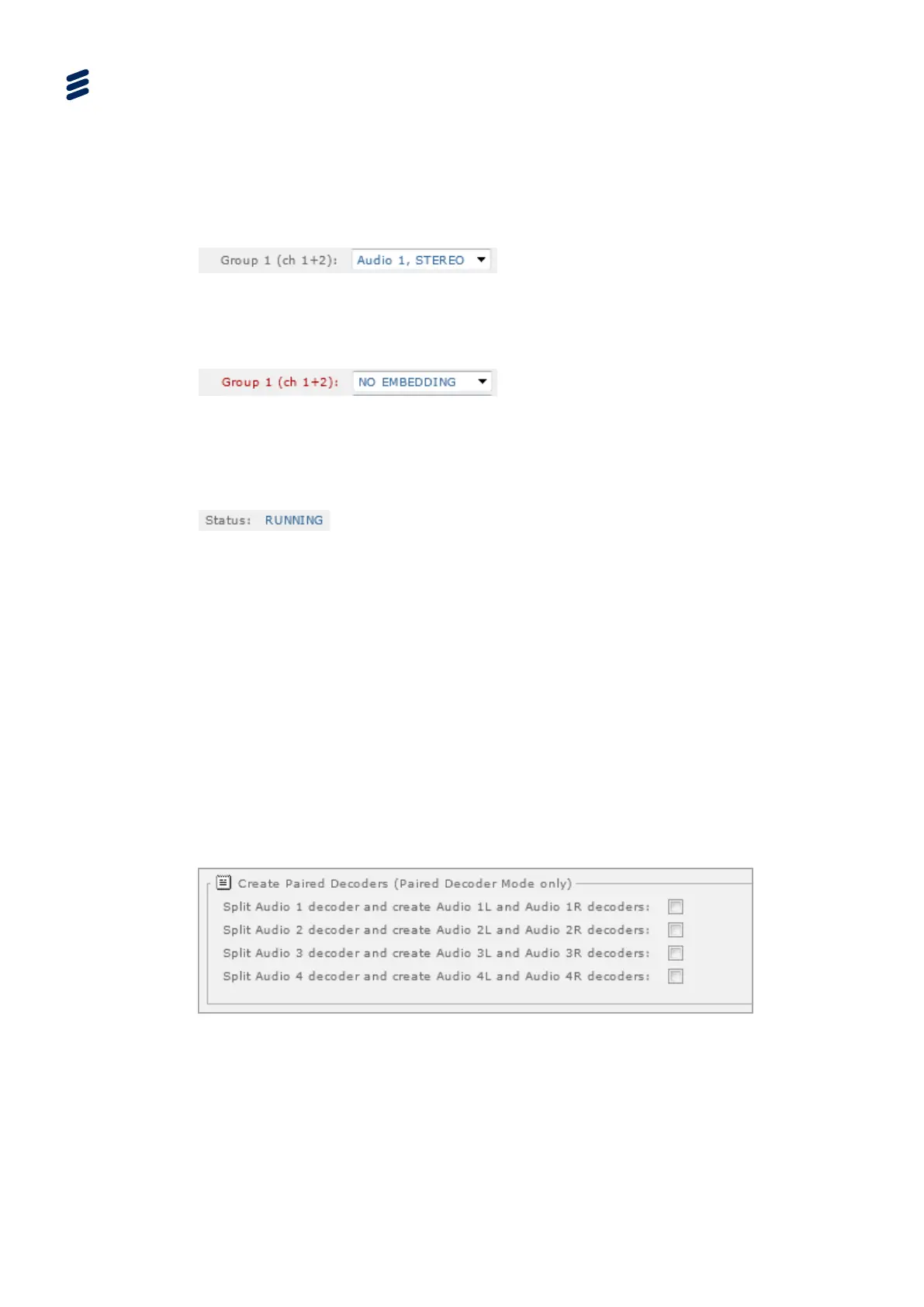

3.14.4.6.1 SDI Embedding > Group Source
This field maps an Embedded Audio group to the output of one the Audio Decoders
available. The Audio Decoders available will vary depending on the Channel
Configuration mode selected.
The NO EMBEDDING option allows the user to stop any embedding of audio to the
Embedded Audio group.
3.14.4.6.2 SDI Embedding > Status
This is a read-only field that reports the Audio Decoder status. It reflects the Audio
Decoder Status reported in the main Decode page and confirms that the audio is
correctly being routed to the Embedded Audio group.
• RUNNING – The Audio Decoder is successfully decoding.
• STOPPED – The Audio Decoder is not active.
• ERROR – The Audio Decoder is experiencing errors during decode.
• UNLICENSED – The Audio Decoder cannot decode the audio format because
the unit does not have the appropriate license or the audio format is not
supported.
• --- – Nothing is being routed to the SDI embedded group.
3.14.4.7 Decode > Audio Output Routing > Create Paired Decoders
Figure 3.116 Decode > Audio Output Routing > Create Paired Decoders Window
This section is only applicable when the Channel Configuration is set to Paired
Decoder Mode. The number of decoders available for Paired Decoder Mode will
depend whether the following license options are enabled:
• RX8200/SWO/4AUD
