TX1320 M4 Upgrade and Maintenance Manual 157
Hard disk drives (HDD) and solid state drives (SSD)
Example: Connecting an HDD backplane (backplane 2)

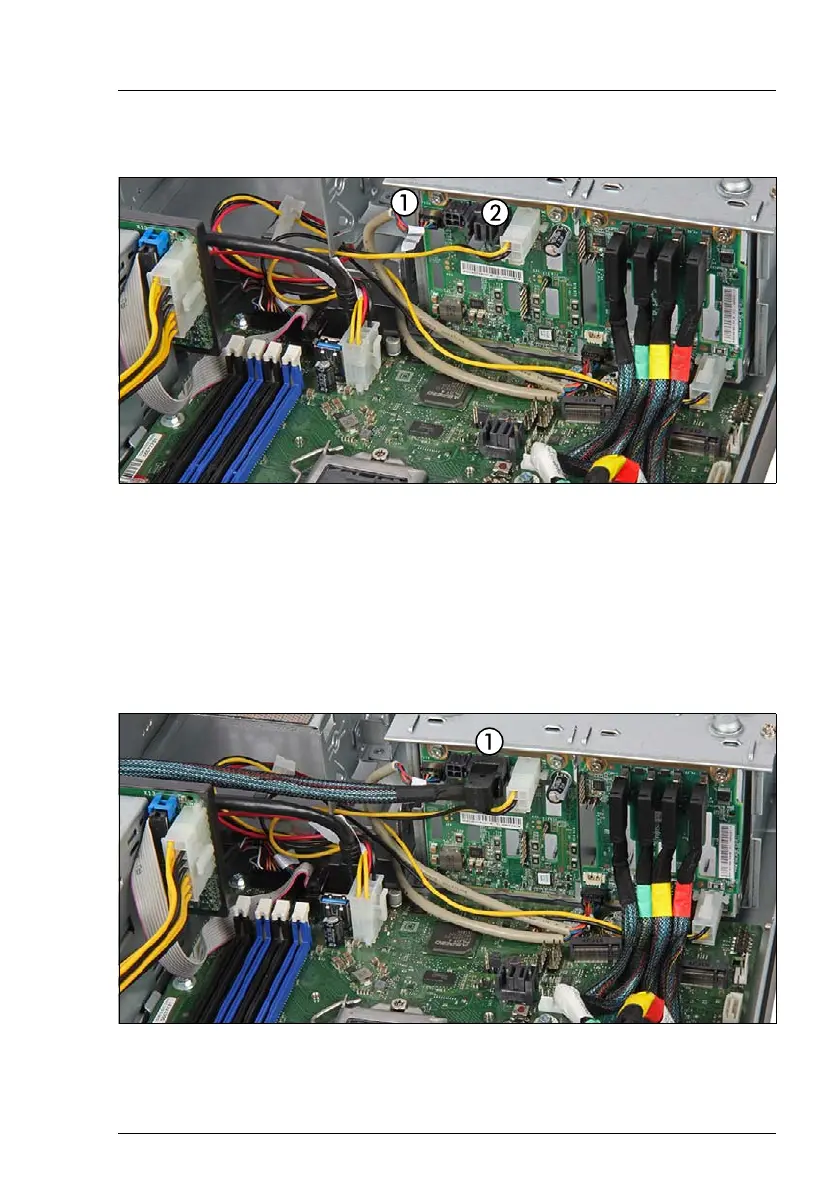

Figure 69: Example: Connecting cables - OOB and power to backplane 2
Ê Connect the cables to the backplane:
Ê If applicable, place the free connectors in a empty bay.
Figure 70: Example: Connecting cables - SAS cable to backplane 2
Ê Connect the angled connector of the SAS cable to HDD backplane 2 (1).
1 If applicable, OOB cable
2 Power cable
