Removing the SAS expander board
▶
Remove the SAS expander board holder, see "Removing the SAS
expander board holder" on page
312.

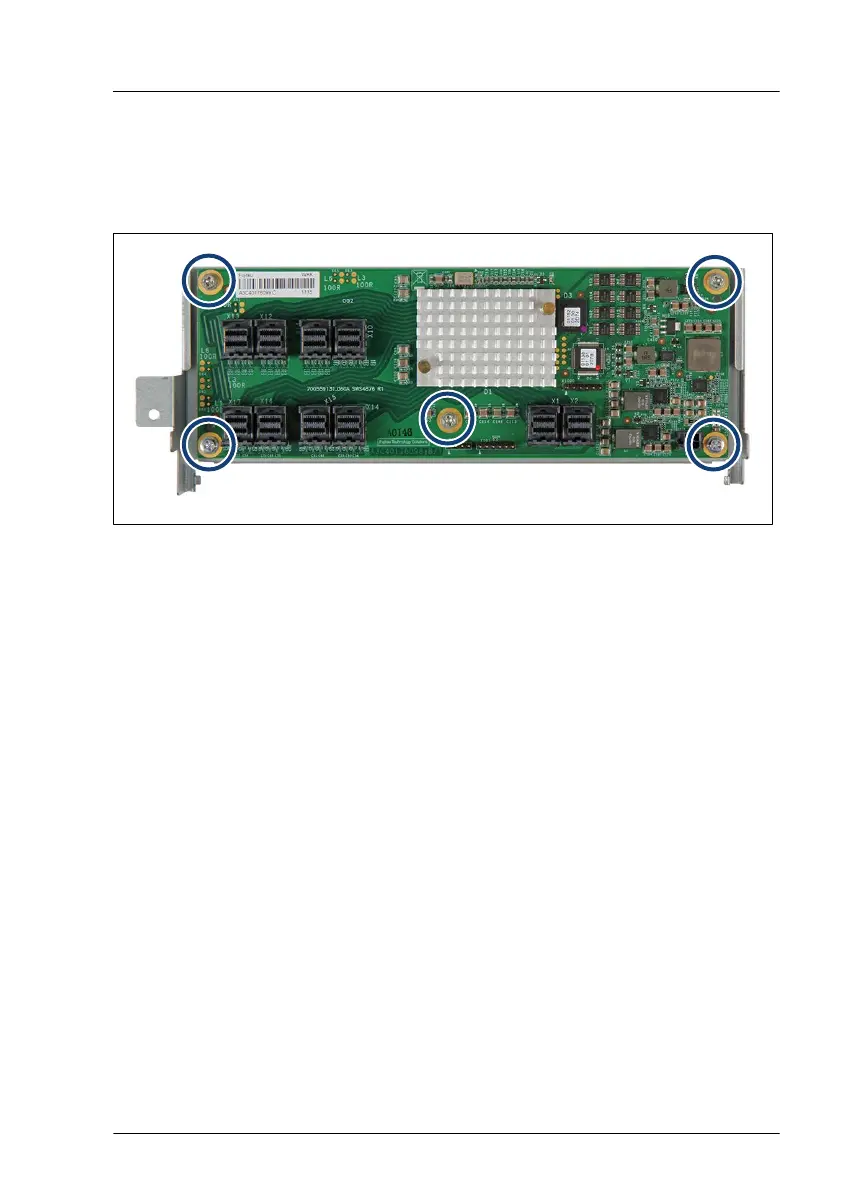

Figure 155: Removing the screws of the SAS expander board
▶
Remove the five screws (see circles).
▶
Remove the SAS expander board from the SAS expander board holder
.
Hard disk drive (HDD) / solid state disk (SSD)
TX2550 M5 Upgrade and Maintenance Manual 259
