Installing the SAS expander board

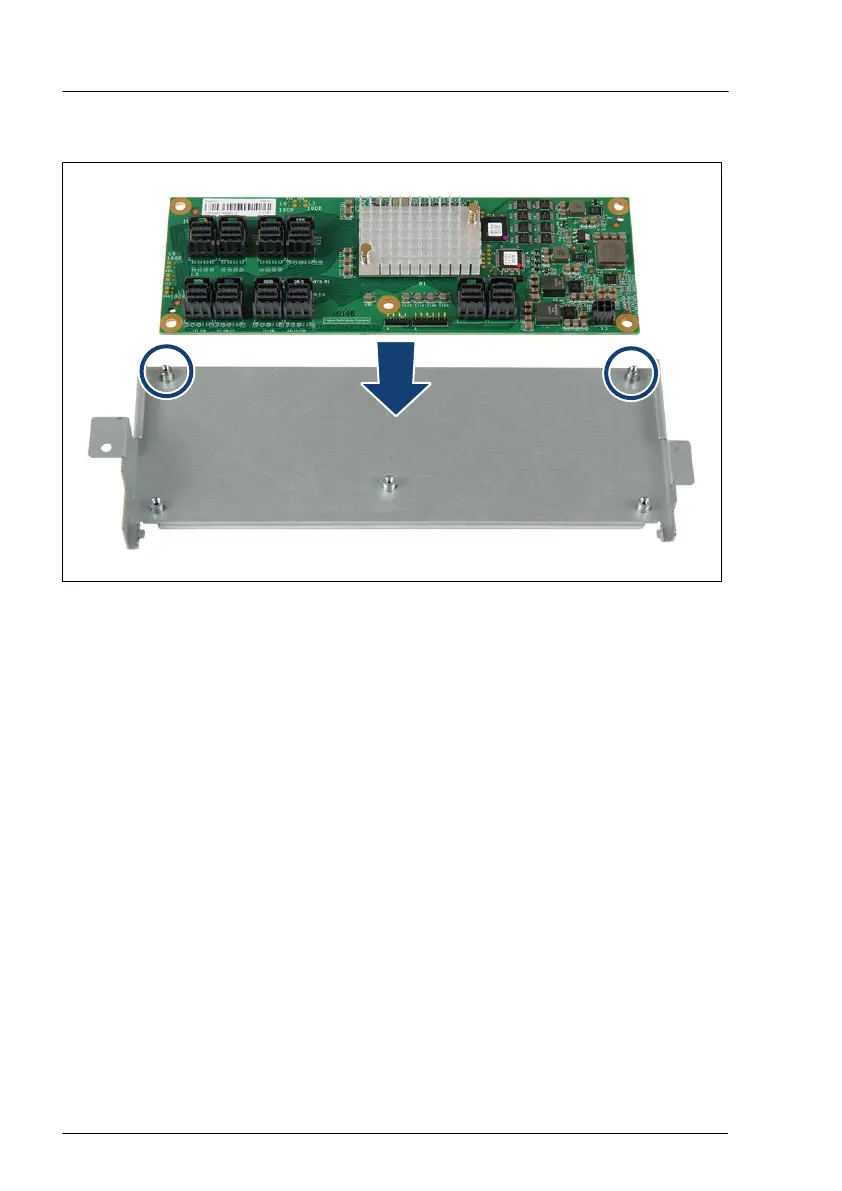

Figure 156: Installing the SAS expander board
▶
Position the SAS expander board on the SAS expander board holder.
▶
Ensure that the SAS expander board is properly fitted on both centering
bolts (see circles).
▶
Fasten the SAS expander board to the SAS expander board holder with the
five screws (see
Figure 155).
▶
Install the SAS expander board holder, see "Installing the SAS expander
board holder" on page 308.
Concluding steps
▶
Install the fan bridge, see "Handling the fan bridge" on page 92.
▶
"Installing the system air duct" on page 68.
▶
"Reassembling" on page 68.
▶
"Connecting the power cord" on page 82.
▶
"Switching on the server" on page 83.
Hard disk drive (HDD) / solid state disk (SSD)
