Fujitsu PRIMERGY TX2550 M5

Example: Configuration with two PRAID EP540e

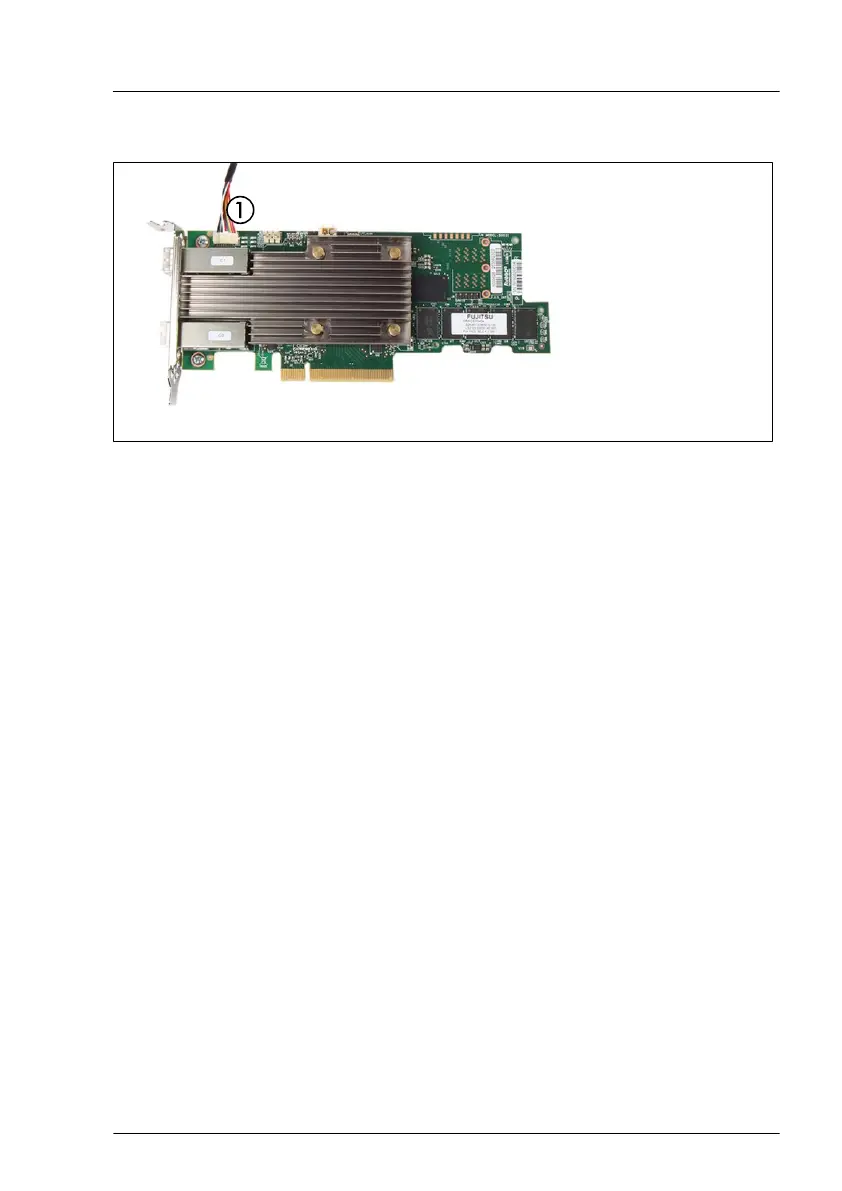

Figure 230: Connecting FBU adapter cable - PRAID EP540e
▶
If applicable, connect the FBU adapter cable (1).
Expansion cards and backup units
TX2550 M5 Upgrade and Maintenance Manual 355
