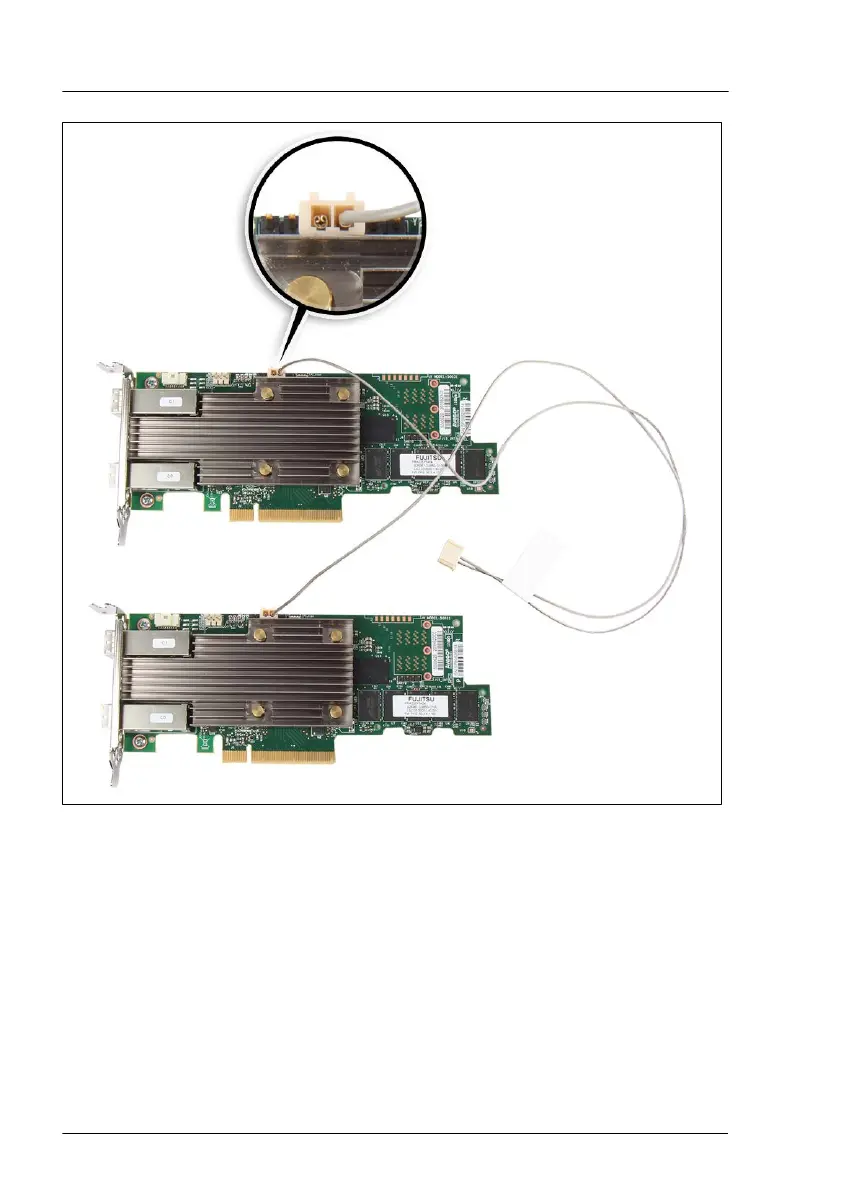

Figure 231: Connecting HDD LED cable - PRAID EP540e
▶
Connect the HDD LED cable to the two PRAID EP540e.
▶
Install one PRAID EP540e into slot 8.
▶
Install one PRAID EP540e into slot 9.
Expansion cards and backup units
356 Upgrade and Maintenance Manual TX2550 M5
