Removing the ultraslim ODD adapter
Remove the ultraslim ODD adapter, see "Removing an accessible drive" on
page
441.
Removing the ultraslim ODD from the ultraslim ODD adapter

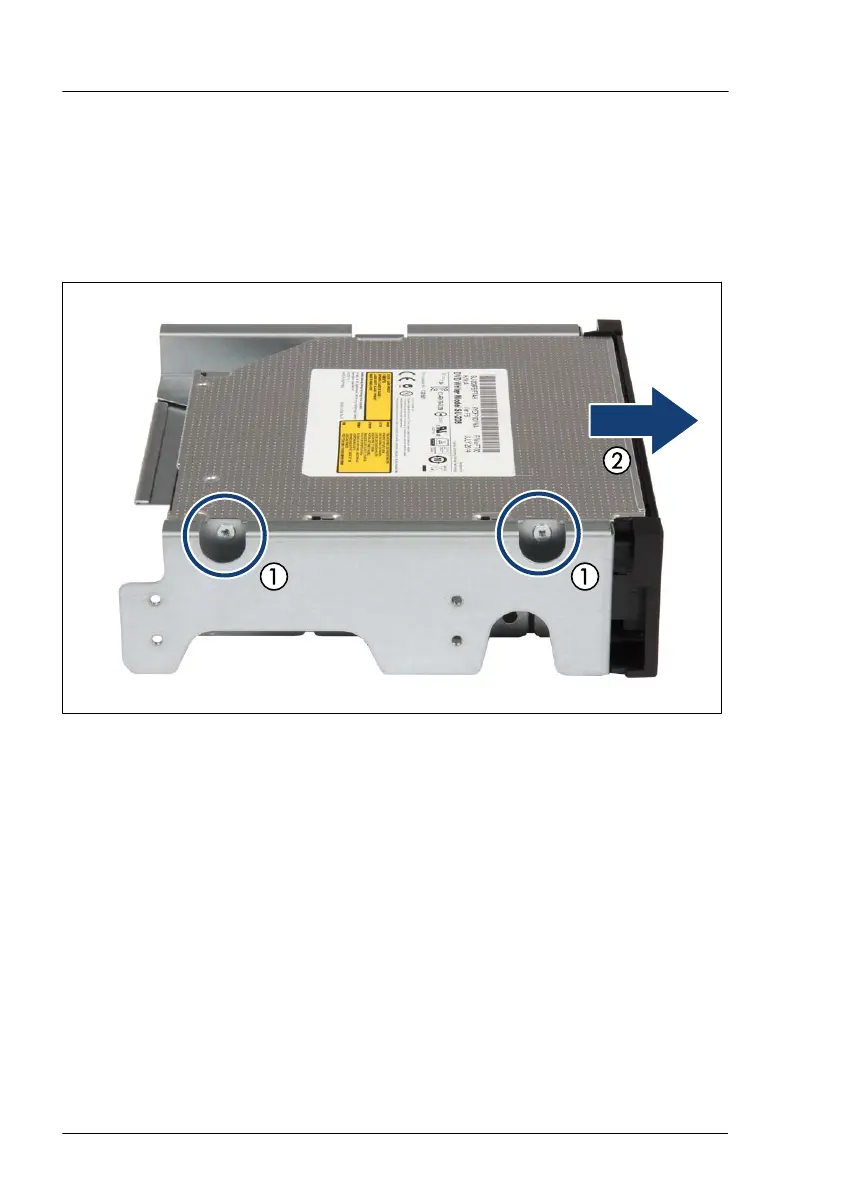

Figure 299: Removing the ultraslim ODD from the ultraslim ODD adapter
Remove the two screws (1).
Remove the ultraslim ODD (2).
If the removed ultraslim ODD is not to be replaced by a new drive:
Insert the ultraslim ODD dummy cover (see Figure 296).
Installing the ultraslim ODD adapter
Install the ultraslim ODD adapter
, see "Installing an accessible drive" on
page 435.
Accessible drives
460 Upgrade and Maintenance Manual TX2550 M5
