8.5 Converting Input Values (Scaling Function)
131
8
Chapter 8 Utility Functions
However, you may need to switch the vertical axis (voltage axis) range to suit
actual input values.
For example, to display ±0.2 V at full scale, set the vertical display to 20 mV per
division (the instrument's 20 mV/div range)
For the rated capacity and rated output, consult the calibration record of the sen-
sor to be used. Set as follows:
With scaling, signals from the sensor are
acquired as current values.
A/B cursors and gauges are displayed
and printed with current (Ampere) val-
ues.
See: Gauge: (
 p.96)
Cursor A/B value: (
 p.91)

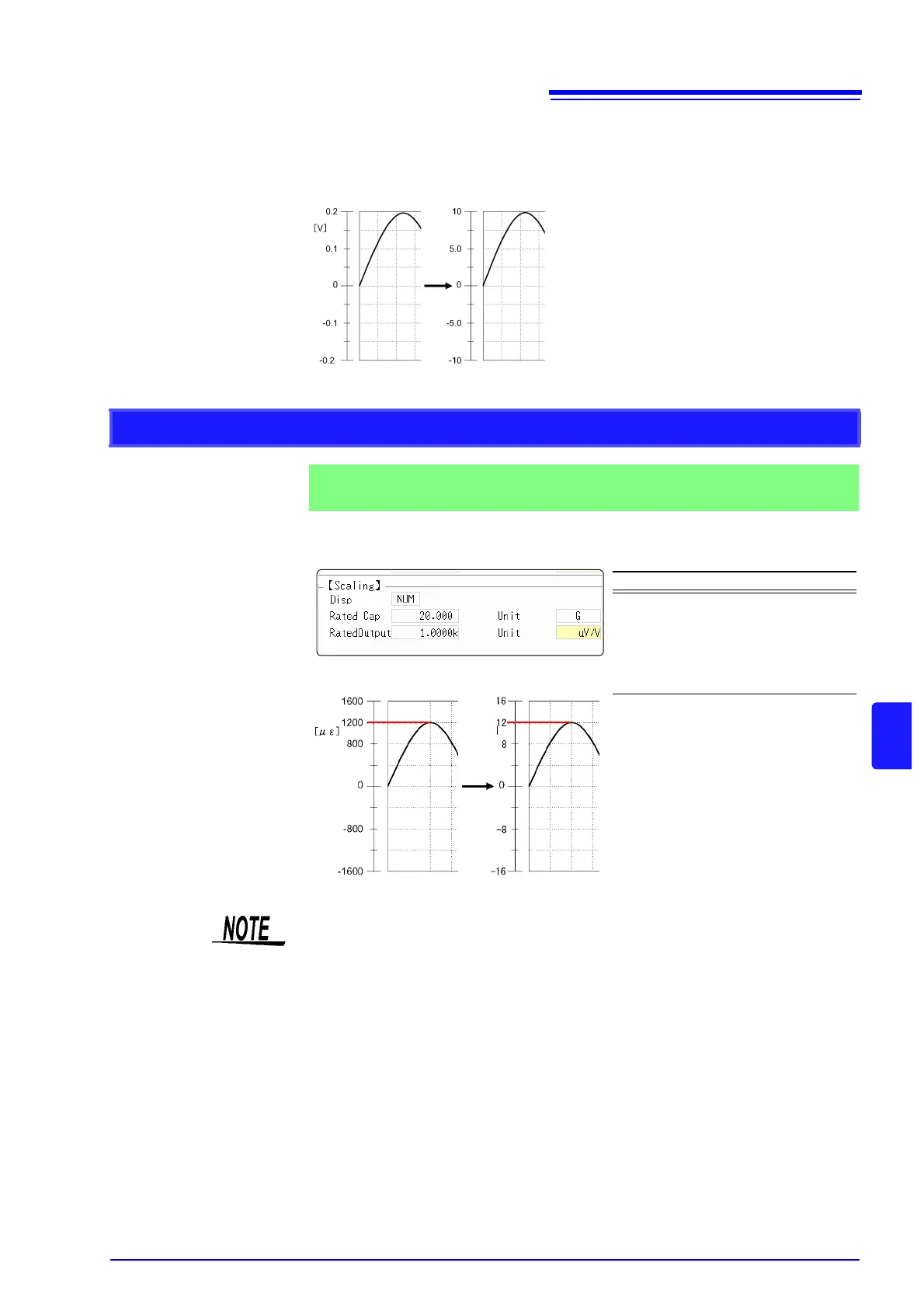

Before Scaling
After Scaling
[A]
Using Model 8969 Strain Unit
Example 2
Using the 20 G rated capacity and a sensor with 1000 μV/V rated output,
display measured data in units of [G]
Setting Items Setting Choice
Disp NUM
Unit G
Rated Cap
(Rated capacity)
20 [G]
Rated Output 1k
By using the Scaling function, signals
from the sensor are acquired as physi-
cal values.
A/B cursors and gauges are displayed
and printed as physical (G) values.
See: Gauge: (
 p.96)
Cursor A/B value: (
 p.91)
Before Scaling
After Scaling
[G]
Set the rated capacity (2 x rated output) to be less than ±9.9999±9.
