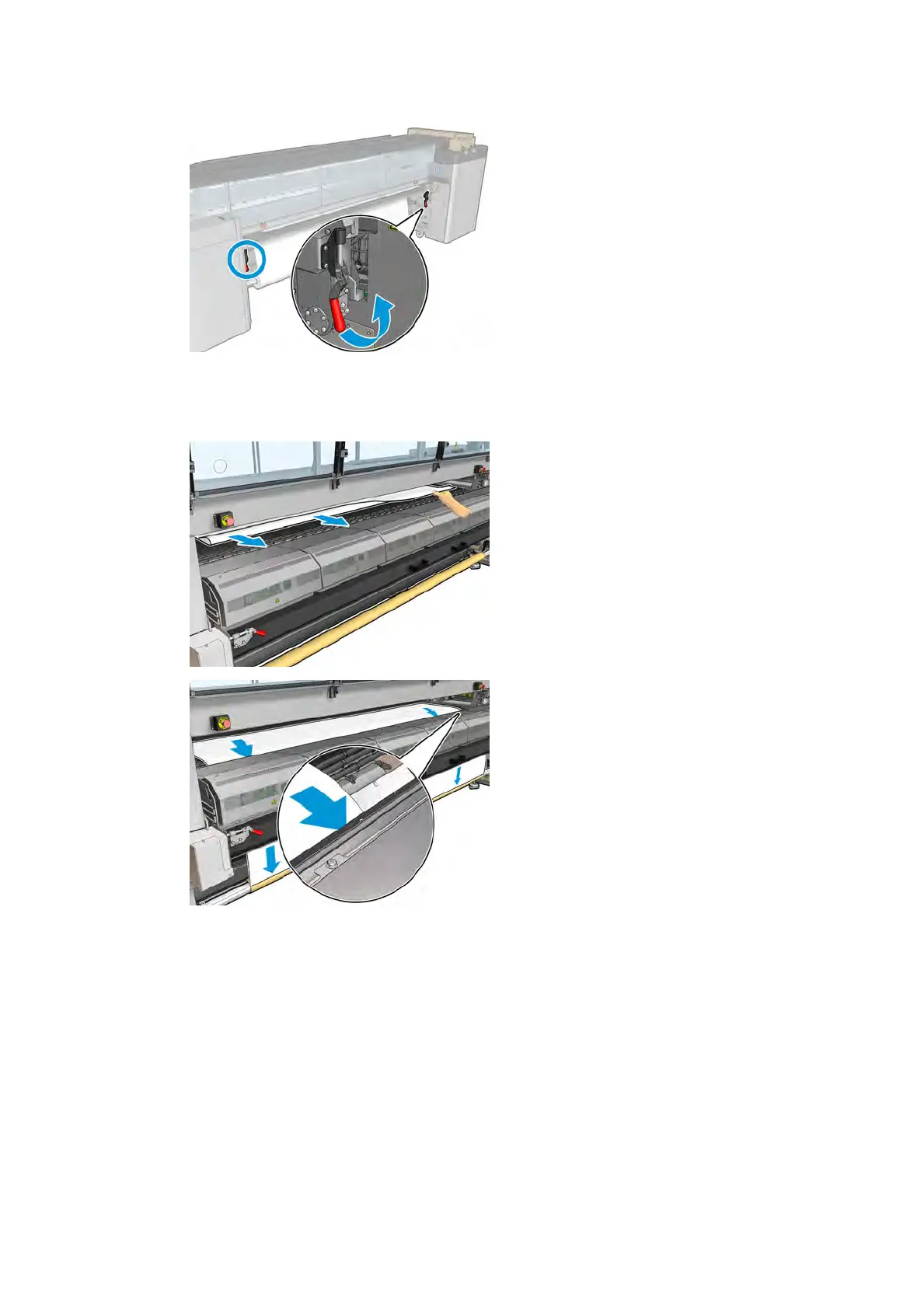

10. Close the loading table latches.
11. Go t
o the Internal Print Server and use the large blue button to advance the substrate until it reaches the
output spindle. Ensure that the substrate advances smoothly and is not trapped by any obstruction. If
necessary, help the substrate to advance and to pass through the curing module slot.
12. Open the l
oading table.
13. Align the substrate by checking that the substrate edge is in the same position on the input and output
spindles. This can be done by using the rulers on the spindles or by measuring the distance between the
right edge and the side plate.
ENWW Load a roll into the printer 59
