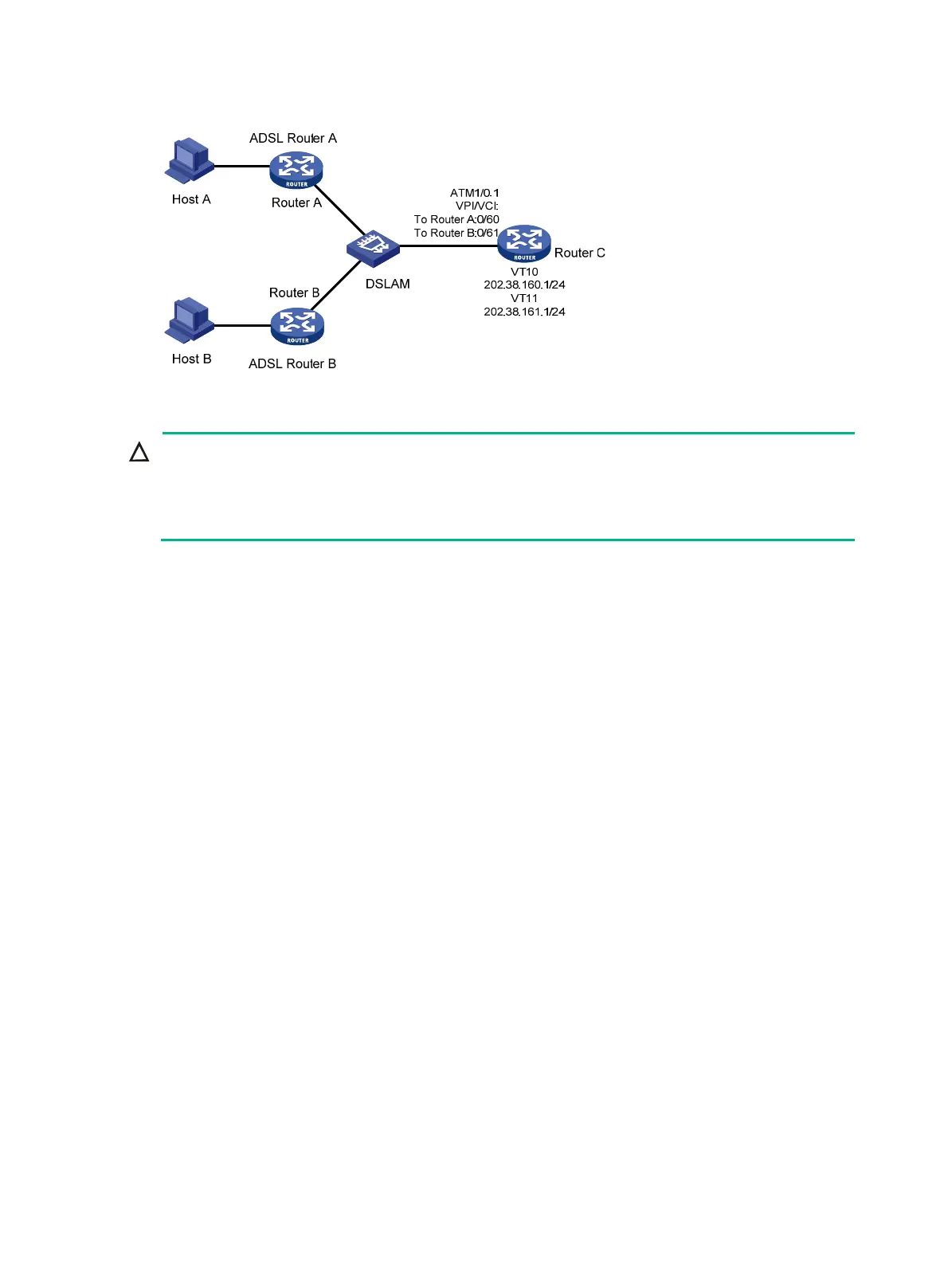

Figure 69 Network diagram

Configuration procedure

CAUTION:

If the client cancels the IP address it has received through address negotiation, or the client is

configured with a fixed IP address, the communication between the server and the client will fail.

You must shut down the ATM interface first by using the shutdown command, and delete the IP

address pool on the server.

1. Configure Router C (PPPoA Server):

# Create users for PPP authentication, and establish a local IP address pool.

<RouterC> system-view

[RouterC] local-user user1

[RouterC-luser-user1] service-type ppp

[RouterC-luser-user1] password simple pwd1

[RouterC-luser-user1] quit

[RouterC] local-user user2

[RouterC-luser-user2] service-type ppp

[RouterC-luser-user2] password simple pwd2

[RouterC-luser-user2] quit

[RouterC] domain system

[RouterC-isp-system] authentication ppp local

[RouterC-isp-system] ip pool 1 202.38.162.1 202.38.162.100

[RouterC-isp-system] quit

# Create a VT interface, configure PAP authentication and an IP address, and allocate an IP

address for the remote end from the IP address pool.

[RouterC] interface virtual-template 10

[RouterC-Virtual-Template10] ip address 202.38.160.1 255.255.255.0

[RouterC-Virtual-Template10] ppp authentication-mode pap

[RouterC-Virtual-Template10] remote address pool 1

[RouterC-Virtual-Template10] quit

[RouterC] interface virtual-template 11

[RouterC-Virtual-Template11] ip address 202.38.161.1 255.255.255.0

[RouterC-Virtual-Template11] ppp authentication-mode pap

[RouterC-Virtual-Template11] remote address pool 1

[RouterC-Virtual-Template11] quit

# Create a PVC, and specify it to carry PPP.
