240

• Assign Ethernet 1/1 to VLAN 2, configure Ethernet 1/0 as a trunk port and assign it to VLAN 2.

• Configure a sub-interface Ethernet 1/1.1 on Ethernet 1/1 of Router A and assign this

sub-interface to VLAN 2.

Configure DLSw on Router A and Router B.

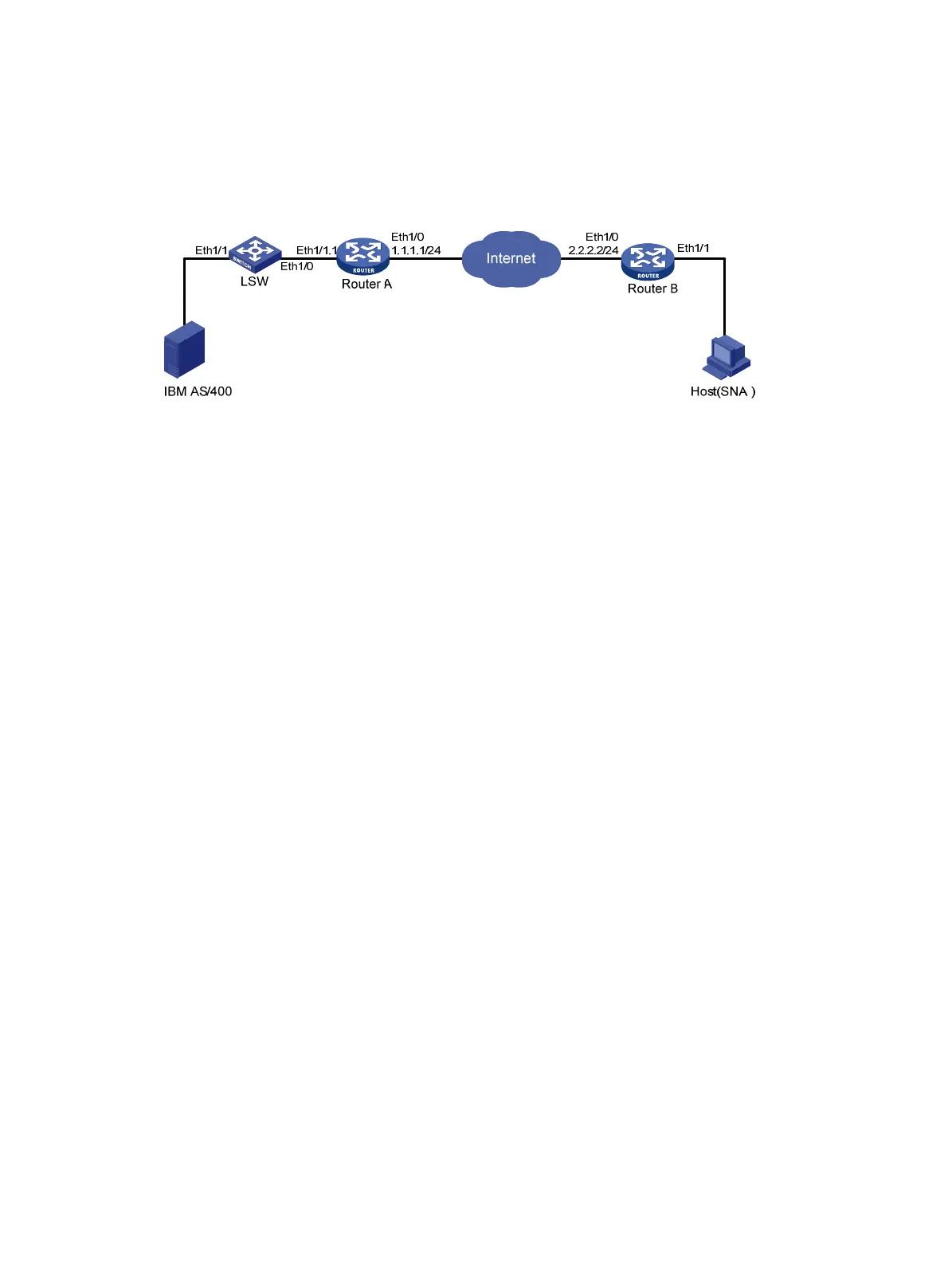

Figure 80 Network diagram

Configuration procedure

1. Configure Router A:

# Configure interfaces on Router A to make sure that the local DLSw peer 1.1.1.1 and remote

peer 2.2.2.2 can reach each other. (Details not shown.)

# Configure DLSw on Router A.

[RouterA] bridge enable

[RouterA] bridge 1 enable

[RouterA] dlsw local 1.1.1.1

[RouterA] dlsw remote 2.2.2.2

[RouterA] dlsw bridge-set 1

[RouterA] interface ethernet 1/1.1

[RouterA-Ethernet1/1.1] bridge-set 1

2. Configure Router B:

# Configure interfaces on Router B to make sure that the local DLSw peer 2.2.2.2 and remote

peer 1.1.1.1 can reach each other. (Details not shown.)

# Configure DLSw on Router B.

<RouterB> system-view

[RouterB] bridge enable

[RouterB] bridge 1 enable

[RouterB] dlsw local 2.2.2.2

[RouterB] dlsw remote 1.1.1.1

[RouterB] dlsw bridge-set 1

[RouterB] interface ethernet 1/1

[RouterB-Ethernet1/1] bridge-set 1

3. Configure LSW:

# Create VLAN 2, and assign Ethernet 1/1 to it.

<LSW> system-view

[LSW] vlan 2

[LSW-vlan2] port ethernet 1/1

[LSW-vlan2] quit

# Set Ethernet 1/0 to trunk mode and allow VLAN 2 to pass.

[LSW] interface ethernet1/0

[LSW-Ethernet1/0] port link-type trunk
