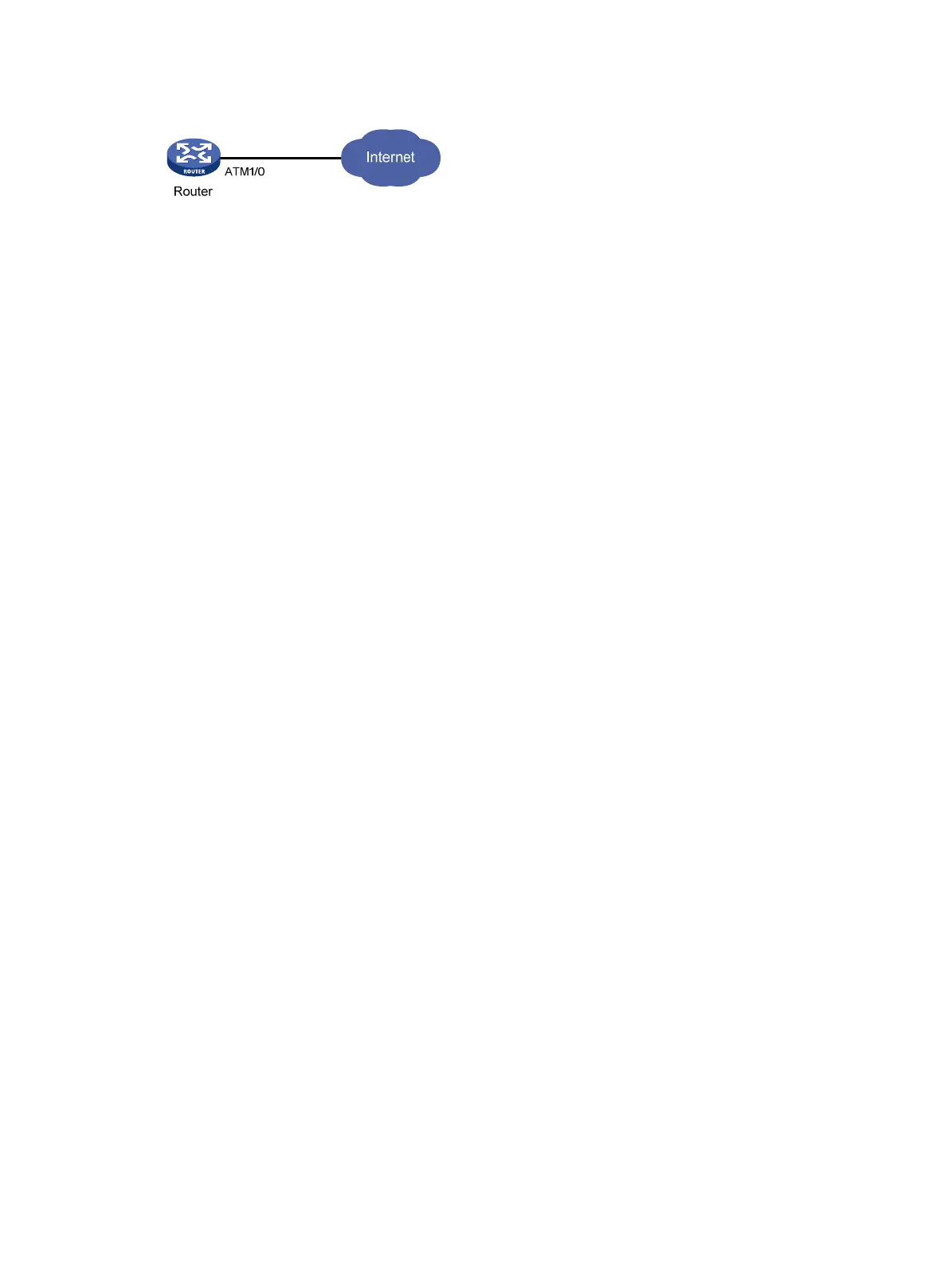

Figure 16 Network diagram
Configuration procedure
# Configure a dialer interface.
<Router> system-view
[Router] dialer-rule 1 ip permit
[Router] interface dialer 1
[Router-Dialer1] dialer user mypppoe
[Router-Dialer1] dialer-group 1
[Router-Dialer1] dialer bundle 1
[Router-Dialer1] ip address ppp-negotiate
# Configure interface VE 1.
[Router-Dialer1] interface virtual-ethernet 1
[Router-Virtual-Ethernet1] mac-address 0001-0002-0003
[Router-Virtual-Ethernet1] quit
[Router] interface atm 1/0.1
[Router-atm1/0.1] pvc to_adsl_a 0/60
[Router-atm-pvc-atm1/0.1-0/60-to_adsl_a] map bridge virtual-ethernet 1
[Router-atm-pvc-atm1/0.1-0/60-to_adsl_a] quit
[Router-atm1/0.1] quit
# Configure a PPPoE session.
[Router] interface virtual-ethernet 1
[Router-Virtual-Ethernet1] pppoe-client dial-bundle-number 1 idle-timeout 120
[Router-Virtual-Ethernet1] quit
# Configure a default route.
[Router] ip route-static 0.0.0.0 0.0.0.0 dialer 1
