257

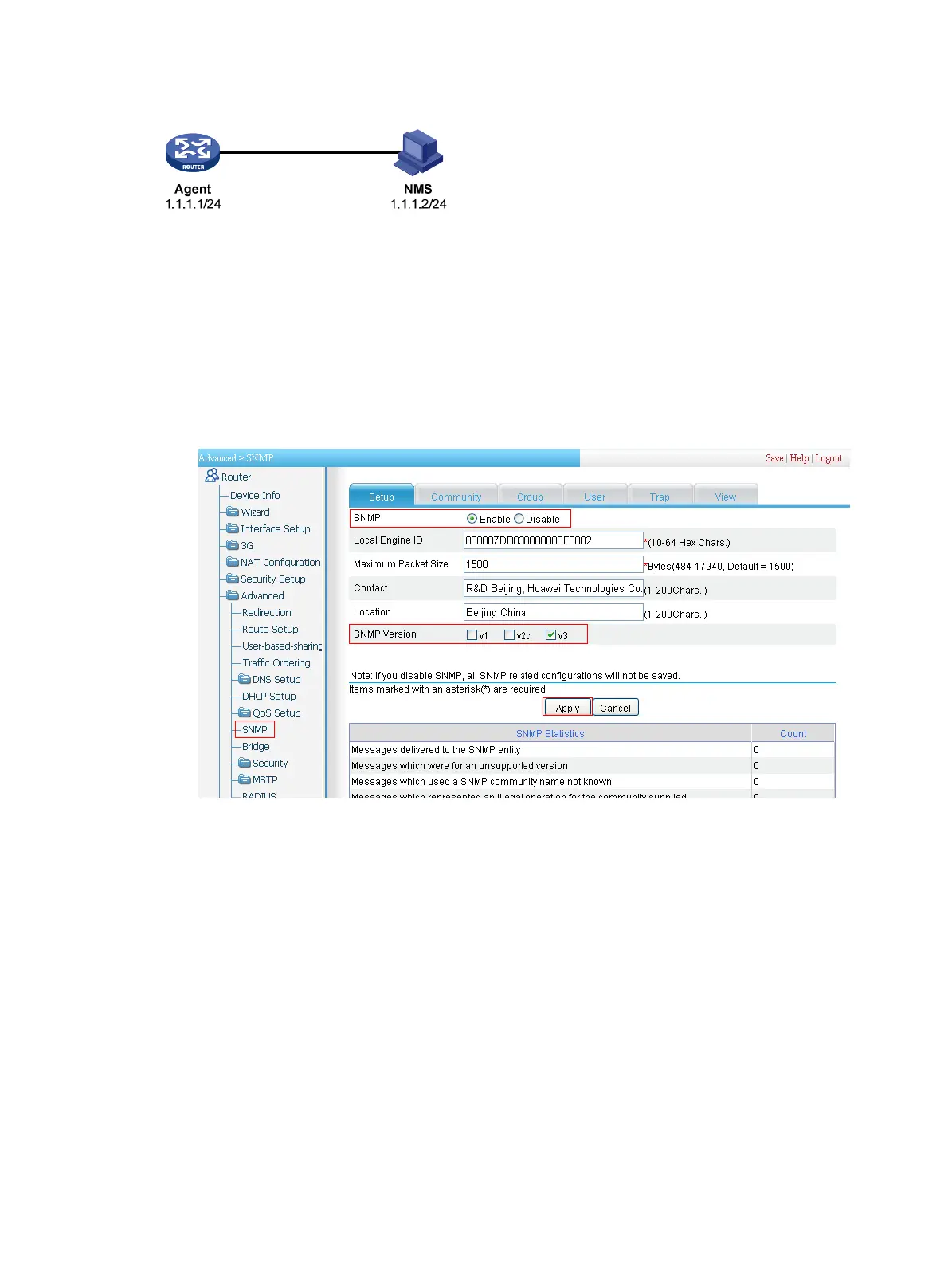

Figure 273 Network diagram
Configuring the agent
1. Enable SNMP:
a. Select Advanced > SNMP from the navigation tree, and you will enter the Setup page.
Perform the following configuration as shown in Figure 274.
b. Select the Enable radi
o bo
x.
c. Set the SNMP version to v3.
d. Click Apply.
Figure 274 Enabling SNMP
2. Configure an SNMP view:
a. Click the View tab and then click Add. Perform the following configuration as shown
in Figure 275.
b. Type vi
ew
1 in the field of View Name.
c. Click Apply and enter the page of view1. Perform the following configuration as shown
in Figure 276.
