HPE FlexNetwork MSR Series

To Next Page

To Previous Page

446

Call services

Select Voice Management > Advanced Configuration > Batch Configuration from the

navigation tree, and then click the Call Services link in the Local Number area to access the local

number call services configuration page, as shown in Figure 850.

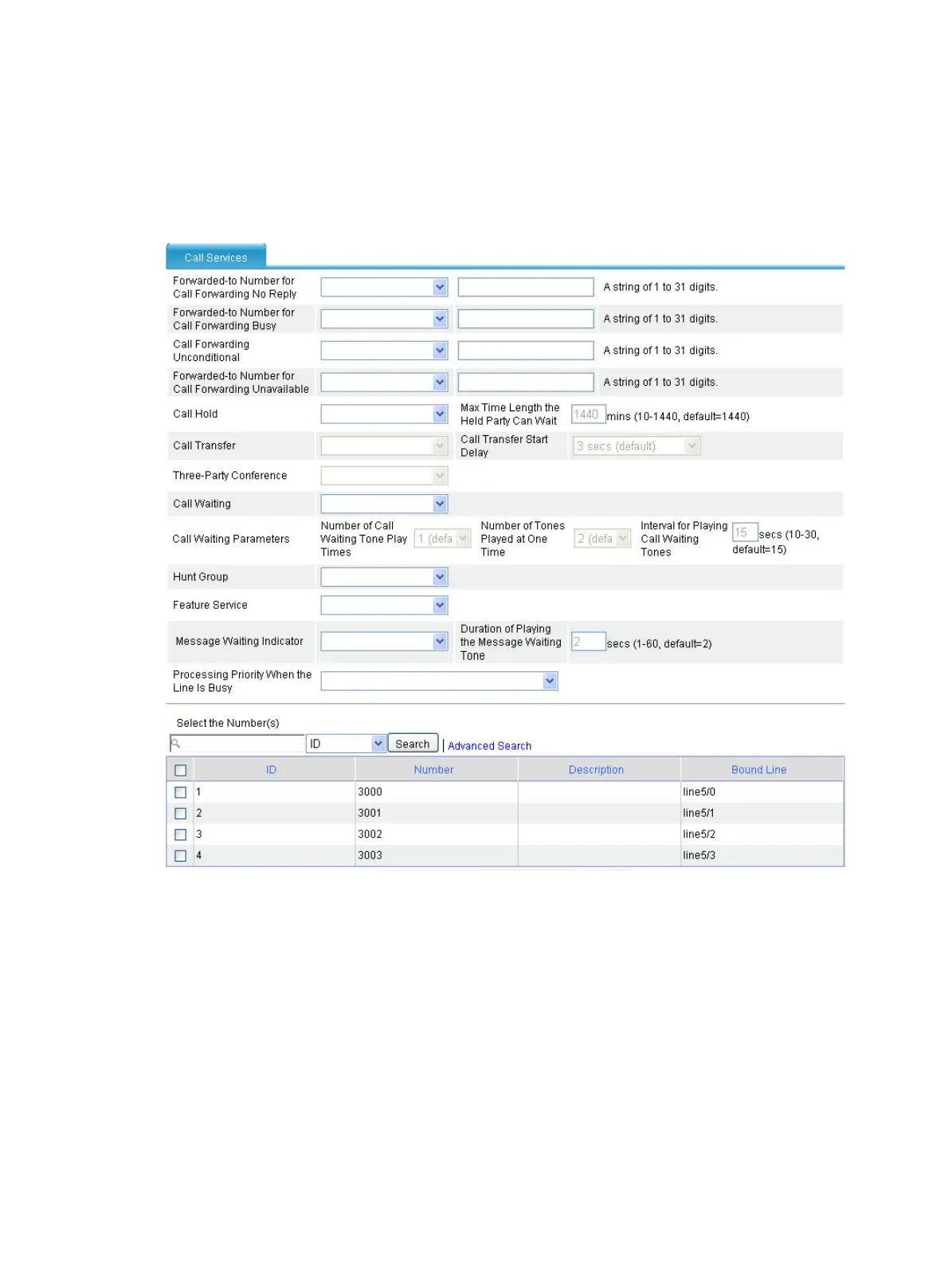

Figure 850

Call serv

ices configuration page
