Storing configuration point 4
Use one of the following methods to:
• Set the instrument source level to 5.0 V
• Store all active source settings to MySourceList as configuration point 4 by appending to the
end of the list
Using SCPI commands:
:SOURce:VOLTage:LEVel 5
:SOURce:CONF:LIST:STORe "MySourceList"
Using TSP commands:
smu.source.level = 5
smu.source.configlist.store("MySourceList")
The following figure shows the active state of the instrument after you change the source level to
5.0 V. Refer to Instrument settings stored in a source configuration list (on page 3-38
) for a complete
list of source settings that the instrument stores in a source configuration list.

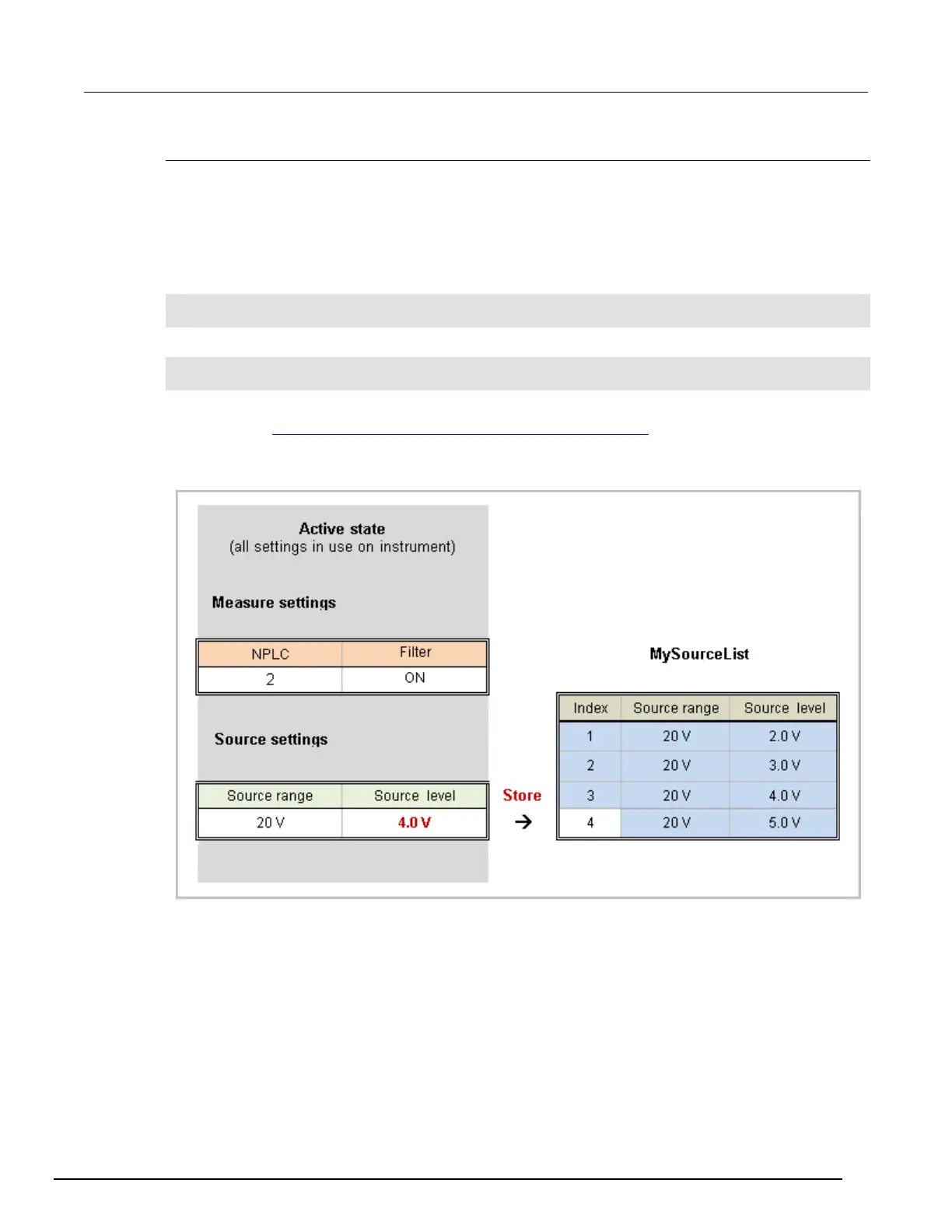

Figure 85: Example configuration point 4

Keithley 2450 Specifications

General

Model	2450
Category	SourceMeter
Voltage Source Range	±200 V
Current Source Range	±1 A
DC Voltage	200 V
DC Current	1 A
Power Output	20 W
Resolution	6.5 digits
Display	5-inch capacitive touchscreen
Operating Temperature	0°C to 50°C
Connectivity	USB, LAN, GPIB
Dimensions	213 mm × 88 mm × 370 mm
