Keithley 2450 User Manual

Model 2450
Interactive SourceMeter® Instrument Reference Manual Section 7: Intro
duction to TSP operation
2450-901-01 Rev. B/September 2013 7-31

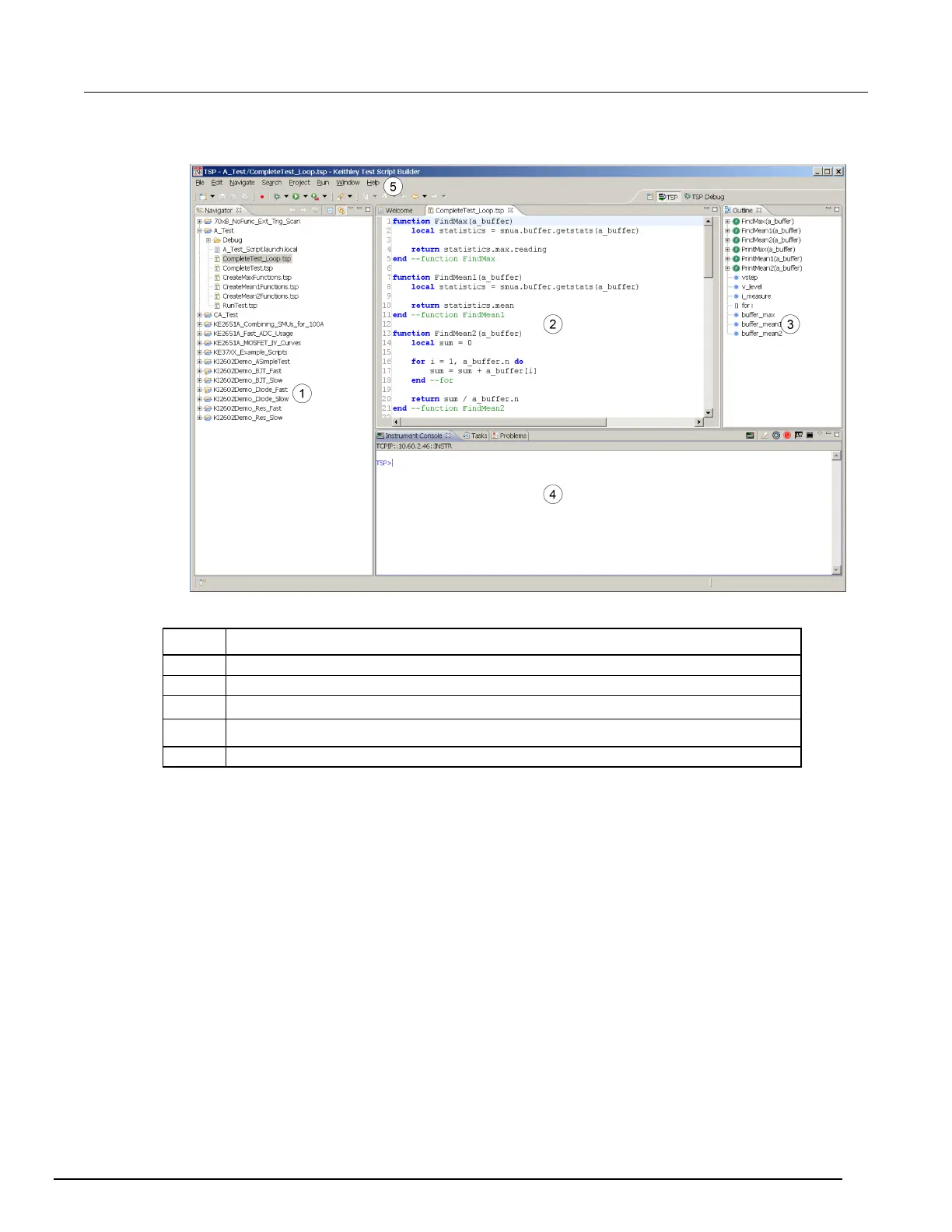

Figure 126: Example of the Test Script Builder workspace
Item Description
1
Project navigator
2
Script editor; right-click to run the script that is displayed
3
Outline view
4
Programming interaction
5
Help; includes detailed information on using Test Script Builder
Project navigator
The project navigator consists of project folders and the script files (.tsp) created for each project.
Each project folder can have one or more script files.
To view the script files in a project folder, click the plus (+) next to the project folder. To hide the folder
contents, click the minus (−) next to the project folder.
You can download a TSP project to the instrument and run it, or you can run it from the TSB
interface.

Keithley 2450 Specifications

General

Model	2450
Category	SourceMeter
Voltage Source Range	±200 V
Current Source Range	±1 A
DC Voltage	200 V
DC Current	1 A
Power Output	20 W
Resolution	6.5 digits
Display	5-inch capacitive touchscreen
Operating Temperature	0°C to 50°C
Connectivity	USB, LAN, GPIB
Dimensions	213 mm × 88 mm × 370 mm
