To connect the power cord:
1. Make sure that the front panel POWER switch is in the off (O) position.
2. Connect the female end of the supplied power cord to the AC receptacle on the rear panel.
3. Connect the other end of the power cord to a grounded AC outlet.

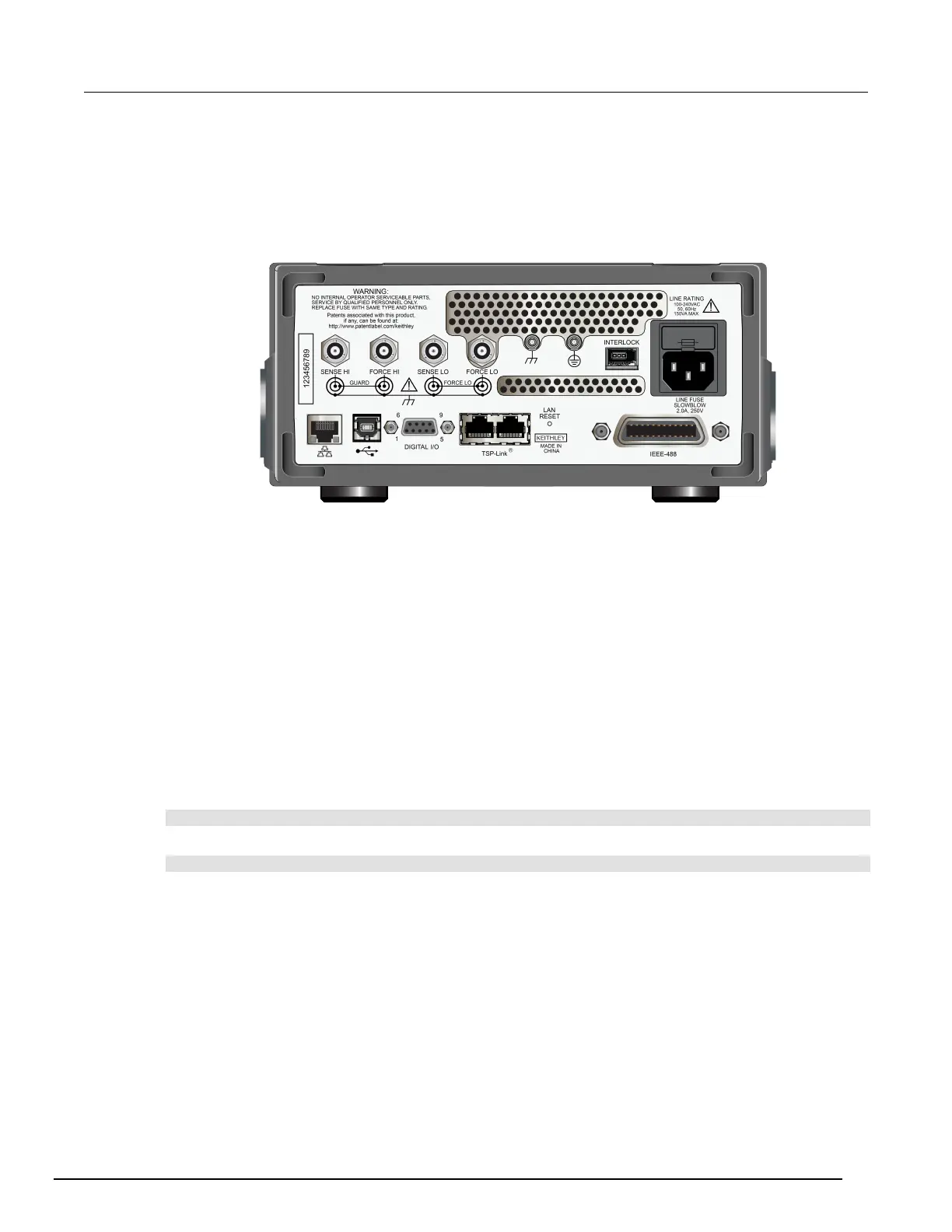

Figure 2: Model 2450 rear panel
To turn a Model 2450 on and off:
1. Disconnect any devices under test (DUTs) from the Model 2450 before turning the instrument on.
2. To turn your instrument on, press the front-panel POWER switch to place it in the on (I) position.
A status bar is displayed as the instrument powers up. The Home screen is displayed when
power up is complete.
3. To turn your instrument off, press the front-panel POWER switch to place it in the off (O) position.
Turning the Model 2450 output on
You can turn the Model 2450 output on from the front panel and by sending remote commands.
To turn the output on using the front panel:
Press the OUTPUT ON/OFF switch. The instrument is in the output-on state when the switch is
illuminated. The instrument is in the output-off state when the switch is not illuminated.
To turn the output on using SCPI commands:
:OUTPut:STATe ON
To turn the output on using TSP commands:
smu.source.output = smu.ON
