Keithley 2450 User Manual

Model 2450
Interactive SourceMeter® Instrument Reference Manual Section 2:
General operation
2450-901-01 Rev. B/September 2013 2-13
Status and error indicators
The indicators across the top of the home screen contain information about the following instrument
settings and states. Some of the indicators also provide access to a subset of instrument settings that
you can change.
Press an indicator (or highlight it by turning the navigation control and then pressing ENTER) to get
more information about the present state of the instrument.
Communication settings status indicator
Press this indicator to see a list of present communications settings. Press the Change Settings
button at the bottom of the information screen to change the communications settings.

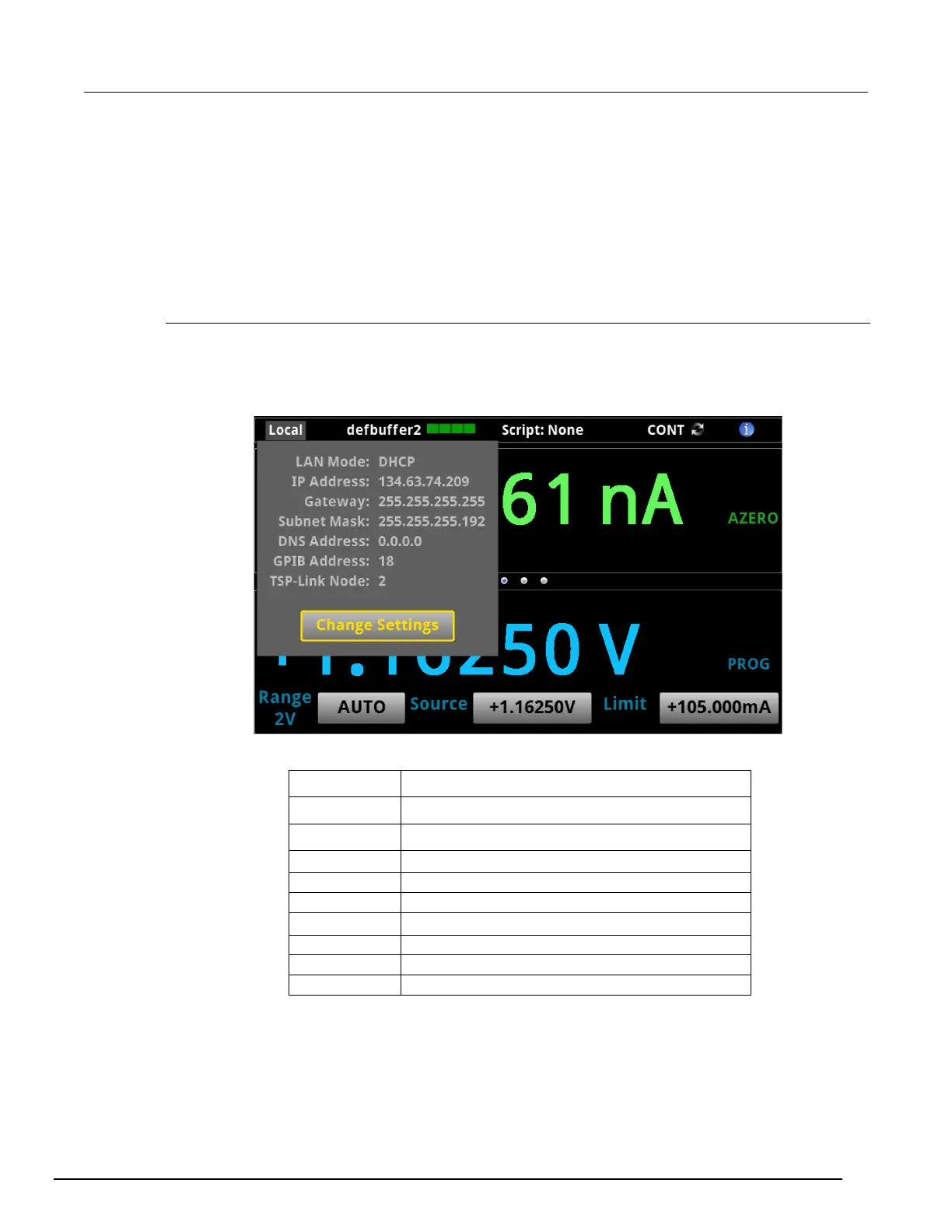

Figure 9: Model 2450 communications status indicator
Indicator Meaning
Local
Instrument is controlled from the front panel.
GPIB
Instrument is communicating through a GPIB interface.
TCPIP
Instrument is communicating through a LAN interface.
VXI-11
Instrument is communicating using VXI-11.
USBTMC
Instrument is communicating through a USB interface.
DHCP
Instrument is communicating using DHCP.
Telnet
Instrument is communicating through Telnet.
TSP-Link
Instrument is communicating through TSP-Link.
Slave
Instrument is a subordinate in a TSP-Link system.

Keithley 2450 Specifications

General

Model	2450
Category	SourceMeter
Voltage Source Range	±200 V
Current Source Range	±1 A
DC Voltage	200 V
DC Current	1 A
Power Output	20 W
Resolution	6.5 digits
Display	5-inch capacitive touchscreen
Operating Temperature	0°C to 50°C
Connectivity	USB, LAN, GPIB
Dimensions	213 mm × 88 mm × 370 mm
