Section
3: Functions and features Model 2450 Interactive SourceMeter® Instrument
Reference Manual
3-72 2450-901-01 Rev. B/September 2013

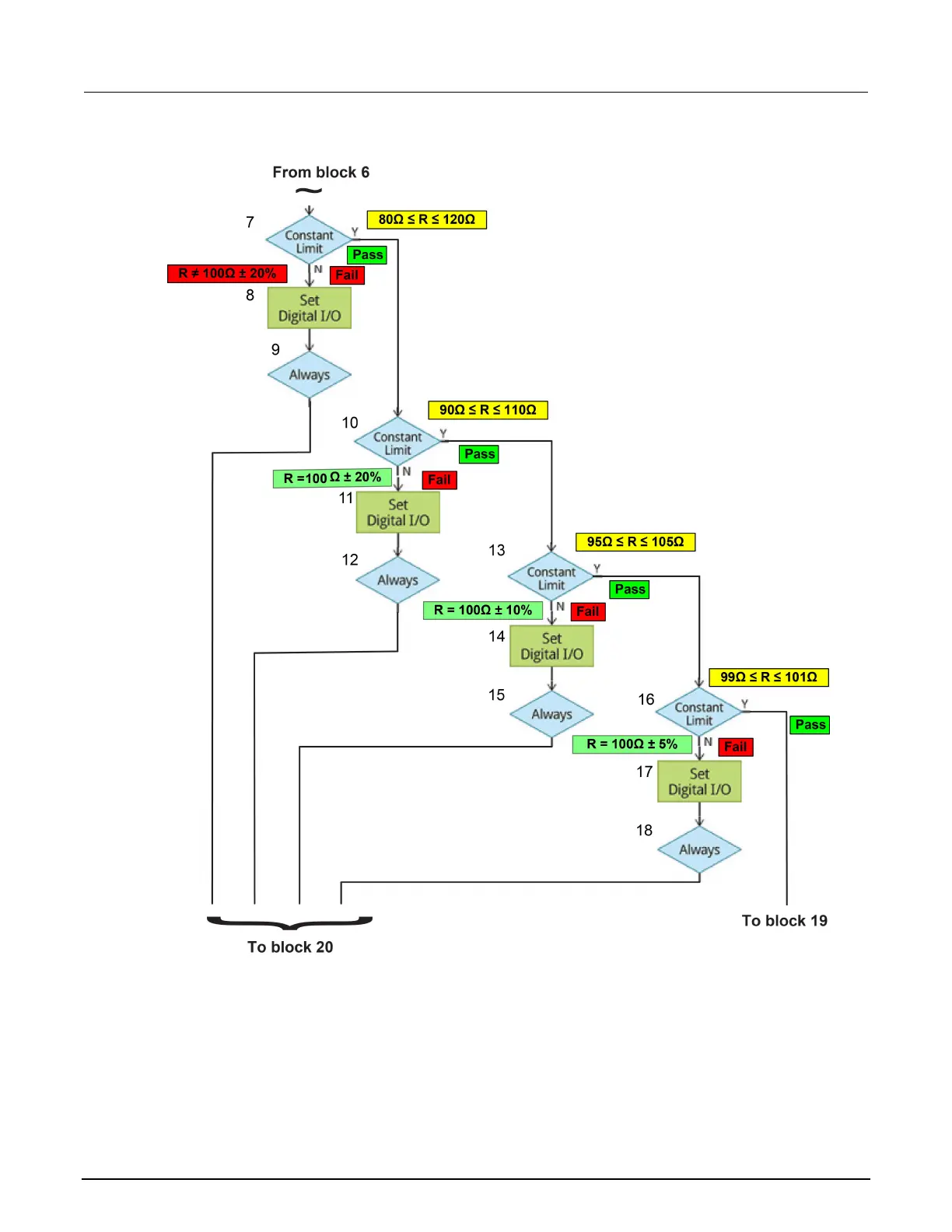

Figure 96: Resistor grading example blocks 7 to 18

Table of Contents

Other manuals for Keithley 2450

Preview: Application Note
Application Note6 pages

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Keithley 2450 and is the answer not in the manual?

Keithley 2450 Specifications

General IconGeneral
Model2450
CategorySourceMeter
Voltage Source Range±200 V
Current Source Range±1 A
DC Voltage200 V
DC Current1 A
Power Output20 W
Resolution6.5 digits
Display5-inch capacitive touchscreen
Operating Temperature0°C to 50°C
ConnectivityUSB, LAN, GPIB
Dimensions213 mm × 88 mm × 370 mm
