3: Functions and features Model 2450 Interactive SourceMeter® Instrument
3-94 2450-901-01 Rev. B/September 2013

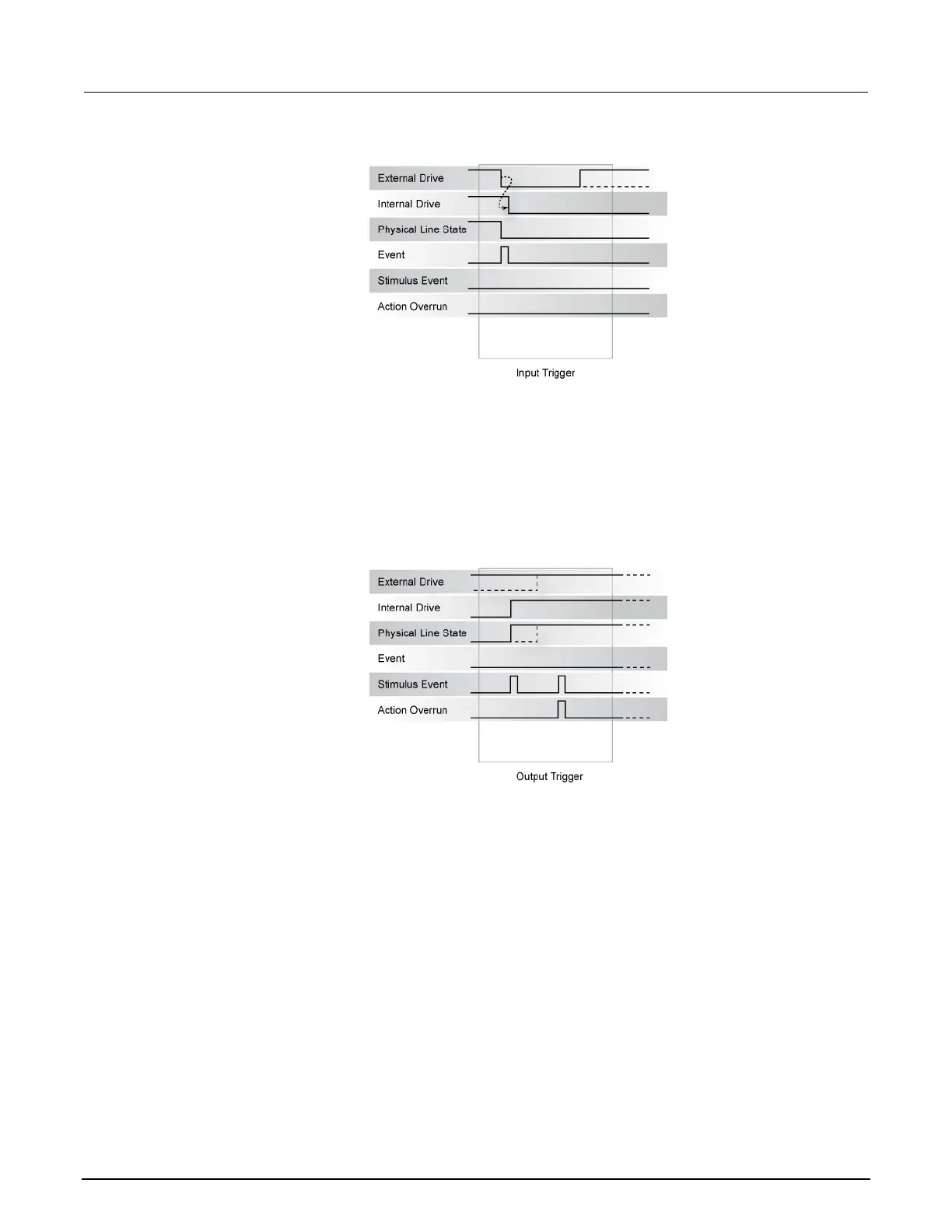

Figure 104: SynchronousA input trigger
Output characteristics:
• In addition to trigger events from other trigger objects, the TSP commands
trigger.digout[N].assert() and trigger.tsplinkout[N].assert() release the line
if the line is latched low. The pulse width is not used.
• The physical line state does not change until all drives (internal and external) release the line.
• Action overruns occur if the internal drive is not latched low and a source event is received.
Figure 105: SynchronousA output trigger
