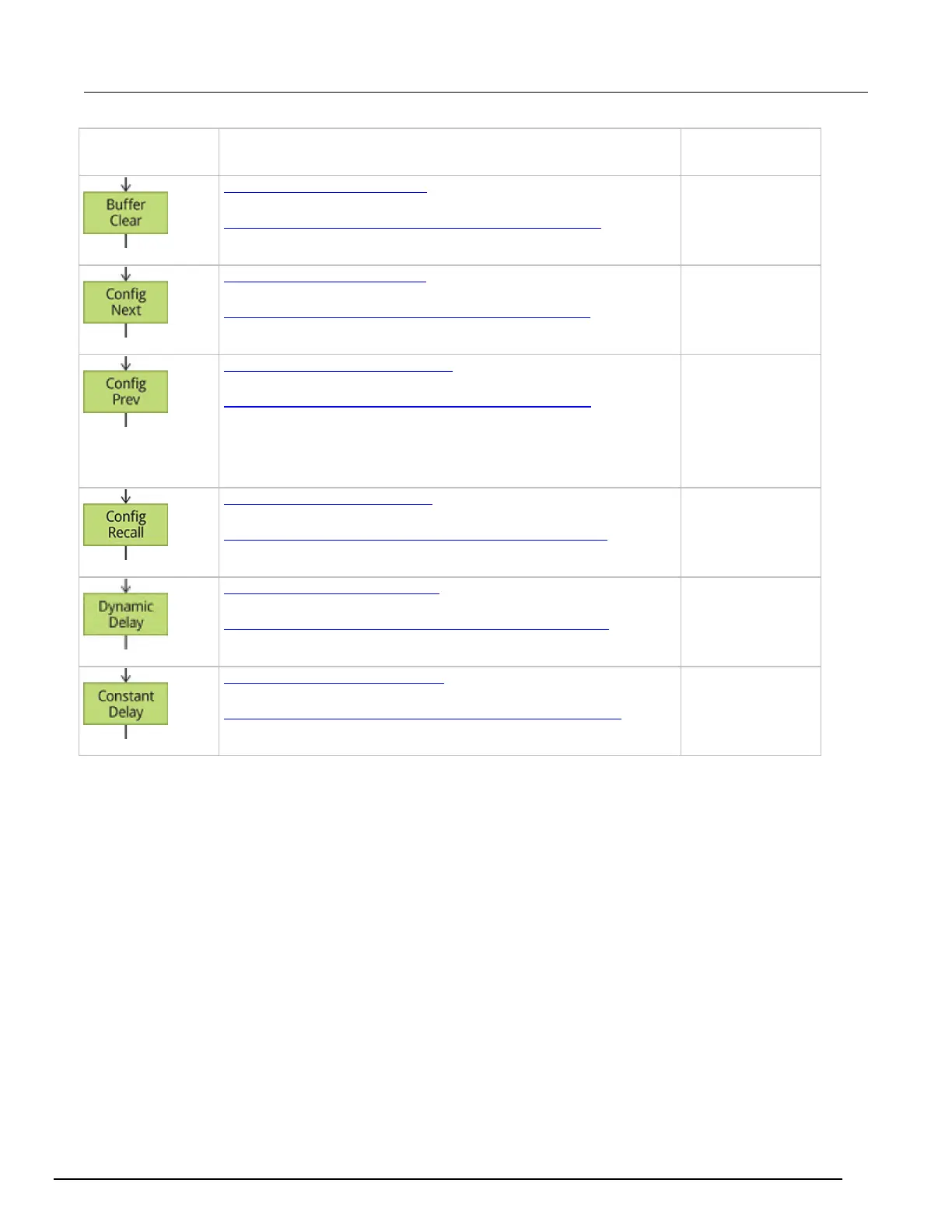

el 2450 Interactive SourceMeter® Instrument Reference Manual Section 3:
Functions and features
2450-901-01 Rev. B/September 2013 3-103
Front-panel icon SCPI command
TSP command
Block description
:TRIGger:BLOCk:BUFFer:CLEar (on page 6-136)
trigger.model.setblock() — trigger.BLOCK_BUFFER_CLEAR
(on page
8-201)
This defines a
trigger model block
that clears the
reading buffer
:TRIGger:BLOCk:CONFig:NEXT (on page 6-136
)
trigger.model.setblock() — trigger.BLOCK_CONFIG_NEXT (on page
8-
202)
This recalls the
settings at the next
index point of a
source or measure
configuration list
:TRIGger:BLOCk:CONFig:PREVious (on page 6-137)
trigger.model.setblock() — trigger.BLOCK_CONFIG_PREV (on page
8-
203)
This defines a
trigger model block
that recalls the
settings stored at the
previous index point
in a measure or
source configuration
list
:TRIGger:BLOCk:CONFig:RECall (on page 6-138
)
trigger.model.setblock() — trigger.BLOCK_CONFIG_RECALL
(on page
8-204)
This recalls the
system settings that
are stored in a
measure or source
configuration list
:TRIGger:BLOCk:DELay:DYNamic (on page 6-140)
trigger.model.setblock() — trigger.BLOCK_DELAY_DYNAMIC
(on page
8-206)
This adds a delay to
the execution of the
trigger model
:TRIGger:BLOCk:DELay:CONStant (on page 6-139
)
trigger.model.setblock() — trigger.BLOCK_DELAY_CONSTANT
(on
page 8-205)
This adds a constant
delay to the trigger
model

Keithley 2450 Specifications

General

Model	2450
Category	SourceMeter
Voltage Source Range	±200 V
Current Source Range	±1 A
DC Voltage	200 V
DC Current	1 A
Power Output	20 W
Resolution	6.5 digits
Display	5-inch capacitive touchscreen
Operating Temperature	0°C to 50°C
Connectivity	USB, LAN, GPIB
Dimensions	213 mm × 88 mm × 370 mm
