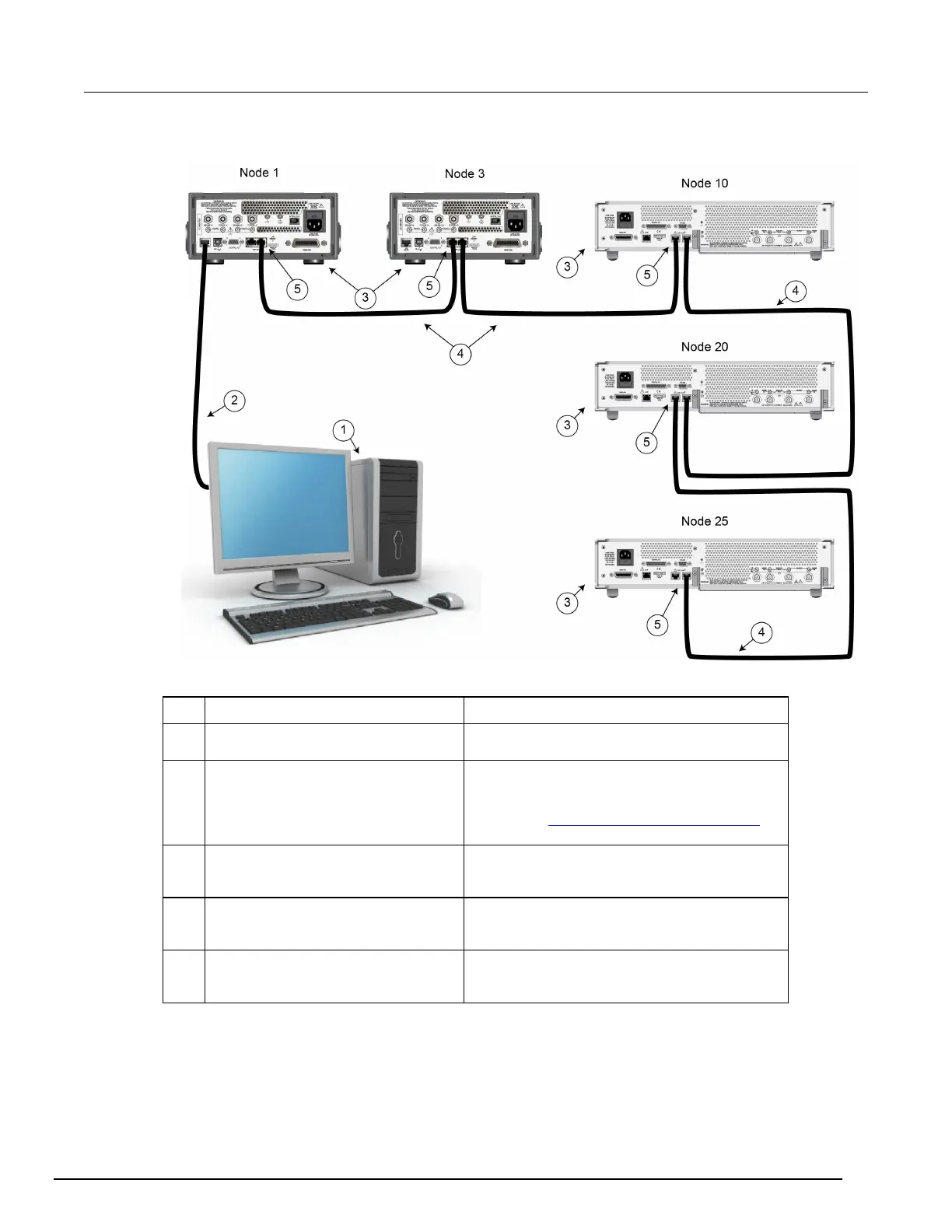

Figure 106: TSP-Link connections
Item Description Notes
1
Controller
Optional. A computer is not needed for stand-
alone systems.
2
Communication connection
Optional. Connection from controller to the master
node through GPIB, LAN, or USB. Details about
these computer communication connections are
described in
Remote communication interfaces
(on page 2-44).
3
Nodes
You can have up to 32 nodes on the TSP-Link
system. Each node must have a unique node
number from 1 to 64.
4
LAN crossover cable
Type 5e category or higher; 3 meters (9.8 feet)
maximum between nodes. Available from Keithley
Instruments (Model CA-180-3A).
5
TSP-Link connections
Each instrument has two TSP-Link connectors.
You can make the connection to either TSP-Link
connection.

Keithley 2450 Specifications

General

Model	2450
Category	SourceMeter
Voltage Source Range	±200 V
Current Source Range	±1 A
DC Voltage	200 V
DC Current	1 A
Power Output	20 W
Resolution	6.5 digits
Display	5-inch capacitive touchscreen
Operating Temperature	0°C to 50°C
Connectivity	USB, LAN, GPIB
Dimensions	213 mm × 88 mm × 370 mm
