Machine Configuration (continued)
2-12

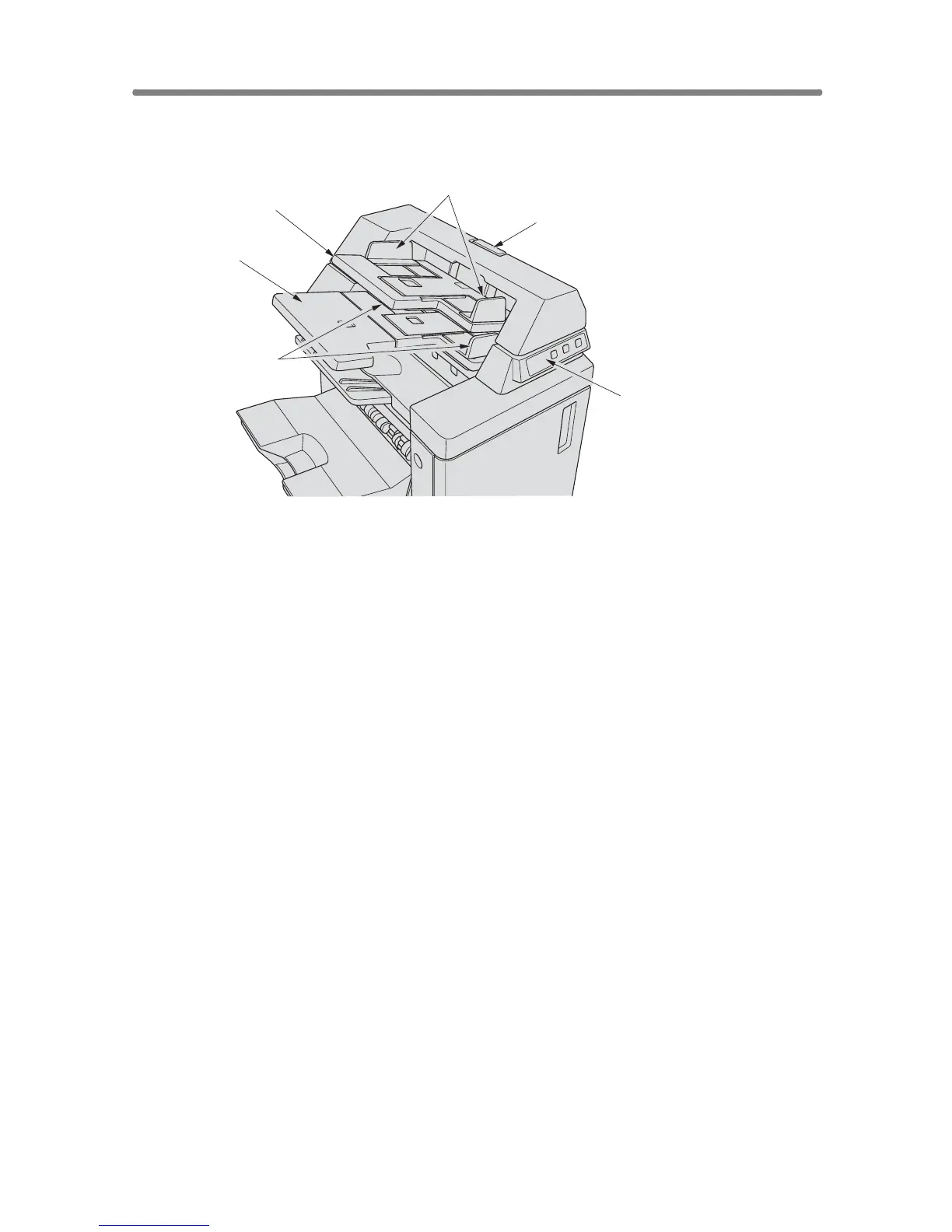

PI-110 Cover Sheet Feeder
1 Cover sheet feeder control panel controls cover sheet feeder operations.
2 Upper unit release lever can be moved to slide the upper unit of cover
sheet feeder for removal of mishandled paper.
3 Upper tray guide plates hold cover sheets to fix the position.
4 Upper tray holds cover sheets for use in cover sheet output mode.
5 Lower tray holds cover sheets for use in cover sheet output mode or a
copied set in manual staple/punch/three-fold mode.
6 Lower tray guide plates hold cover sheets to fix the position.
1 Cover sheet feede
