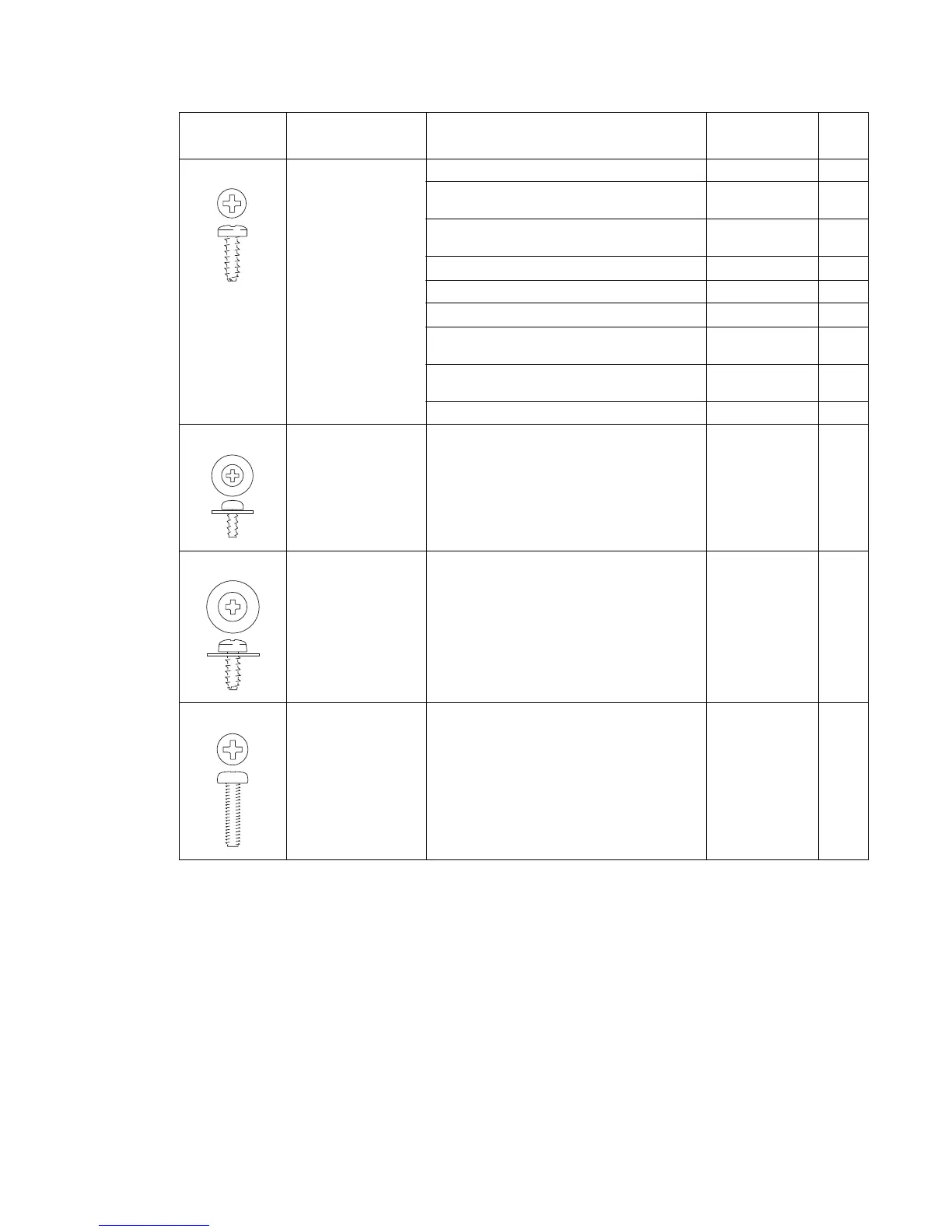

Repair information 4-5
5061
324 M3.5x10 mm
Plastite Thread
Forming
Transfer HVPS/RIP fan asm to RIP shield Attach 1
Front left light shield to left upper cover
asm and top cover
Attach 1
Front right light shield to right front cover
support and top cover
Attach 1
Cartridge drive assemblies to upper frame Mounting 12
Upper door hinges to upper frame (redrive) Attach 2
Inner redrive assembly to upper frame Mounting 2
Paper level sensing assembly to lower
frame
Mounting 3
Inner deflector/pick assembly to lower
frame
Mounting 1
RIP fan to RIP fan duct Attach 2
412 2.9x5.2 mm Plastite Hinge restraint to door (MPF) SEMS Attach 1
423 M3.5x9 mm Plastite Tray bias bellcrank to tray Mounting 1
484 M3.5x14 mm
Machine Panhead
Printhead to upper frame Mounting 12
Reference
number
Screw type Location Purpose Qty
