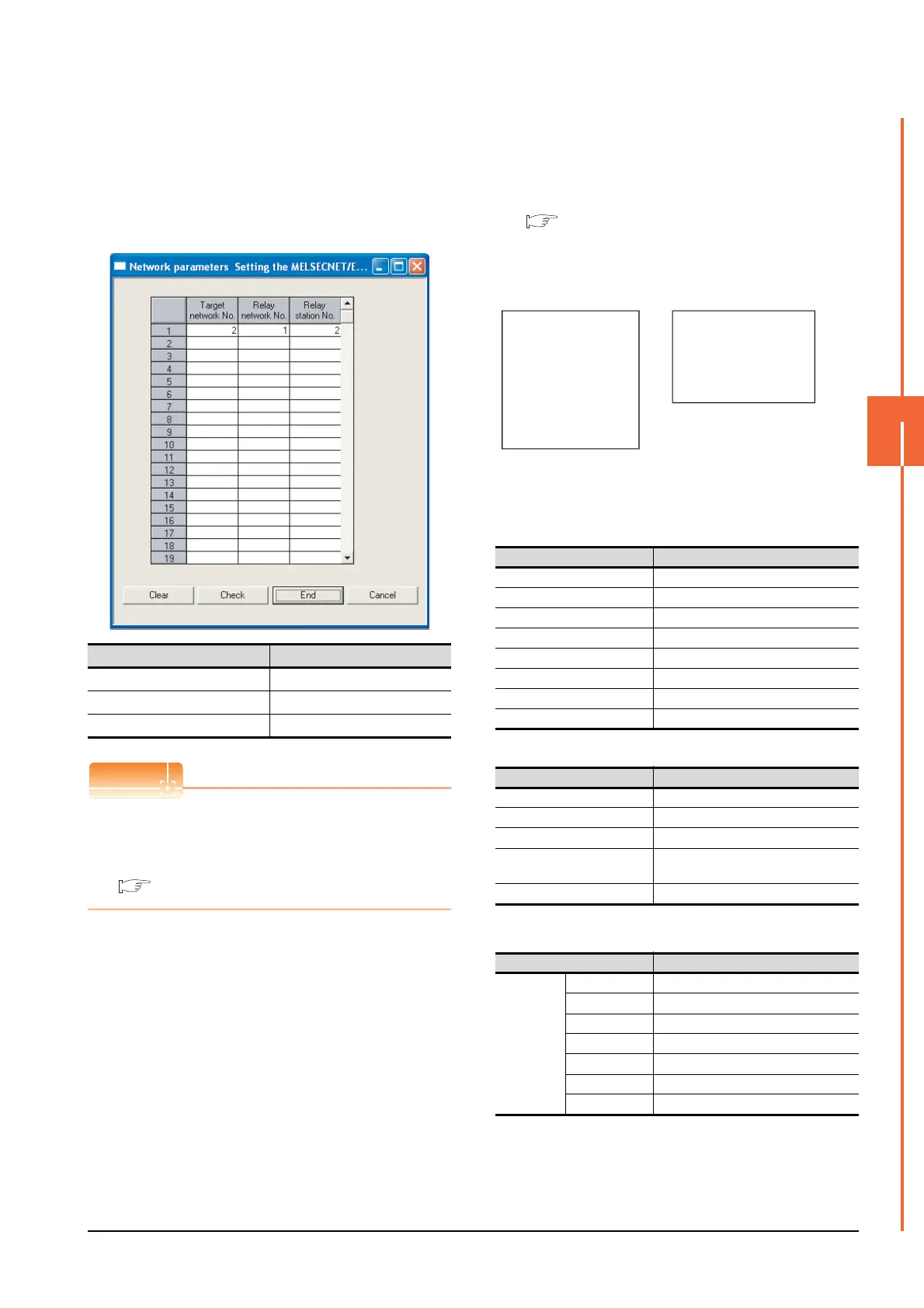

5. ETHERNET CONNECTION
5.4 PLC Side Setting
5 - 31
5
ETHERNET CONNECTION
(2) Routing parameter setting
Up to 64 [Transfer Network No.]s can be set.
However, the same transfer network number cannot be
set twice or more (multiple times).
Therefore, the one that can access to other station from
the request source host GOT is 64 kinds of [Transfer
Network No.]s.
Routing parameter setting of request source
Routing parameter setting is also necessary for the
request source GOT.
For the setting, refer to the following.
5.3.5 Routing parameter setting
(3) Communication confirmation
The RDY LED on the Ethernet module turn on when
the module is ready to communicate.
For confirming the communication state, refer to the
following.
5.3.5 ■Confirming the communication state of
Ethernet module
[Controller Setting] and [Ethernet] of GT
Designer3
(1) Controller setting
(2) GOT Ethernet setting
(3) Ethernet setting
Item Range
Target network No. 1 to 239
Relay network No. 1 to 239
Relay station No. 1 to 64
GOT Net No. Set value (Use default value)
GOT Net No. 1
GOT Station 1
GOT Ethernet Setting 192.168.3.18
GOT Communication Port No. 5002
Retry 3times
Startup Time 3sec
Timeout Time 3sec
Delay Time 0ms
Item Set value (Use default value)
GOT IP Address 192.168.3.18
Subnet Mask 255.255.255.0
Default Gateway 0.0.0.0
Peripheral Communication
Port No.
5015
Transparent Port No. 5014
Item Set value
Ethernet
setting No.1
Host *
N/W No. 1
PLC No. 2
Type AJ71QE71
IP address 192.168.0.19
Port No. 5001 (fixed)
Communication UDP (fixed)
RUN BUF1
BUF2
BUF3
BUF4
BUF5
BUF6
BUF7
BUF8
RDY
BSY
SW.ERR.
COM.ERR.
CPU R/W
TEST
TEST ERR.
BSY
SW.ERR.
COM.ERR.
CPU R/W
TEST ERR.
TEST
RDY
RUN BUF1
BUF2
BUF3
BUF4
BUF5
BUF6
BUF7
BUF8
A1SJ71QE71N3-T, A1SJ71QE71N-B5,
A1SJ71QE71N-B2, A1SJ71QE71N-T,
A1SJ71QE71N-B5T,A1SJ71QE71-B5,
A1SJ71QE71-B2
J71QE71N3-T, AJ71QE71N-B5,
J71QE71N-B2, AJ71QE71N-T,
J71QE71N-B5T, AJ71QE71,
J71QE71-B5
