ValueJet 1304 Service manual
AP-74109 Rev 1.1 4-70

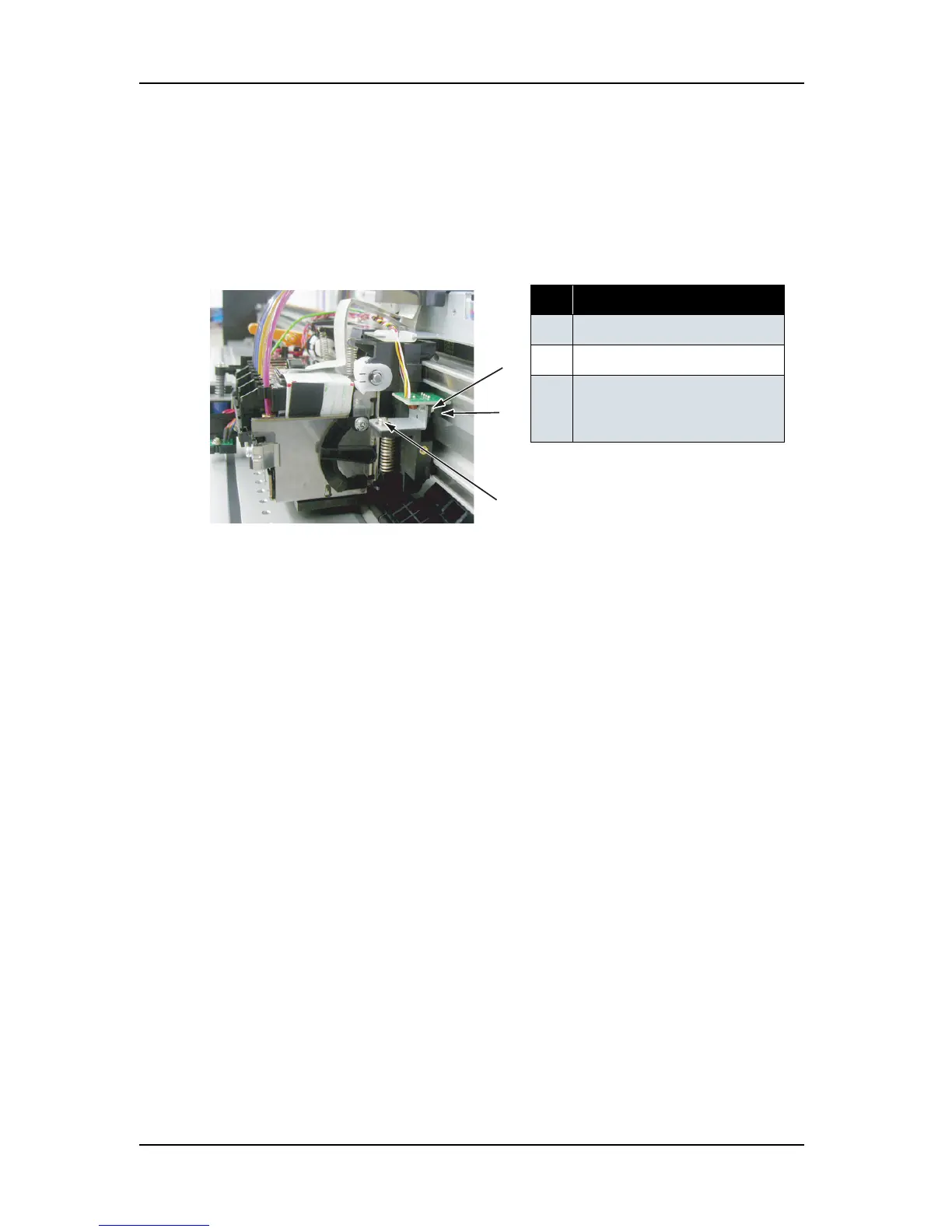

(3) Replacing CR_ENC Assembly
1. Remove the cutter holder assembly.
2. Remove the CR_ENC assembly-retaining screw (round head spring screw M 3
× 8 W sems: 1).
3. Detach the cable from the three clamps.
4. Remove the CR_ENC assembly.
5. To reassemble the unit, reverse the removal procedure.
(4) Replacing P_EDGE Sensor Assembly
1. Remove the cutter holder assembly.
表 4-79
No. Part name
1 Mounting plate screw
2
CR_ENC assembly
3 CR_ENC assembly screw
(round head spring screw M 3
× 8 W sems)
