NEC Xen Master System Hardware Manual

May 2001
System Hardware Manual 4 - 85
A6-324000-642-01 – Release 4.0 May 2001
4. Install the terminal board plate to the battery
installation tray of the EBB using 2 screws.
5. As shown below, connect the EBB cable
attached to the terminal board and the
battery relay cable, then connect the battery
relay cable to the BATTERY EXT socket of
the power unit of the basic unit.

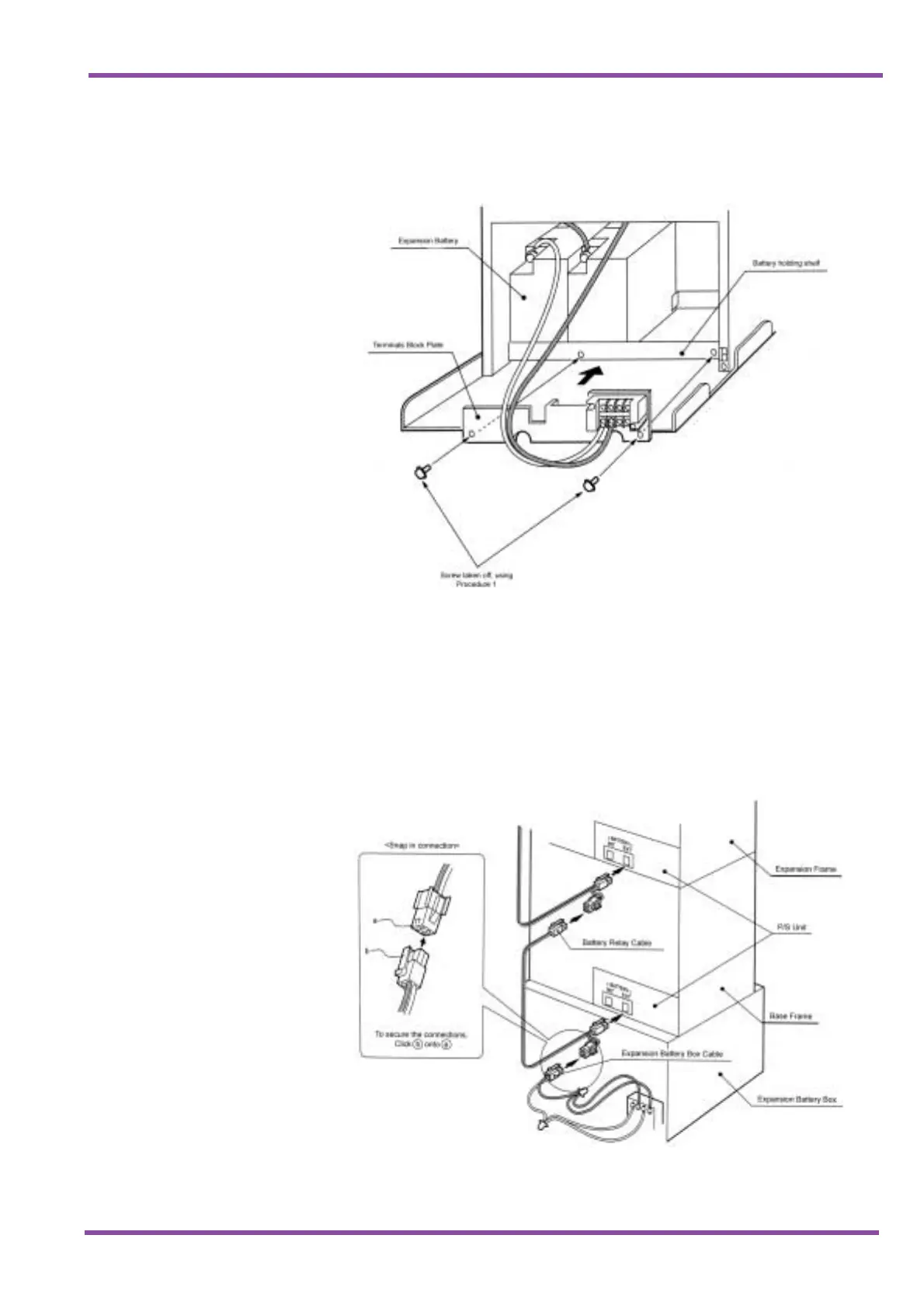

Figure 4-42 Installing the Terminal Board
Figure 4-43 Connecting the EBB Cable
