NEC Australia Pty Ltd Xen Master & Xen Axis
4 - 94 Installing KSUs
A6-324000-642-01 – Release 4.0
May 2001
4.6 Installing Built-in and External Batteries in the KSU
4.6.1 Built in Battery Installation
1. Connect the two batteries in series as shown in
Figure 4-54 Connecting Built-in Batteries. The red
cord attaches to the red terminal and the black cord
attaches to the black terminal.
2. Slide the batteries into the bottom space at the left
side of the KSU, and install the battery cover as
illustrated in Figure 4-55 Installing the Batteries in the
KSU.
Be careful to ensure the cords are
connected to the correct the battery
terminals.
!

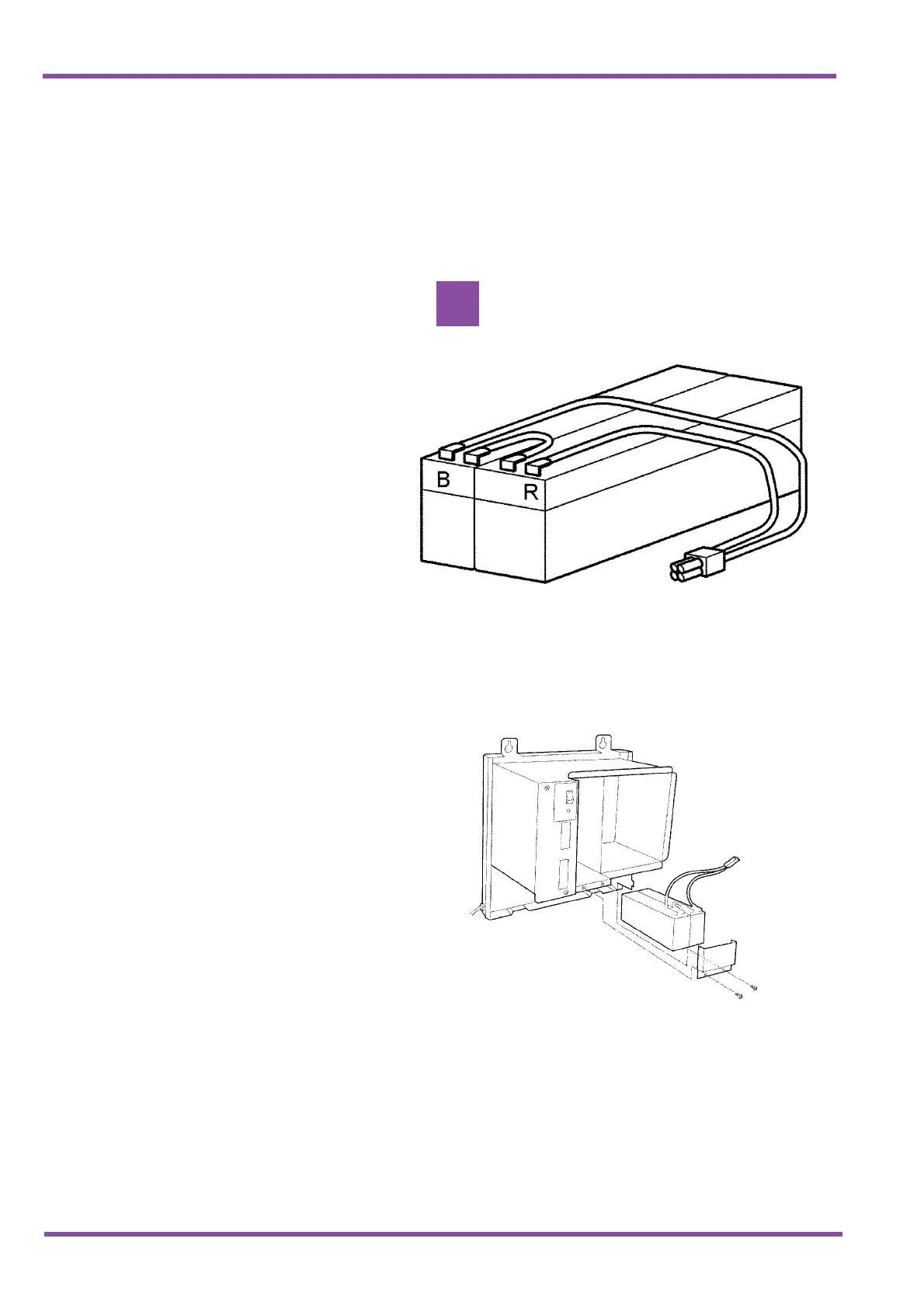

Figure 4-54 Connecting Built-in Batteries
Figure 4-55 Installing the Batteries in the KSU
