NEC Australia Pty Ltd
Xen Master & Xen Axis
7 - 220
Installi
ng Optional Equipment
A6-324000-6
42-01 – Releas
e 4.0
May
2001
5.
Replace tilt-leg i
n
original
position.
6.
Plug AC Adapter into CTU(C)’
s AC
Adapter
.

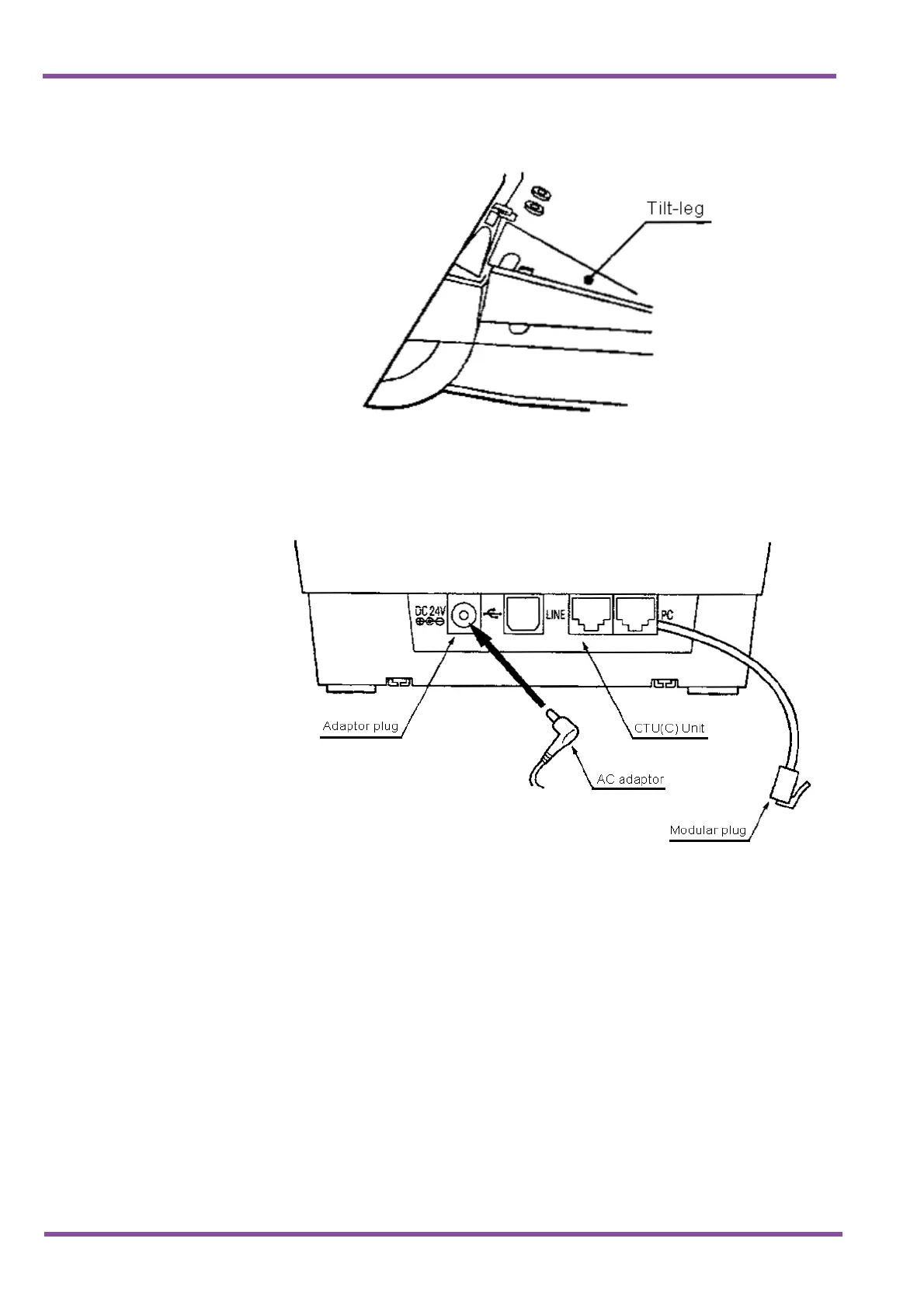

Figure 7-43 Closing the Base
Figure 7-44 Connect
ing AC Adapter to CTU
(C)
