NEC Xen Master System Hardware Manual

NEC Australia Pty Ltd Xen Master & Xen Axis
4 - 74 Installing KSUs
A6-324000-642-01 – Release 4.0 May 2001
3.9.2 Connecting Battery Expansion Cables to the Expansion
KSU:
1. Using the Battery Expansion Cables (included in the
Expansion KSU) lead the expansion cables through
the clamps and tie them to the KSU with a tie wrap on
the expansion KSU.
2. When using two expansion KSUs, connect the PSU
of each expansion KSU with the Battery expansion
cables and lead the cables through the clamps and
tie them with a tie wrap.

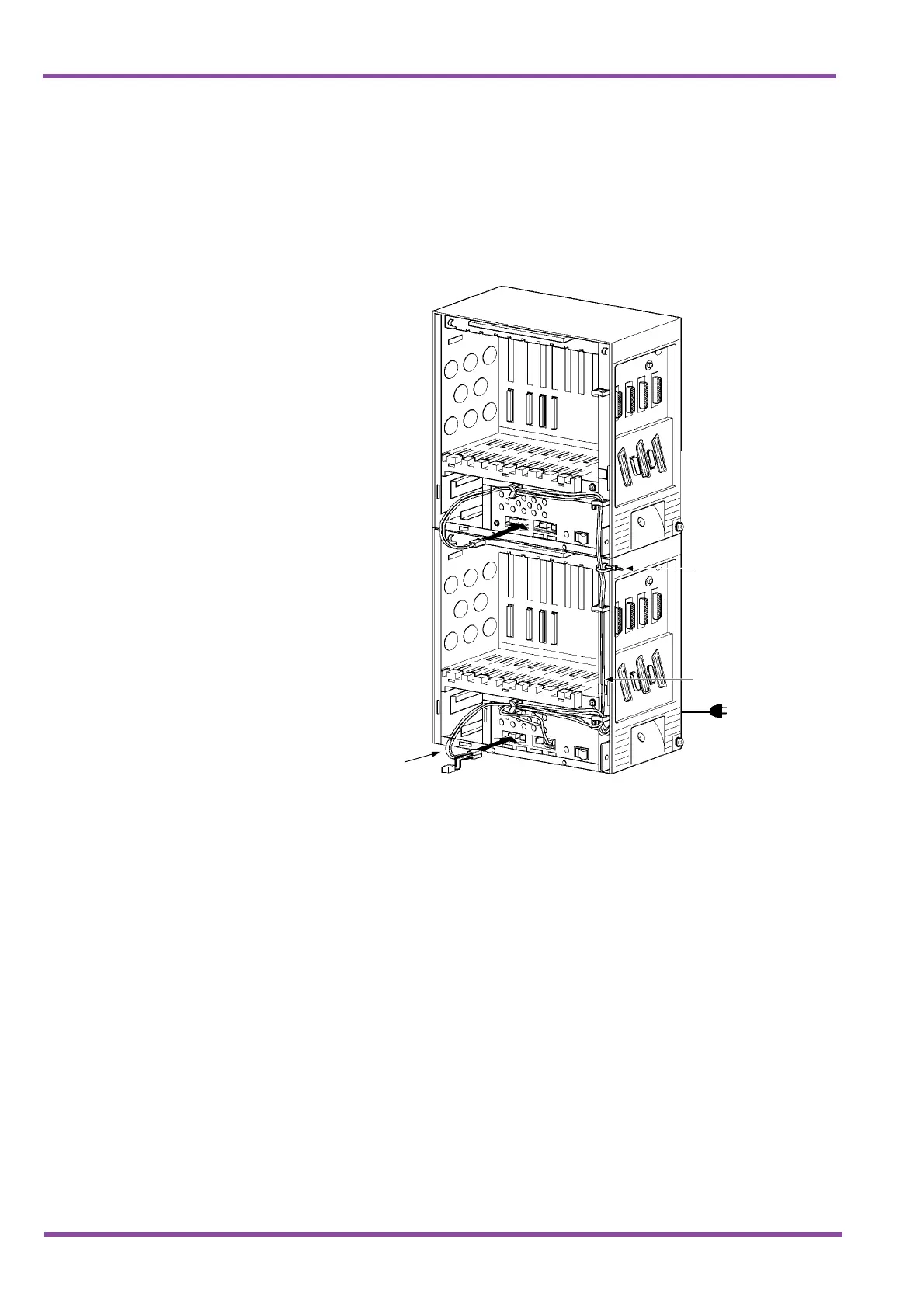

Figure 4-25 Connecting Battery Expansion Cables to the Expansion KSU
Frame
Ground
Terminal
DC
Expansion
Cable
Tie Wrap
DC
Expansion
Cable
