NEC Australia Pty Ltd Xen Master & Xen Axis
6 - 182 Installing DTU-Type Multiline Terminals
A6-324000-642-01 – Release 4.0
May 2001
2.2 DTU-8D-1A (WH) TEL
This digital Multiline Terminal has eight programmable line keys
(each with the two-colour LED), four softkeys, a built-in
speakerphone, headset jack, a Large LED to indicate incoming calls
and messages, and compatibility with ADA-UA, APR-UA, CTU( )-
UA, CTA-UA, HFU-UA AND VDD-UA Units.
This terminal is also equipped with a 3-line, 24-character, adjustable
Liquid Crystal Display (LCD).
A maximum of 120 DTU-8D-1A (WH) TELs can be installed in the
Xen Master system and a maximum of 32 in the Xen Axis system.
2.3 DTU-16D-1A (WH) TEL
This digital Multiline Terminal has 16 programmable line keys (each
with a two-colour LED), four softkeys, a built-in speakerphone,
headset jack, a large LED to indicate incoming calls and messages,
and compatibility with ADA-UA, APR-UA, CTU( )-UA, CTA-UA,
HFU-UA, and VDD-UA Units.
This terminal is also equipped with a 3-line, 24-character, adjustable
Liquid Crystal Display (LCD).

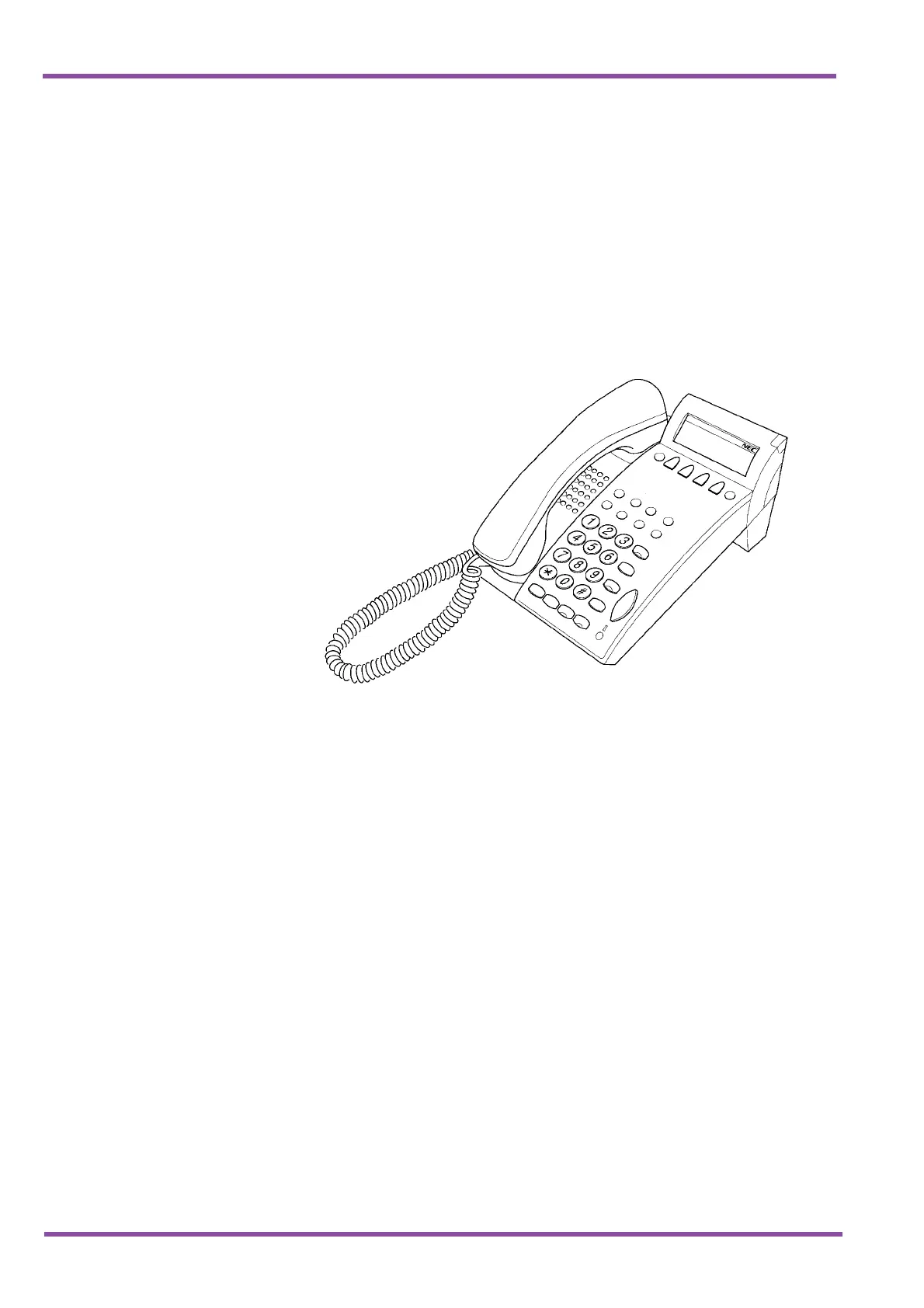

Figure 6-2 DTU-8D-1A (WH) TEL Multiline Terminal
