NEC Xen Master System Hardware Manual

NEC Australia Pty Ltd Xen Master & Xen Axis
4 - 78 Installing KSUs
A6-324000-642-01 – Release 4.0 May 2001
3.10.2.1 Floor Mounting the EBB Box using the
Mounting Bracket.
1. Position the floor mount bracket at the
installation position on the floor, then install
the floor mount with the 4 anchor bolts
(6mm), not supplied). Refer to Figure 4-31
Floor Mount Anchor Points.

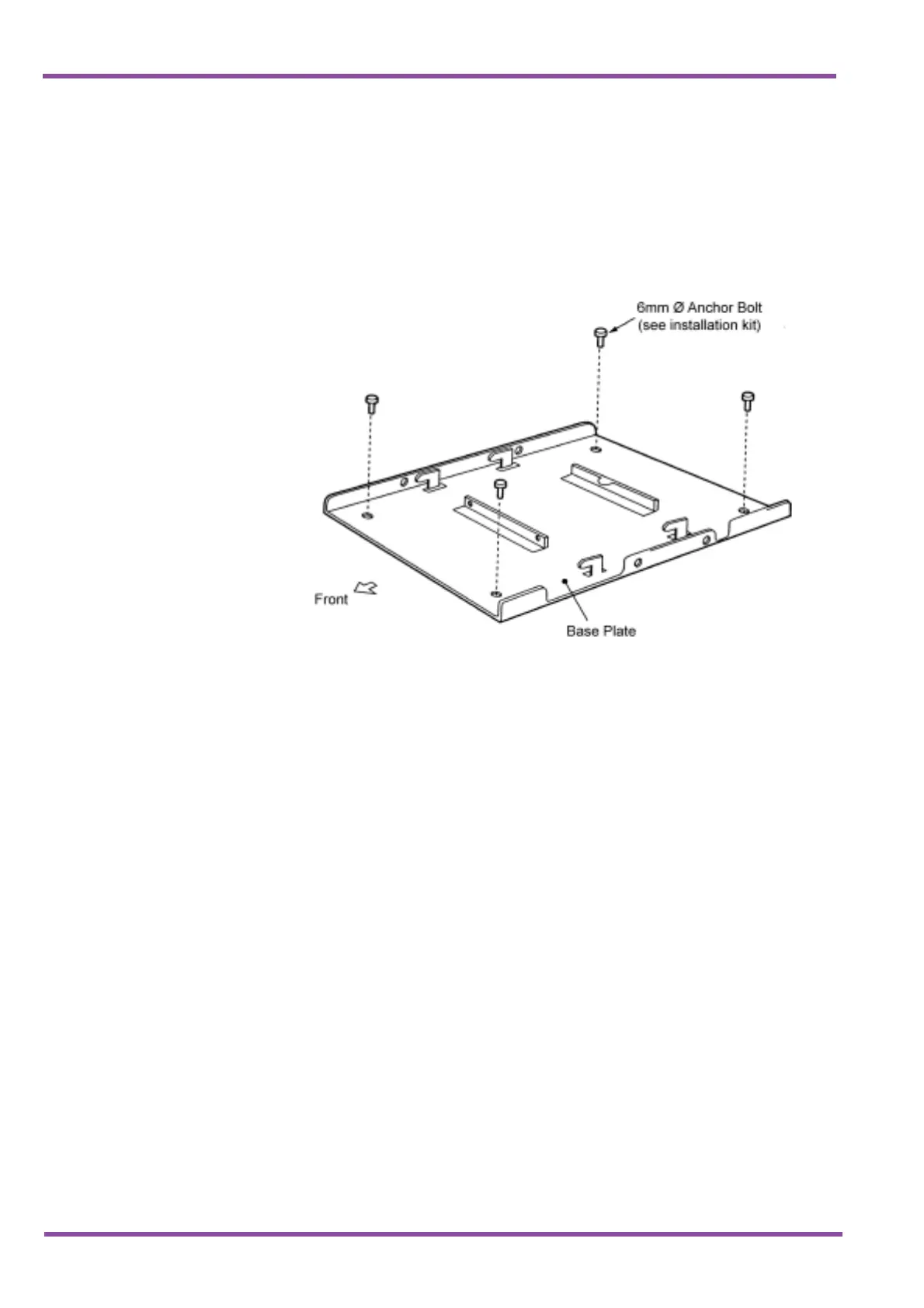

Figure 4-31 Floor Mount Anchor Points
