NEC Xen Master - Figure 7-63 Wall Mounting Using a Modular Jack; Figure 7-64 Plugging in the Line Cord Using a Wall Jack

May 2001
System Hardware Manual 7 - 233
A6-324000-642-01 – Release 4.0 May 2001
If using a modular jack instead of a wall plate, put the
modular jack inside the base unit as shown in Figure
7-63 Wall Mounting using a Modular Jack. Use the
locally provided screws to attach the base unit
directly to the wall.
7. Plug the line cord into the jack on the wall plate, wrap
the extra cord and secure it with a tie wrap, and lead
the line cord out through the groove in the side of the
base unit.

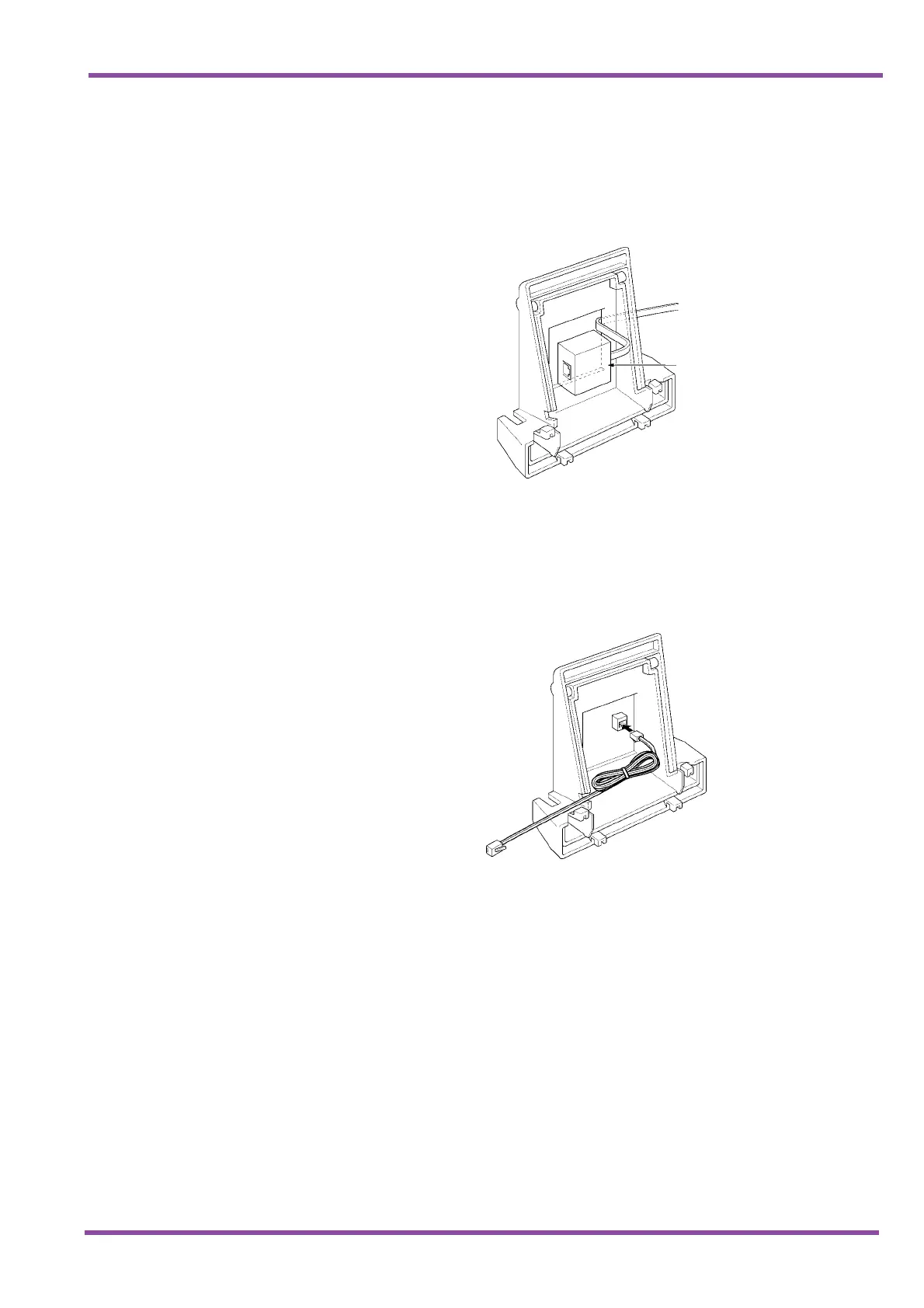

Figure 7-63 Wall Mounting using a Modular Jack
Figure 7-64 Plugging in the Line Cord using a Wall Jack
Modular
Terminal
