2. Install the P64-U13 PSU into the bottom space of the
KSU and attach to the KSU using the two provided
screws. Refer to Figure 4-23 Mounting the PSU onto
the KSU.
3. Lead the KSU power cable through the clamp and
connect the PSU as shown in Figure 4-24
Connecting the PSU Power Cable to the Basic KSU.

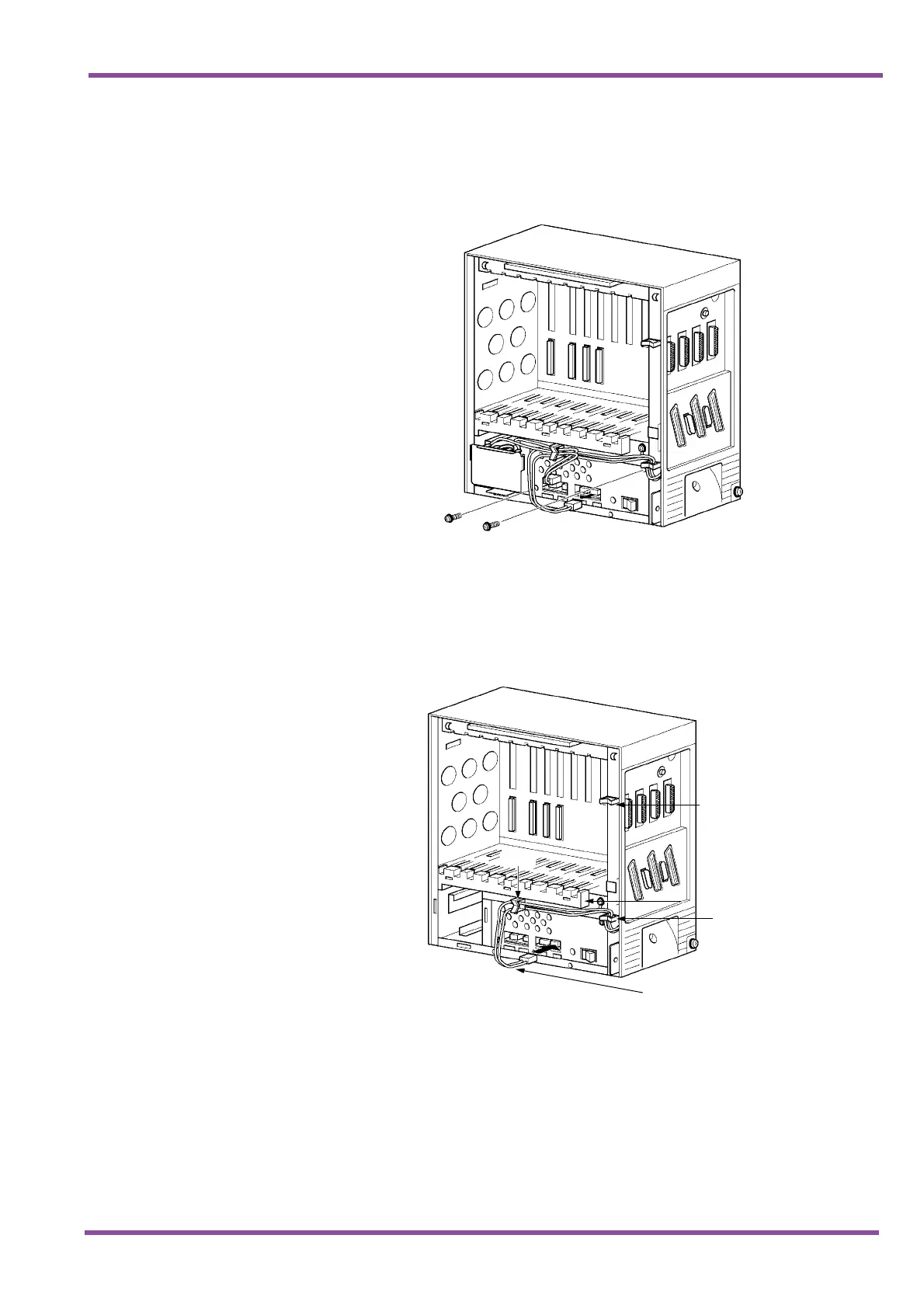

Figure 4-23 Mounting the PSU onto the KSU
Figure 4-24 Connecting the PSU Power Cable to the Basic KSU
Clamp
FG
Clamp
Power
Cla
