May 2001
System Hardware Manual 7 - 197
A6-324000-642-01 – Release 4.0
May 2001
3. Locate the AC adapter plug on the ancillary device
that is connected to the bottom of the Multiline
Terminal and plug in the AC adapter.
3.2 ADA-UA Unit (Ancillary Device Adapter)
Ancillary Device Adapters allow connection of a recording device to
DTU-type Multiline Terminals.
When installing an ADA-UA Unit, first connect the cables to the
ADA-UA Unit, set the dip switches, and then install the ADA-UA Unit
on the Multiline Terminal.
3.2.1 Installing an ADA-UA Unit on a Multiline Terminal
1. Unplug the telephone cord from the Multiline
Terminal.
2. Prepare Multiline Terminal for adapter installation.
Refer to Section 2 Preparing Multiline Terminal for
Adapter Installation.
3. Plug the ADA-UA Unit connector into the receptacle
connector on the back of the Multiline Terminal.
Snap the ADA-UA Unit into the hooks on the Multiline
Terminal to secure it.

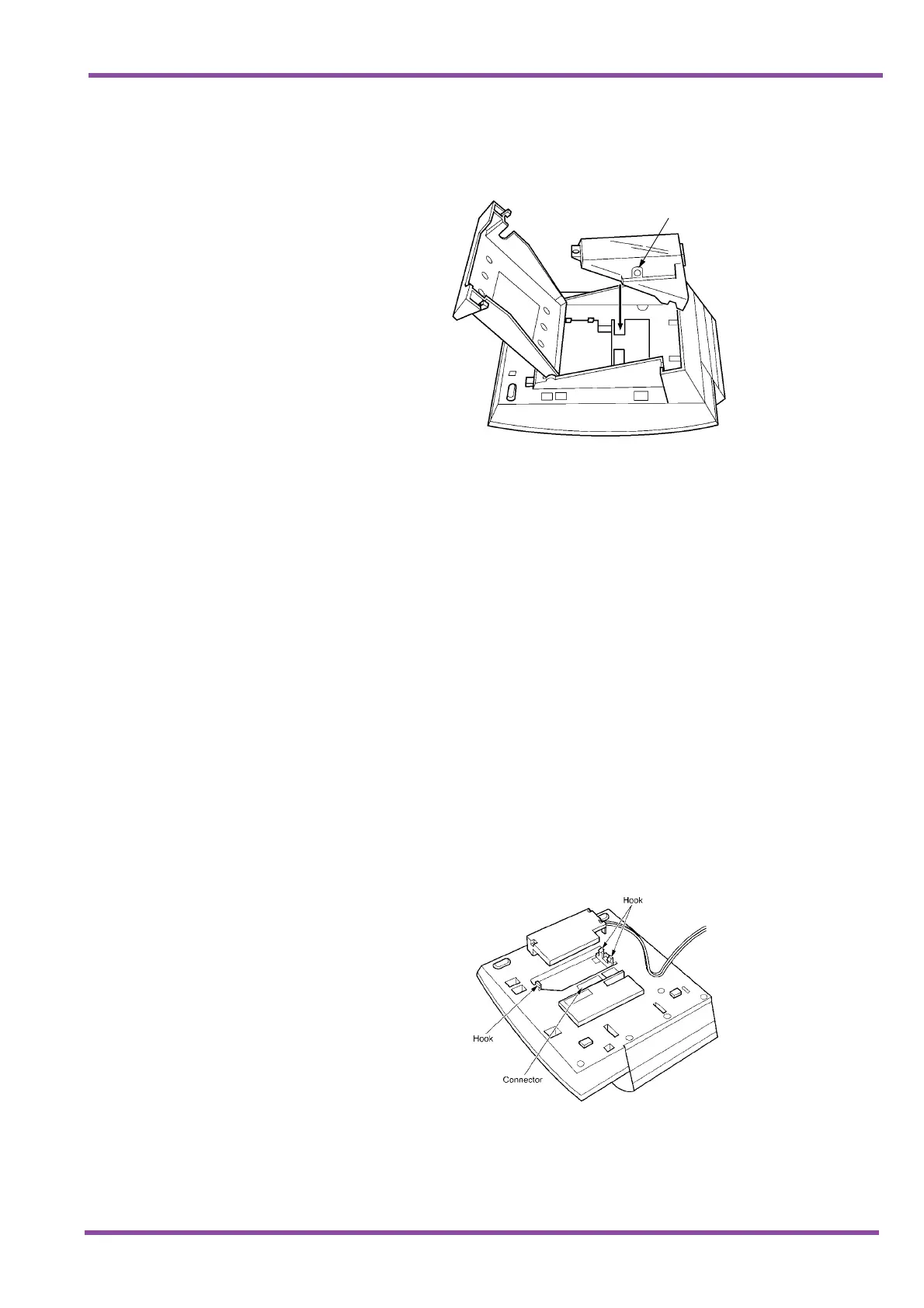

Figure 7-9 ACA-UA Unit Connection
Figure 7-10 Attaching the ADA-UA Unit
to the Multiline Terminal
AC Adapter Plug
To Next Page
