NEC Australia Pty Ltd Xen Master & Xen Axis
7 - 232 Installing Optional Equipment
A6-324000-642-01 – Release 4.0
May 2001
3.10.2 Wall Mounting using the Base Unit
1. Refer to Section 2 Preparing Multiline Terminal for
Adapter Installation, and perform Steps 1-5.
2. Press both sides of the base cover and turn it left to
remove it.
3. Rotate base cover 180° and install it again on the
Multiline Terminal.
4. Remove the shaded base plate knockout shown on
Figure 7-61 Removing the Knockout with nippers.
5. Assemble the base plate and base cover.
6. As illustrated in Figure 7-62 Attaching the Base Plate
to the Wall, attach the base plate and base cover
assembly (wide end down) to the posts on the locally
provided and installed wall plate. Place locally
provided screws in the nodes on the base plate and
secure the assembly to the wall.

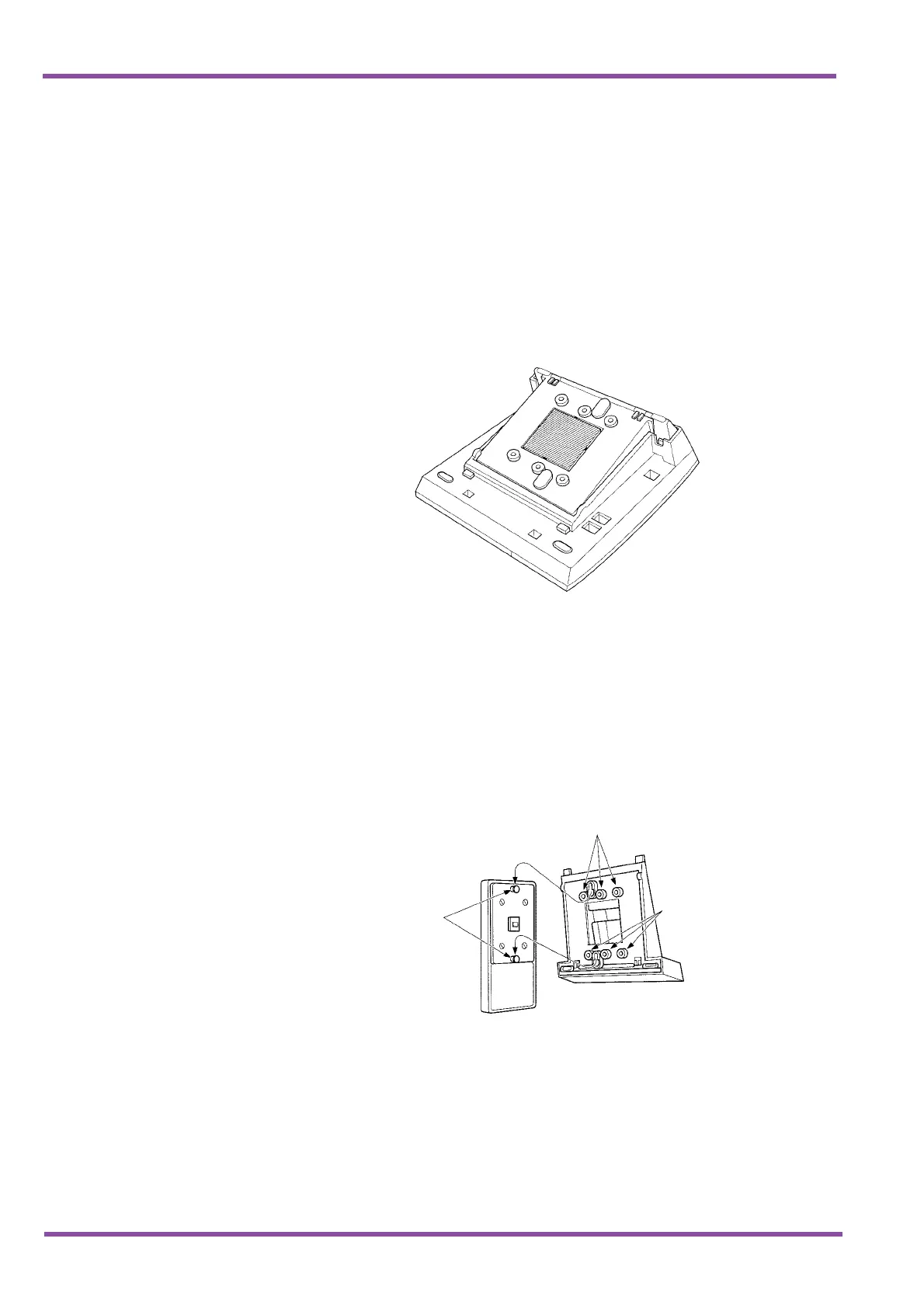

Figure 7-61 Removing the Knockout
Figure 7-62 Attaching the Base Plate to the Wall
Posts
Nodes
Nodes
To Next Page
