2. Using the two provided wood screws, attach the unit
to the wall. Close the unit and secure with the two
screws that were previously removed.
3.9 VDD-UA Unit (Voice/Data Unit for Digital Terminals)
This unit provides the station and LAN split for digital terminals. This
adaptor can be installed on any DTU-type Multiline Terminal. It is
used when LAN and telephone lines are incorporated into
one cable.
3.9.1 Installing a VDD-UA Unit on a Multiline Terminal
Refer to 3.4 CTA-UA Unit (Computer Telephony
Application) on page -207. The instructions for installing
these units are the same.

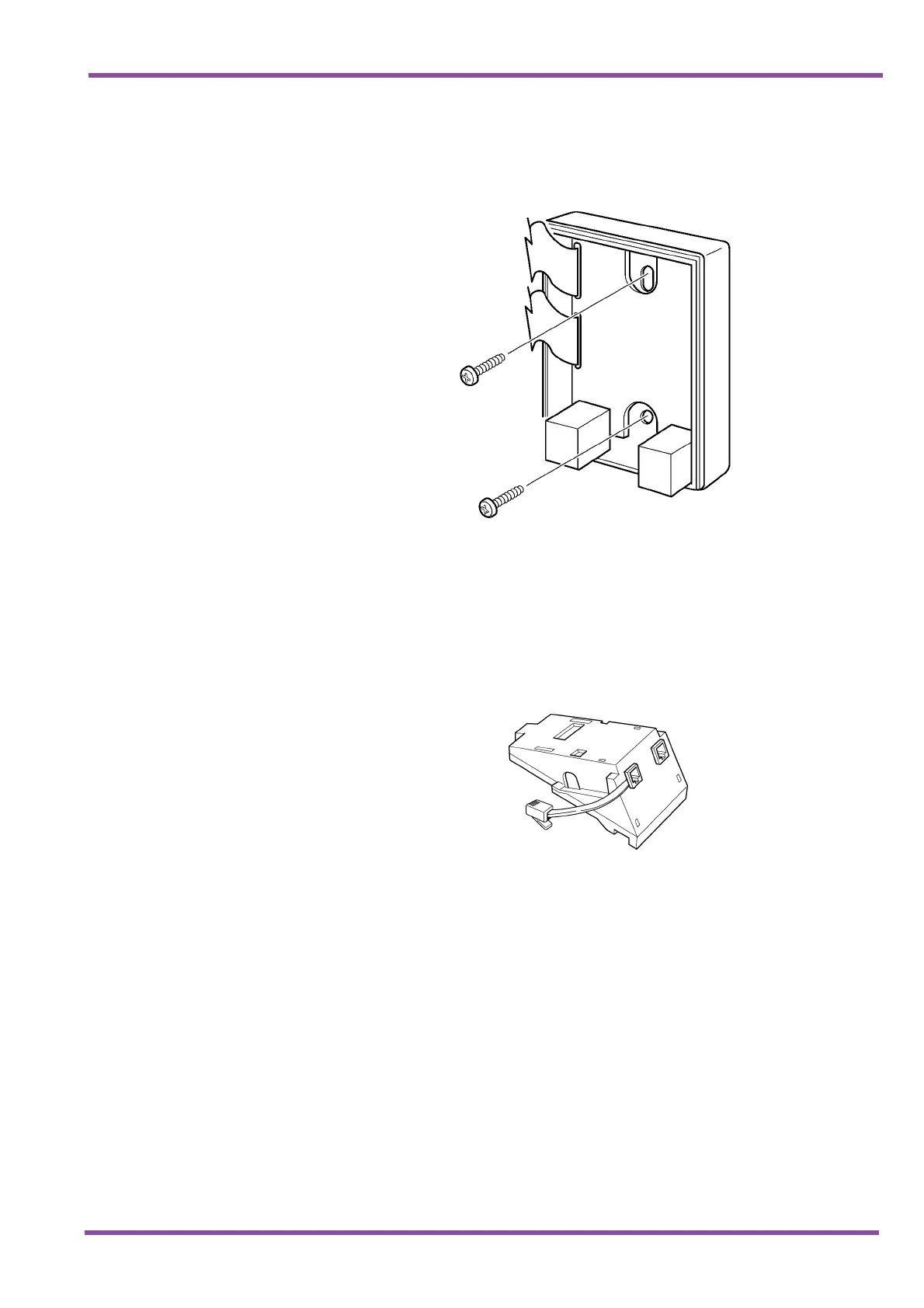

Figure 7-57 Attaching the SLT(1)-U13 ADP to the Wall
Figure 7-58 VDD-UA Unit
