NEC Xen Master System Hardware Manual

NEC Australia Pty Ltd Xen Master & Xen Axis
7 - 242 Installing Optional Equipment
A6-324000-642-01 – Release 4.0 May 2001
3.14.2 Connecting the Printer to the KSU
When using the SMDR charge control ability, connect the
printer to the KSU to allow the printing of the charge data.
Connect the printer to the serial port on the KSU with an
RS 232C straight cable. Use the COM 2 port to connect
the printer.

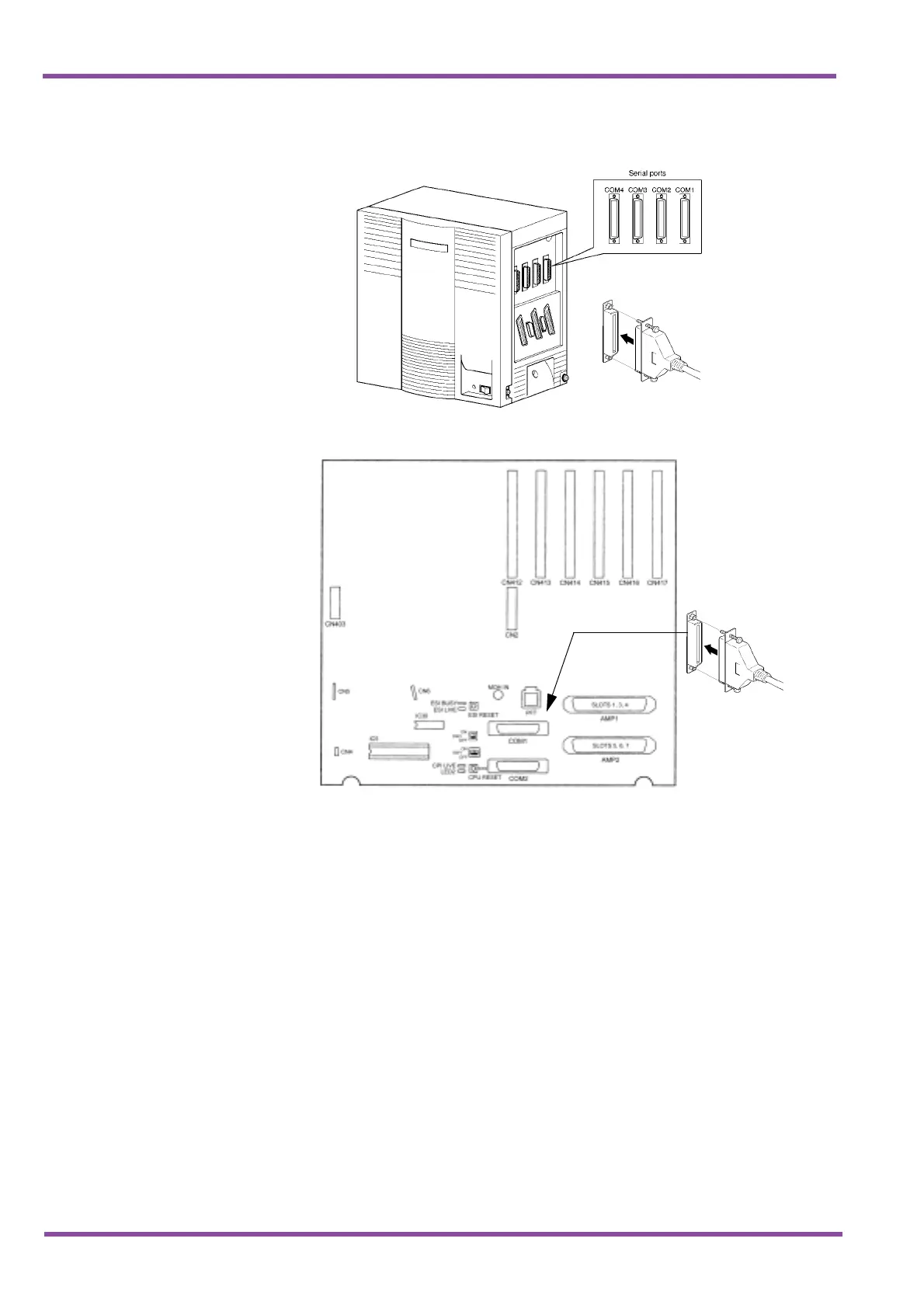

Figure 7-77 Connecting a PC to the KSU
Xen Axis
Xen Master
