NEC Australia Pty Ltd Xen Master & Xen Axis
6 - 186 Installing DTU-Type Multiline Terminals
A6-324000-642-01 – Release 4.0
May 2001
S
ECTION
4
C
ONNECTING
AN
A
TTENDANT
C
ONSOLE
TO
A
M
ULTILINE
T
ERMINAL
An Attendant Console can be attached to a Multiline Terminal using the
following procedures.
1. Turn the Multiline Terminal and the Attendant Console face down.
2. Using the joining plate provided with the Attendant Console, attach
the plate to the Multiline Terminal and the Attendant Console.
3. Connect the line cord and the AC adaptor to the indicated locations
on the bottom of the Attendant Console.

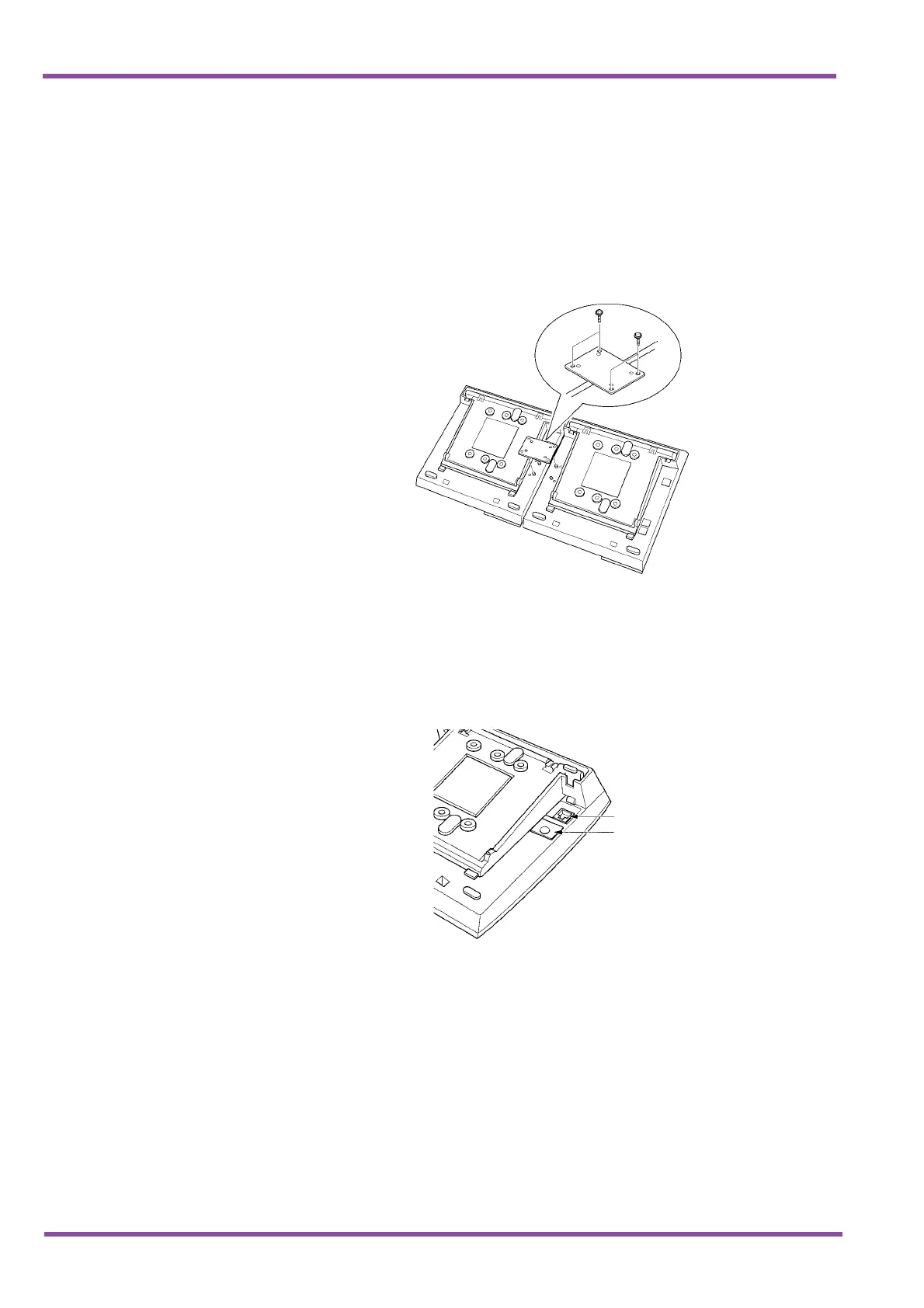

Figure 6-8 Connecting an Attendant Console to a Multiline Terminal
Figure 6-9 Connecting the Line Cord and AC adaptor when Installing an
Attendant Console
Attendant
Console
Multiline
Terminal
Line Cord Jack
AC adaptor Plug
To Next Page
