NEC Australia Pty Ltd Xen Master & Xen Axis
7 - 208 Installing Optional Equipment
A6-324000-642-01 – Release 4.0 May 2001
3.4.1 Installing the CTA-UA Unit
1. Unplug the telephone cord from the Multiline
Terminal.
2. Prepare Multiline Terminal for adapter installation.
Refer to Section 2 Preparing Multiline Terminal for
Adapter Installation.
3. Plug the unit into the receptacle connector inside the
base plate on the Multiline Terminal. Refer to Figure
7-16 Attaching the Unit to the Multiline Terminal.
4. Close the base plate.
3.4.2 Connecting the Cables on the CTA-UA Unit
Connect the RS-232C cable from the computer to the
connector on the CTA-UA Unit as shown in Figure 7-24
Connecting the RS-232C Cable to the CTA-UA Unit on the
Multiline Terminal.

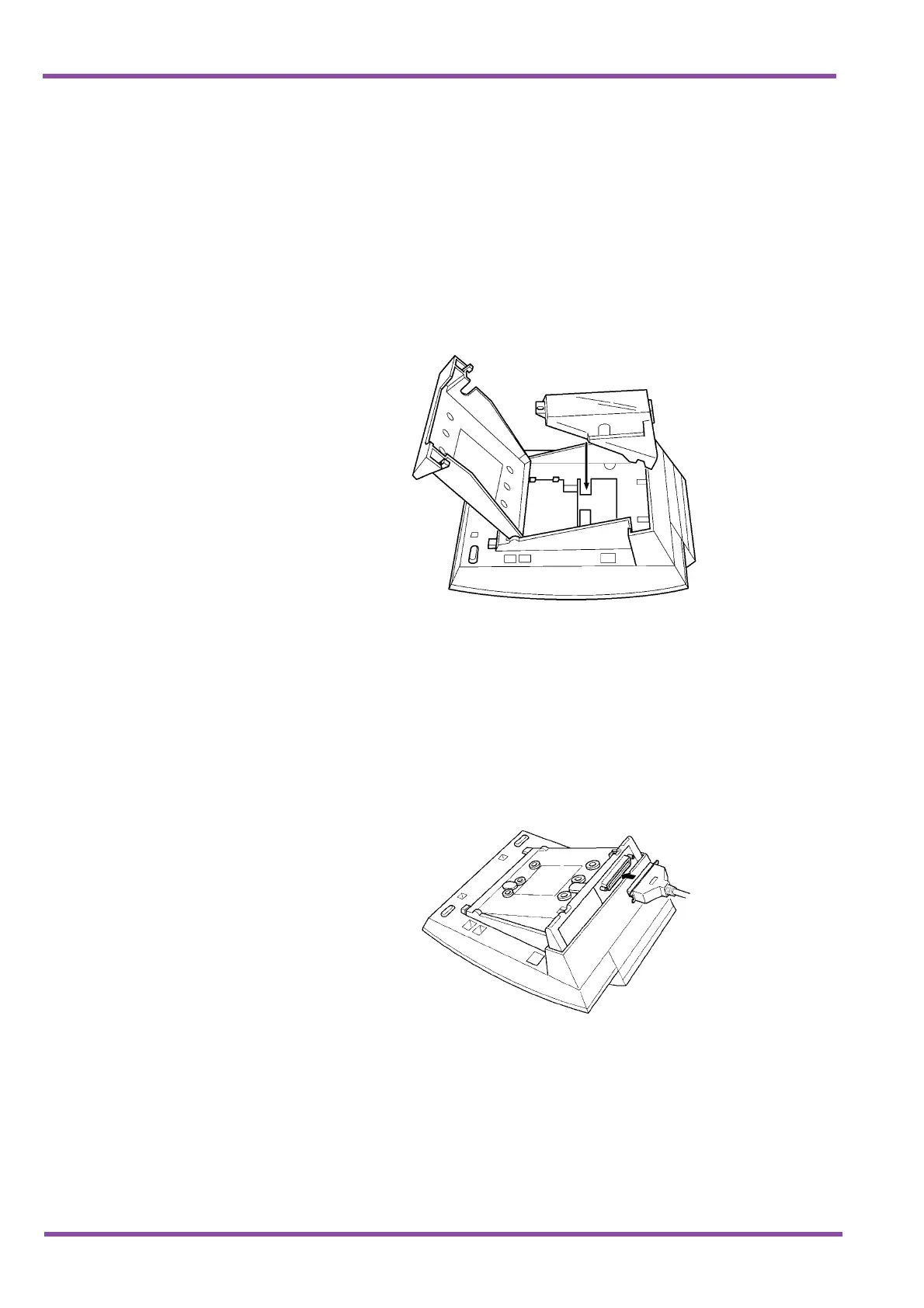

Figure 7-23 Attaching the Unit to the Multiline Terminal
Figure 7-24 Connecting the RS-232C Cable to the CTA-UA Unit on the Multiline
Terminal
