3.8 Cable Routing
3.8.1 Connecting the Battery Expansion Cables on the KSU
1. Using the DC Expansion Cable (included with the
EXP-U13 ETU) connect the BATTERY EXT on the
Basic KSU to the BATTERY EXT of the
Expansion KSU.

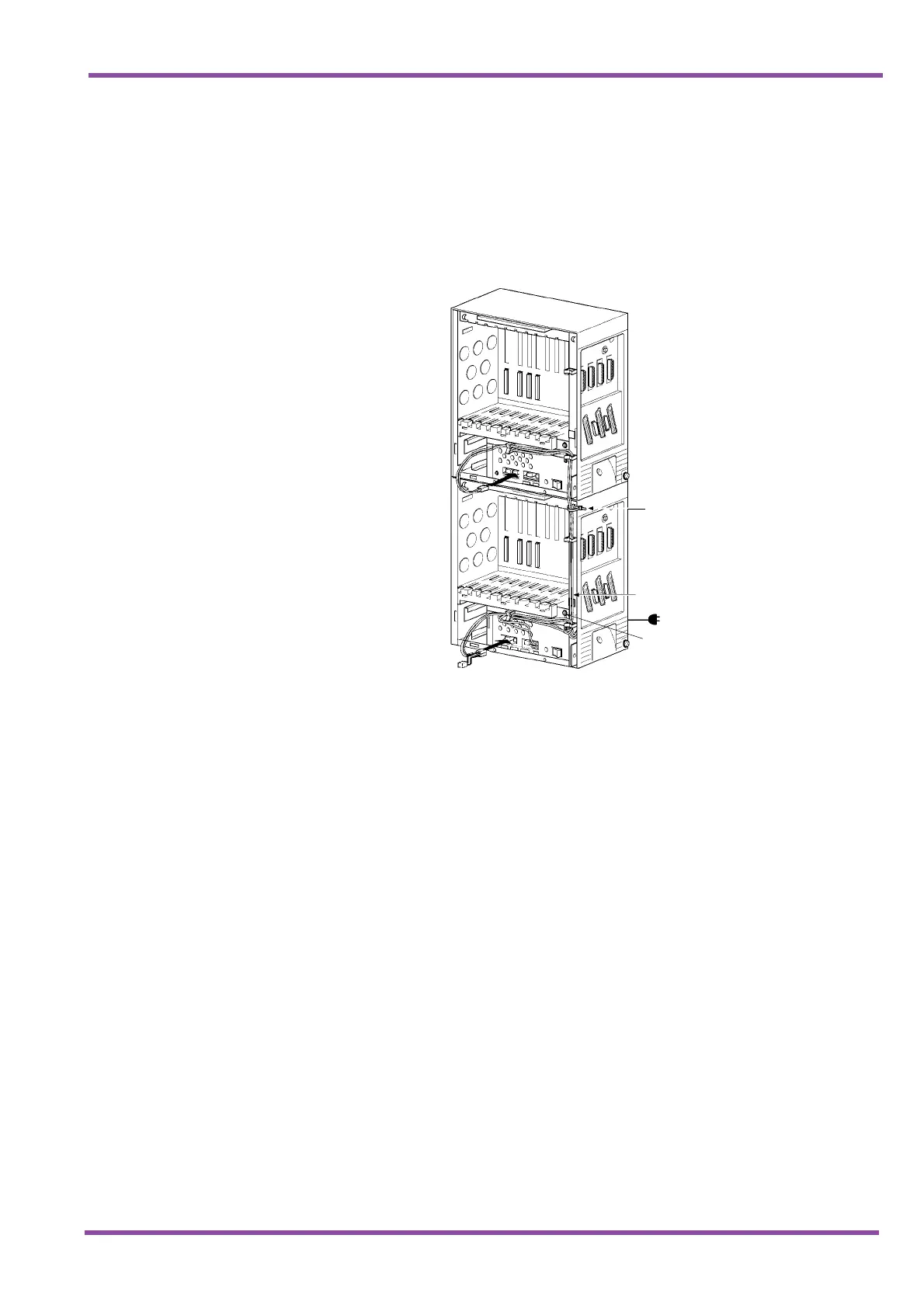

Figure 4-19 Connecting DC Expansion Cables
Tie Wrap
Expansion Cable
FG Terminal
Power Cable
