3. Attach the front cover (previously removed) to the front cover
extender using the two screws. Refer to Figure 4-7 Attaching
the Front Cover and Front Cover Extender.
4. Attach the front cover and the front cover extender to the KSU
by sliding the hooks (located on the top of the front extender
cover) into the slots and fasten using the provided screw. Refer
to Figure 4-8 Attaching the Front Cover and the Front Cover
Extender to the KSU.

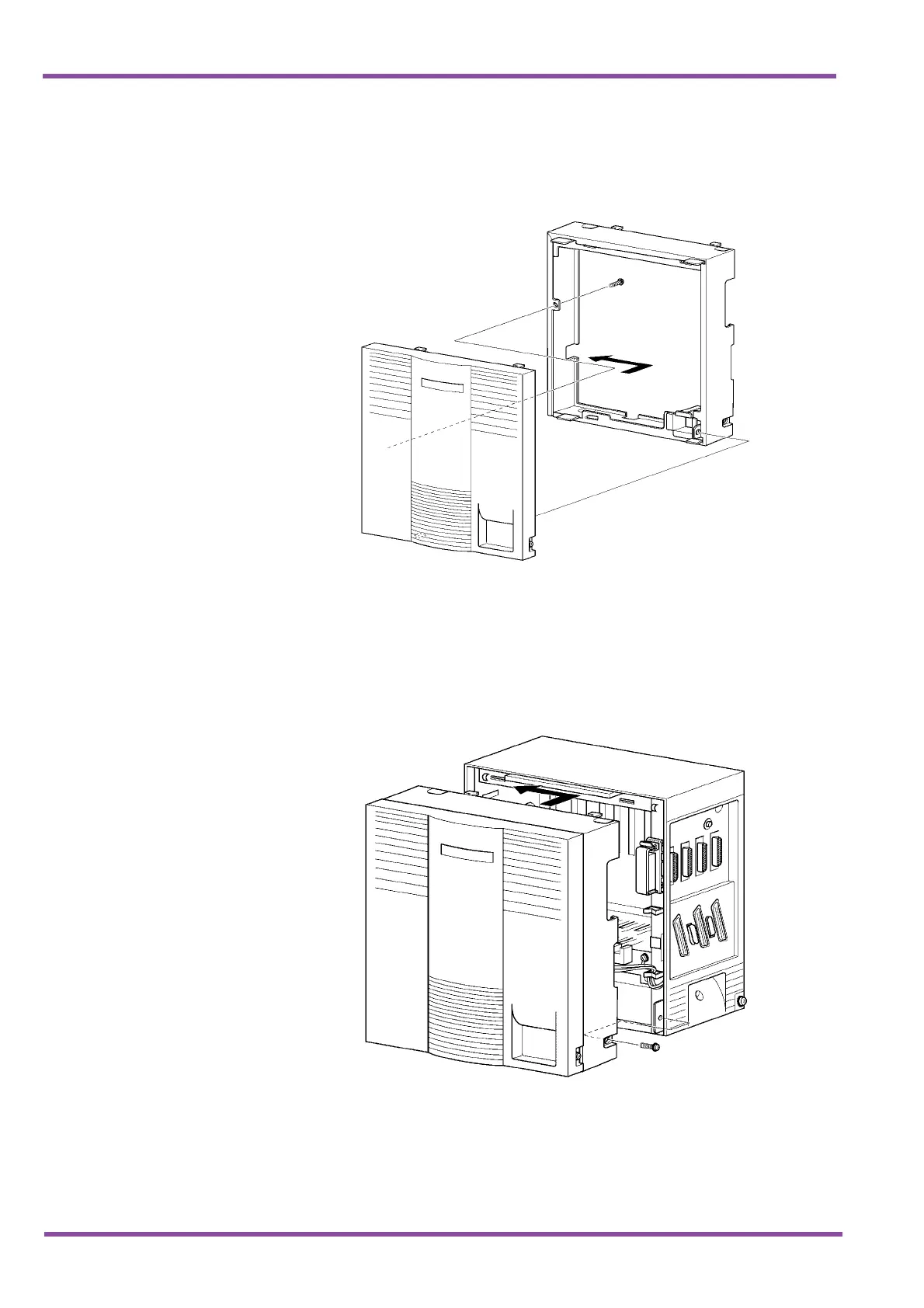

Figure 4-7 Attaching the Front Cover and Front Cover Extender
Figure 4-8 Attaching the Front Cover and the Front Cover Extender to the KSU
